“Republic Of Singapore Navy Stands Up New Maritime Security And Response Flotilla” –Naval News

Posted on January 27, 2021 by Chuck Hill

Note the graphic may be distorted here, click on it for a better view.

Naval News reports that the Singapore Navy has formed a new “Maritime Security and Response Flotilla.”

“As part of the restructured Maritime Security Command, the new MRSF is set up to better trackle evolving maritime threats that have grown in scale and complexity, particularly in the Singapore strait area. According to a recent French Navy report on worldwide maritime piracy and robbery, robbery is on the rise in South East Asia, particularly in the Straits of Singapore and Malacca.”

Aside from a pair of tugs, the primary assets of the new flotilla are four renovated and renamed Fearless Class patrol craft that will fill the function until a new class is completed (expected in 2026).

Perhaps most interesting, are the changes made to the vessels for their new role. These include enhanced communications equipment, a long range acoustic device and laser dazzler system, installation of a fender system, and modular ballistics protection–and a red racing stripe.

The Fearless Class patrol craft: Twelve vessels commissioned 1996-98. All out of service by the end of 2020, replaced by eight Littoral Missions Ships.

Displacement: 500 tons fl
Length: 55 m (180 ft)
Beam: 8.6 m (28.2 ft)
Draft: 2.2 m (7.2 ft)
Speed: 36 knots
Propulsion: 16,860 HP, two KaMeWa waterjets
Range 1,800@15 knots

Singapore also has a Police Coast Guard as part of its Police Force with patrol craft of up to 35 meters in length.

Something for the Coast Guard as “Navy Squeezing Costs Out of FFG(X) Program as Requirements Solidify”–USNI

Posted on January 23, 2019 by Chuck Hill

The US Naval Institute News Service has provided an update on the FFG(X) program, based on a Jan. 15, 2019 presentation at the Surface Navy Association Symposium, by Regan Campbell, Program Executive Office, Unmanned and Small Combatants, which provides both a projected lower unit cost approaching $800M for follow on units (not a lot more than the Coast Guard was paying for its National Security Cutters) and a list of minimal equipment to be included in each ship

There is one particular item on the list of equipment that may be significant for the Coast Guard, “57mm gun (with ALaMO)”. That means the “Advanced Low Cost Munition Ordnance” or ALaMO program to provide guided projectiles for the 57mm Mk110 gun is still on track. Apparently ALaMO uses the same guidance system developed for the Hyper-Velocity Round.

The FFG(X) will also share, in common with all the NSCs, the Mk160 Gun Fire Control System, and with the later NSCs, the Mk20 Electro-Optic Sensor System (Mods may be different). This means we can expect continued Navy support of these systems over the long-term.

Request for Proposal is to be issued Q4FY2019. Contract award is expected Q4FY2020.

I note there is still no image available for Huntington Ingalls proposal which may be based on the National Security Cutter.

Below is a list of equipment for the FFG(X) found on page three of the presentation. I can not claim to recognize all the acronyms. Interestingly there is space and weight reservation for a 150 kW Laser Weapon.

Guided Missile Frigate (FFG(X)) Capabilities

AW

3x3x3 fixed-face EASR (Enterprise Air Surveillance Radar)
Mk41 VLS (32 cell)
SM-2 Blk IIIC
ESSM Blk 2
21 cell RAM launcher (Rolling Airframe Missile)
UPX-29 IFF
CEC (Cooperative Engagement Capability)

EW/IO

SLQ-32(V)6 (SEWIP Blk II) w/ HGHS and Specific Emitter
Identification (SEI)
Spectral (Follow on to SSEE Inc F)
AOEW (on airborne asset)
SWAP-C reservation for SLQ-32C(V)7 (SEWIP Blk III Lite)
SWAP-C reservation for 150kw laser

WATERCRAFT

7m RHIB (x2)

SUW

57mm gun (with ALaMO)
Mk160 GFCS
Mk20 Mod 1EOSS
OTH fire control system
OTH 2x4 (T)/ 2x8 (Obj)
50 caliber machine guns
iStalker w/3600 coverage
NGSSR

AVIATION
Organic MH-60R (x1)
Organic MQ-8C (x1)
Secure & Traverse Aircraft Handling
System
Horizon Reference System
Night Vision Device Compatibility

ASW
AN/SQS-62 Variable Depth Sonar
or Low Band Hull Array
TB-37 MFTA w/ TACI
AN/SQQ-89(V)15
USW-DSS
AN/SLQ-61 Lightweight Tow or
SLQ-25 NIXIE
ADC (Torp CM)
Mk41 VLS supports VLA (Vertical Launch ASROC) for allwx stand-off ASW weapon
(future)
SVTT – Shipboard Torpedo
Launch (Obj)

C4I/ CMS
CANES
ICOP
Link-11/22
Link-16
LOS/STJ/JRE
HF/VHF/UHF LOS
UHF/SHF/EHF
SATCOM
NTCDL
Frigate Weapon
System (FWS)
Advanced Cyber
Design
GPNTS & ECDIS

Laser Icebreaker?

Posted on July 22, 2017 by Chuck Hill

Project 23550, Ivan Papanin class icebreaking patrol vessel, with towing capability and containerized cruise missiles.

The National Interest is reporting that the Russians are planning to use lasers as a way to facilitate icebreaking.

…. “Later this year, scientists aboard the Dixon, a Russian diesel-powered icebreaker operating in the White Sea, will begin testing of a 30-kilowatt ship-based laser, designed specifically for easing the movement of ships operating in the Arctic environment,” Sputnik News said. “The project involves experts from the Moscow-based Astrofizika Design Institute, with the assistance of St. Petersburg’s Arctic and Antarctic Research Institute.”

A Russian physicist told Russian media that the new laser is designed as an ice cutter rather than a weapon. “We’re talking about easing as much as possible navigation through northern regions. In addition, it’s necessary to test empirically calculations, create the system, measure energy consumption and calculate many other parameters. For the first stage this is enough.”

The author of the post may be a bit confused. He refers to,

More details are emerging about Russia’s trump card for control of the Arctic: laser-armed, nuclear-powered “combat icebreakers.”

But he refers to the Project 23550 (Ivan Papanin) class icebreaking patrol vessels which we talked about earlier, armed but relatively small (for an icebreaker) and definitely not nuclear powered icebreaking patrol ships with provision for mounting containerized cruise missiles.

The author seems to have assumed that the laser could also be used as a weapon although the mounting and targeting requirements for a laser weapon would be much different.

Despite the author’s apparent confusion, this is the first I have heard of using lasers to facilitate icebreaking. Using one to open a crack in the ice before the bow hits might be worthwhile. Whether it is even feasible ought to be something that could be determined mathematically.

Sounds like something worth looking at.

Laser Added to Mk38 Mod2

Posted on April 4, 2017 by Chuck Hill

Navy Recognition reports that BAE now offers a 60 kW Laser addition to the Mk38 mod2 gun mount currently on the Webber Class Fast Response Cutters and planned for the Offshore Patrol Cutter.

“The addition of a 60kW TLS would provide true selectable and scalable effects ranging from non-lethal to lethal. This would allow for new response options in both conventional and irregular conflicts.”

Note the laser on the USS Ponce is only 30 kW.

Late addition:

How it might be useful: It could be used in a less than lethal mode. It could probably be used for disabling fire against outboard motors with greater precision than a gun. It could be used to destroy UAS (drones) inside ports without worrying about where misses might land.

Coast Guard Denied Use of Laser Technology

Posted on May 4, 2016 by Chuck Hill

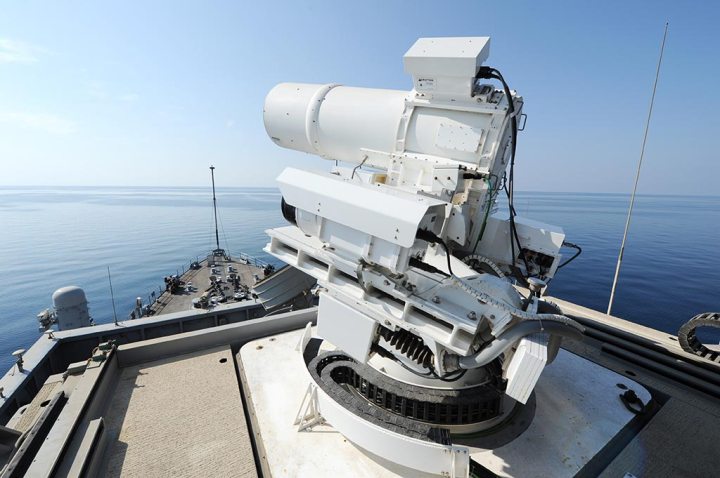

The Afloat Forward Staging Base (Interim) USS Ponce (ASB(I) 15) conducts an operational demonstration of the Office of Naval Research (ONR)-sponsored Laser Weapon System (LaWS) while deployed to the Arabian Gulf. U.S. Navy photo by John F. Williams

This Navy Times story is one of several I have seen that report Rep. Duncan Hunter’s (R-CA) displeasure that the Coast Guard is unable to use some of its laser equipment because of FDA regulation.

“The equipment in question is the Electro-Optical Sensor System and the PEQ-15, a laser sight with an illuminator. ESS is a turret installed on Coast Guard helicopters, with a laser illuminator that can enhance camera images, while PEQ-15 is a rifle sight with a laser illuminator. The Coast Guard is not allowed to use ESS at all, while PEQ-15 can be used on a low setting.”

Representative Hunter has done us a favor in bringing attention to the issue, but ultimately I think he will find that the FDA oversight requirement is based in law and Congress will have to change it.

There is, after all, a reason for regulating the use of lasers. We don’t like it when they are directed at our aircraft or at ships. We don’t want to blind people we are attempting to rescue. (Incidentally where is the FDA regulation of lasers in the hands of civilians?)

“Hunter wants to cut that red tape and allow the Coast Guard to certify its own laser systems, like the other military branches…”

That is all very well, but the Coast Guard probably does not have many laser experts who can do that, and we should not trust the word of our contractors. If Representative Hunter wants to introduce a bill to cut some of the read tape, by all means allow the Coast Guard to self certify if they develop the independent expertise to do that, but it would be more immediately useful if there was simply provision for DOD certification of Coast Guard equipment. This should include automatic application of DOD certification to any DOD type Coast Guard equipment used for the purpose for which it was certified.

“Lasers Belong at Sea”–DefenseMediaNetwork

Posted on January 6, 2016 by Chuck Hill

DefenseMediaNetwork has an interesting article about progress on weaponizing Lasers for use afloat. Some points that might be of particular interest to the Coast Guard were:

The Laser can be a less than lethal deterrent,.

“A laser offers scalable effects, from deter-and-dissuade to degrade or destroy. LaWS can address multiple threats using a range of escalating options, from non-lethal measures such as optical “dazzling” and disabling, up to lethal destruction of small attack boats and UAVs.”

The accompanying optics have other uses,

“The systems provide better high-resolution imagery than what existing shipboard EO/IR sensors provide now. With upgraded optics, a system like CLWS can bring targets as close as 1 kilometer or as far as 37 kilometers into clear focus. ‘The system enhances intelligence missions without engaging targets,’ …”

Laser Hazard–This is Getting Rediculous

Posted on December 5, 2015 by Chuck Hill

The Coast Guard has recently experience a rash of laser attacks.

Dec.1, an H-65 from Port Angeles. “A Coast Guard helicopter crew was forced to cut a training mission short after they were targeted by someone with a laser near Port Angeles Monday night…The MH-65 Dolphin helicopter crew was airborne when a laser was shined at them around 6:30 p.m, forcing the crew to abort the mission and return immediately to Air Station Port Angeles, where they landed safely.”

1 Dec. an H-65 from Traverse City. “On Monday at 8:30 p.m., a Coast Guard MH-65 helicopter with Coast Guard Air Station Traverse City, Michigan, was hit with a laser while flying in the vicinity of Lake Okeechobee, Florida. Crewmembers aboard the aircraft reported the laser came from land.”

3 Dec. “…a 45-foot motor lifeboat crew at Coast Guard Station Channel Islands that four of the members were struck twice with a laser while transiting near the Channel Islands Harbor entrance. Crewmembers reported that the laser came from shore and once they energized their blue law-enforcement light, the laser desisted.”

Fortunately there were apparently no injuries.

As noted in the one of the press releases, “Pointing a laser at an aircraft is a federal crime and a felony offense under Title 18, United States Code, Section 39A. If found guilty, offenders could be fined up to $250,000 and sentenced to five years in prison. ”

Don’t know what the punishment for pointing a laser at a boat crew is, but it should also be significant.
