Offshore Patrol Cutter Program Alternatives

Offshore Patrol Cutter port quarter

Note: I have had to revise some of my conclusions about when benchmarks would be achieved. The text below has been changed to reflect the correction.

I have been talking about the OPC for over nine years, and it is frustrating to see what appeared to be real progress toward impressive new ships come apart, but with the Offshore Patrol Cutter program in flux, perhaps it would be worthwhile to look at where we are, where do we want to go, and what the current restraints and limitations are. Maybe there is a better way.

As currently envisioned the last OPCs are not expected to be funded until FY2034 nor delivered until 2037. A lot can happen between now and then.

Where are we?

The current thinking is to provide contract relief for Eastern and allow them to build the first four ships. Meanwhile the Coast Guard will recompete a contract for OPC #5 with options for #6-15.

But even this is uncertain. Congress has 60 days from the announcement (11 Oct. 2019 to 10 Dec.?) to consider the proposed contract relief. If I interpret correctly, unless they take action to deny relief, construction will go ahead. That suggest that denial of contract relief is unlikely, but by no means, are we sure it will happen.

It seems likely we will get four OPCs from Eastern, but even that is uncertain. Really we have no assurance we will get any OPCs at all.

What do we need? What are the constraints?:

We should have begun replacing the WMECs we have now, 25 years ago, so the need is urgent. We can also be pretty sure we need more large cutters (those of over 1000 tons full load) than are currently planned.

Realistically we cannot expect great increases in either PC&I (Procurement, Construction, and Improvement) or operating budget. That means, hopefully, the Coast Guard will get around the $2B/year PC&I successive Commandants have been saying we will need, but probably little or no more, and further, that we should not expect significant personnel increases.

The current plan will provide fewer large cutters than we have now. Eleven NSCs are replacing twelve WHECs and 25 OPCs are expected to replace 29 WMECs. That is 36 to replace 41. In fact if you look back a little further the Coast Guard had even more large ships. Editions of Combat Fleets of the World for the years indicated show that in 1990/91 we had 50 and in 2000/2001 there were 44. The Fleet Mix Study conducted more than a decade ago indicated we actually need an even larger fleet.

The need to rapidly replace the existing WMECs and ultimately expand the fleet, within the constraints of budget and manpower are in direct conflict, particularly when the cutters have become bigger and more expensive and their crews size has, with few exceptions increased.

Replace the WMECs we have ASAP:

The WMECs we have need to be replaced as soon as possible. If the recompete goes as expected, the fourteenth OPC will not replace the last 210 until fourth quarter FY2032. That 210 will be over 63 years old. The last 270 decommissioned will be at least 48 years old. We can only expect that these vessels will have increasingly frequent major machinery casualties. The high number of major casualties that were experienced when the Coast Guard responded to the earthquake in Haiti is only a taste of what we can expect in the future.

More Cutters:

The Fleet Mix Study of 2009 showed we needed 66 large cutters to fully accomplish all the Coast Guard’s statutory missions. A 2011 revision reduced the total to 58.

That number was perhaps artificially low because it assumed the “Crew Rotation Concept” would be applied to all National Security Cutters and Offshore Patrol Cutters, allowing an unrealistically high 225 days away from home. We have, to some extent, seen Webber class step up to perform some of these missions, but the need for more large ships is still apparent.

Unfortunately we have not updated the Fleet mix study based on more recent experience with the NSC and FRC. We really need to do that so that we can make more informed decisions and present a better case to Congress.

PC&I Budget

The FY2019 Procurement, Construction, and Improvements (PC&I) budget was $2,248.26M, of that less than $1.6M went to ship construction and improvement. It is unlikely we will see significantly larger budgets devoted to ship construction, and this includes funding for Polar Security Cutter, in service sustainment, and in the out years WPB replacement, and possibly new buoy tenders. We don’t unfortunately have any comprehensive long term shipbuilding plan that looks beyond five years.

Operating Budget/Crew Costs

Personnel costs are particularly important in overall lifecycle cost calculations. These come out of the operating budget which has actually shrunk in real terms.

The fleet that is being replaced (12 WHECs, 29 WMECs, and 44 WPBs) and the projected fleet, as currently planned (11 NSCs, 25 OPCs, and 64 FRCs) have almost the same total crew count, but it is doing so with the five fewer large cutters. The more numerous Webber class cutters have a larger crew than the 110 foot WPBs, 24 vice 16. Ultimately I expect 64 FRC to replace the 44 WPB110s for an increase of 832 billets. The OPCs will apparently have a crew of about 100, about  the same as that of the 270s, but about 25 more than are currently assigned to 210 foot WMECs. Replacing 14 of 210s with OPCs will add about 350 billets. Only the National Security Cutters have smaller crews than the ships they have replaced. My Combat Fleets of the World shows the crew of the NSCs to be 122 and that of the 378s to be 177, eleven NSCs compared to twelve WHEC378s would be decrease of 782 billets.

By my count the Legacy fleet of 85 vessels (12 WMECs when the NSCs started building, 28 WMECs when the OPCs started building, and 44 WPBs when the FRCs started building) required 5,349 billets. (The nominal fleet the program of record supposedly replaced included 29 WMECs and 49 WPBs, would have included another 179 billets or 5,528.) The currently planned fleet of 100 vessels (11 NSCs, 25 OPCs, and 64 FRCs) requires 5,378 billets.

If we are to increase the number of larger cutters while leaving the total number of billets little changed, we would need to trade off some of the OPCs for more numerous vessels with smaller crews.

The Alternatives:

The first question is, is the OPC, as currently designed, the vessel we still want?

While I don’t think it will happen, in view of the increasing likelihood of a great power conflict, the wisest thing that could happen, is that we replace the OPCs with what ever design the Navy chooses for the new FFG. That would take a massive infusion of cash and manpower, not going to happen.

If we reopen the competition to include other designs built to the same requirements we not only complicate logistics and training in the future, we also probably delay the decision process another year. Looks like the Coast Guard is trying to avoid that. They have a design they like, and once production is underway, it will certainly be cheaper than the NSCs.

Do we want a ship built to different requirements, maybe something like my proposed Cutter X? The Coast Guard came up with the requirements for the OPC, so I have to assume that for at least some missions, we need ships that meet those requirements. (I understand that the first two OPCs will go to Kodiak.) On the other hand, several years ago, Congress asked the Coast Guard if there weren’t missions or geographic areas that did not require ability to conduct helicopter and boat operations in such severe conditions?  That question was apparently never answered, as far as I know, but we know for a fact that less capable ships have been performing these missions for decades. We see it in the way the fleet was distributed. Most 378s went to the Pacific where long distances and ALPAT demanded great range and seakeeping. 210s generally went to the West Coast and SE and Gulf coasts where the weather tended to be more benign. 270s tended to based further North in the Atlantic since they were more seaworthy than the 210, if not as capable as the 378s.

We have a mixed fleet of WMECs, perhaps their replacements should be a mixed fleet as well, allowing the more robust OPCs to be used where those characteristics are most likely to be needed, while we also build more smaller, cheaper ship to provide the numbers we need. As before, I will refer to this class, slotted between the OPCs and the Webber class WPCs as Cutter X.

Considering Cutter X, to be significantly cheaper than the OPCs and have a significantly smaller crew, we probably should look to designs that are half the size of the OPC or smaller. That does not mean these ships will be small. In fact they could be larger than any of the existing WMECs, and more than twice the size of the 210s. The 327 foot Treasury class WHECs would qualify in terms of size. Average procurement cost for the OPCs, before the need for contract relief surfaced was $421M per ship. Cutter X should cost less than $250M. Actually it should be possible to build them for less than $200M.

I have pointed to a number of designs that might be considered, but to offer a concrete example, consider the Fassmer OPV-80 design used by the German Police Coast Guard, and the Navies of Chile, Colombia, and Honduras.  It can operate and hangar a medium sized helicopter, has two boats on davits and a third larger boat on a stern ramp, and can be armed with a medium caliber gun up to 76mm. The German versions are getting Bofors 57mm guns like those used by the Coast Guard. There is space for two containers under the flight deck. Its crew is 40 or less.

Some of this class have been ice strengthened.

Chilean OPV84, Cabo Odger

A possible program:

I will offer what I believe to be a possible alternative to the current plan with the objective of replacing the aging fleet as rapidly as possible, ultimately increasing the number of larger patrol ships in the fleet and keeping the budget and manpower similar to what we have been experiencing.

In looking at an alternative program there a number of milestones that might be considered.

  • When would we replace all the 210s? At this point we should have at least 26 new generation large cutters (replacing 12 WHECs and 14 WMEC210s). This is currently planned to occur in 2032.
  • When would we get to 36 new generation large cutters currently planned? Now FY2037.
  • What kind of fleet will we have at the end of FY2037? Current plan 11 NSCs and 25 OPCs.

The proposal is in three parts:

  • Proceed with the OPC program as currently envisioned funding one OPC per year through FY2025. In FY2026 and 2027, fund one, rather than two, and halt the program at ten ship with the last delivered in 2030.
  • Continue to fund one NSC a year through FY2023, this will give us 15 NSCs, with the last delivered in 2026.
  • Start a program for Cutter X in FY2021. Fund construction for the first ship in FY2024, then two ships in FY2025 to 2027, then three ships a year in FY 2028 to 2034 (the last year for the current plan). This will provide a total of 28 ships with the last delivered FY2037.

This breaks down to:

  • FY2020 to FY2023 we would fund one NSC and one OPC,
  • FY2024 we fund one OPC and the first Cutter X.
  • FY2025 to FY2027 we build one OPC and two Cutter X (which should cost the same as two OPCs).
  • From FY2028 through 2034 we fund three Cutter X per year (which should cost less than two OPCs).

This is how the benchmarks break down:

  • When would we replace all the 210s? At this point we should have at least 26 new generation large cutters (replacing 12 WHECs and 14 WMEC210s). This is currently planned to occur in 2032. In 2028, 15 NSCs, 8 OPCs, three Cutter X (plus 13 WMEC270)
  • When would we get to 36 new generation large cutters currently planned? Now FY2037. In 2032, by the end of the year, 38 ships, 15 NSCs, 10 OPCs, 13 cutter X.
  • What kind of fleet will we have at the end of FY2037? Current plan 11 NSCs and 25 OPCs. At the end of FY 2037, 53 ships, 15 NSCs, 10 OPCs, 28 cutter X.

At the end of FY2037 we will have effectively replaced the 12 WHEC and the 13 WMEC270s with 25 more capable NSCs and OPCs. The 14 WMEC210 and Alex Haley will have been replace by Cutter X and 13 additional large cutters added to the fleet, 17 more than the current plan.

Even if we did not fund NSCs 13-15, it would only take one additional year to replace the 210s and to reach 36 new generation ships. and we would still have 50 ships at the end of FY2037.

We really need to do a new Fleet Mix Study and we need to follow it up with a long term shipbuilding plan, something Congress has been asking for for years.

Sea-Air-Space 2019 Virtual Tour

Like most of you I did not make it to the Navy League’s 2019 Sea-Air-Space Exposition, so I have found some YouTube reports that can at least provide some of the information passed along at the event. The descriptions below each video are from the YouTube description.

Day 1 video coverage at the Sea Air Space 2019 exposition. In this video we cover:
– Boeing MQ-25 Stingray aerial refueling drone with Rear Admiral Corey
– Future USVs and XLUUV/Orca programs with Captain Pete Small
– Austal USA new range of medium and large size USVs
Textron Systems CUSV with surface warfare payload
– ST Engineering range of USVs

Day 2 video coverage at the Sea Air Space 2019 exposition. In this video we cover:
– Raytheon SPY-6 radar
– Raytheon / Kongsberg NSM for USMC
– Northrop Grumman PGK for naval 5 Inch and 155mm guns
– Lockheed Martin Freedom-class lethality and survivability upgrade
– Lockheed Martin FFG(X)
– Navantia / BIW FFG(X)

Day 3 video coverage at the Sea Air Space 2019 exposition. Washington-based naval expert Chris Cavas is our guest speaker for this third and final day at Sea Air Space 2019. Cavas covers the follow topics:
– Bell V-247 Vigilant VTOL tilt-rotor UAV in U.S. Navy configuration
– Austal USA USV concepts
– Austal USA FFG(X) Frigate
– Fincantieri FFG(X) Frigate
– GD Bath Iron Works FFG(X) Frigate
– Lockheed Martin Type 26 CSC
– Lockheed Martin hypervelocity missile
– Mic drop

Surface Navy Association 2019 –Virtual Attendance

Like many of you, I was unable to attend the Surface Navy Association Conference, but I did find a number of videos which may provide some of the information that would have been available there. The Coast Guard Commandant had been scheduled to speak but cancelled, apparently in response to the partial government shutdown.

I have provided three videos, each about ten minutes, that may be of general interest, and links to four others, typically 20-25 minutes. The descriptions are from their respective YouTube pages.

The second and third videos have specific Coast Guard content, which I have identified by bold typeface with the beginning time in parenthesis. Some of the other equipment may have Coast Guard applications in the future.

Day 1 video coverage at SNA 2019, the Surface Navy Association’s national symposium. In this video we cover:
– Austal latest frigate design for FFG(X)
– Raytheon DART Variable Depth Sonar (VDS)
– Raytheon / Kongsberg Naval Strike Missile (NSM)
– Lockheed Martin Long Range Anti Ship Missile (LRASM)

Day 2 video coverage at SNA 2019, the Surface Navy Association’s national symposium.
In this video we cover:
– Fincantieri Marine Group FREMM frigate design for FFG(X)
– General Dynamics NASSCO John Lewis-class T-AO (New Oiler)
– Raytheon SM-2 restart
– Raytheon SM-3
– Leonardo DRS Hybrid Electric Drive for U.S. Coast Guard’s Offshore Patrol Cutter (OPC) (time 11:10)

Day 3 video coverage at SNA 2019, the Surface Navy Association’s national symposium. In this video we cover:
– Atlas North America’s solutions for mine counter measures, harbor security and unmanned surface vessels
– Lockheed Martin Canadian Surface Combatant (Type 26 Frigate, Canada’s Combat Ship Team)
Insitu ScanEagle and Integrator UAS (time 4:30)
– Raytheon SPY-6 and EASR radar programs

NAVSEA’s Moore on Improving Ship Repair, McCain & Fitzgerald, Ford, LCS

Vice Adm. Tom Moore, USN, the commander of the Naval Sea Systems Command, discusses US Navy efforts to increase public and private ship repair capabilities, lessons learned from repairing USS John S. McCain and Fitzgerald, the new Ford-class aircraft carrier, getting the Littoral Combat Ship on regular deployments and more with Defense & Aerospace Report Editor Vago Muradian at the Surface Navy Association annual conference and tradeshow in Northern Virginia.

GE Marine’s Awiszus on LM2500 Engine Outlook, Future Shipboard Power

George Awiszus, military marketing director of GE Marine, discusses the outlook for the company’s LM2500 engine that drives warships in more than 30 nations and the future of shipboard power with Defense & Aerospace Report Editor Vago Muradian at the Surface Navy Association’s annual conference and tradeshow in Northern Virginia.

US Navy’s Moran on Improving the Surface Force, Culture, Ship Repair & Information Sharing

Adm. Bill Moran, USN, the vice chief of naval operations, discusses dialogue with China, improving the surface force in the wake of 2017’s deadly accidents, refining Navy culture, increasing ship repair capabilities, harnessing data, improving information sharing across the force and the new Design for Seapower 2.0 with Defense & Aerospace Report Editor Vago Muradian at the Surface Navy Association’s annual conference and tradeshow in Northern Virginia.

US Navy’s Coffman on New Expeditionary Warfighting Concepts, Organizations, Unmanned Ships

Maj. Gen. David “Stretch” Coffman, USMC, the US Navy’s director of expeditionary warfare (N95), discusses new expeditionary warfighting concepts, the recent deployment of Littoral Combat Group 1 — composed of USS Wayne E Meyer (DDG-108) and USS Somerset (LPD-25) — to South America, new formations to replace the current Amphibious Ready Group and Marine Expeditionary Unit, unmanned ships, the performance of the F-35B Lightning II and more with Defense & Aerospace Report Editor Vago Muradian.

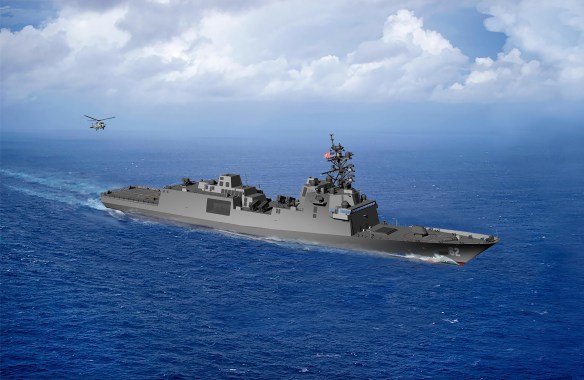

Something for the Coast Guard as “Navy Squeezing Costs Out of FFG(X) Program as Requirements Solidify”–USNI


The US Naval Institute News Service has provided an update on the FFG(X) program, based on a Jan. 15, 2019 presentation at the Surface Navy Association Symposium, by Regan Campbell, Program Executive Office, Unmanned and Small Combatants, which provides both a projected lower unit cost approaching $800M for follow on units (not a lot more than the Coast Guard was paying for its National Security Cutters) and a list of minimal equipment to be included in each ship

There is one particular item on the list of equipment that may be significant for the Coast Guard, “57mm gun (with ALaMO)”. That means the Advanced Low Cost Munition Ordnance” or ALaMO program to provide guided projectiles for the 57mm Mk110 gun is still on track. Apparently ALaMO uses the same guidance system developed for the Hyper-Velocity Round

The FFG(X) will also share, in common with all the NSCs, the Mk160 Gun Fire Control System, and with the later NSCs, the Mk20 Electro-Optic Sensor System (Mods may be different). This means we can expect continued Navy support of these systems over the long-term.

Request for Proposal is to be issued Q4FY2019. Contract award is expected Q4FY2020.

I note there is still no image available for Huntington Ingalls proposal which may be based on the National Security Cutter.

Below is a list of equipment for the FFG(X) found on page three of the presentation. I can not claim to recognize all the acronyms. Interestingly there is space and weight reservation for a 150 kW Laser Weapon.

Guided Missile Frigate (FFG(X)) Capabilities

AW

3x3x3 fixed-face EASR (Enterprise Air Surveillance Radar)
Mk41 VLS (32 cell)
SM-2 Blk IIIC
ESSM Blk 2
21 cell RAM launcher (Rolling Airframe Missile)
UPX-29 IFF
CEC (Cooperative Engagement Capability)

EW/IO

SLQ-32(V)6 (SEWIP Blk II) w/ HGHS and Specific Emitter
Identification (SEI)
Spectral (Follow on to SSEE Inc F)
AOEW (on airborne asset)
SWAP-C reservation for SLQ-32C(V)7 (SEWIP Blk III Lite)
SWAP-C reservation for 150kw laser

WATERCRAFT

7m RHIB (x2)

SUW

57mm gun (with ALaMO)
Mk160 GFCS
Mk20 Mod 1EOSS
OTH fire control system
OTH 2x4 (T)/ 2x8 (Obj)
50 caliber machine guns
iStalker w/3600 coverage
NGSSR

AVIATION
Organic MH-60R (x1)
Organic MQ-8C (x1)
Secure & Traverse Aircraft Handling
System
Horizon Reference System
Night Vision Device Compatibility

ASW
AN/SQS-62 Variable Depth Sonar
or Low Band Hull Array
TB-37 MFTA w/ TACI
AN/SQQ-89(V)15
USW-DSS
AN/SLQ-61 Lightweight Tow or
SLQ-25 NIXIE
ADC (Torp CM)
Mk41 VLS supports VLA (Vertical Launch ASROC) for allwx stand-off ASW weapon
(future)
SVTT – Shipboard Torpedo
Launch (Obj)

C4I/ CMS
CANES
ICOP
Link-11/22
Link-16
LOS/STJ/JRE
HF/VHF/UHF LOS
UHF/SHF/EHF
SATCOM
NTCDL
Frigate Weapon
System (FWS)
Advanced Cyber
Design
GPNTS & ECDIS
