“USCGC Oliver Henry (WPC 1140) concludes Operation Blue Pacific expeditionary patrol” –Forces Micronesia/Sector Guam and What It Says About Cutter X

Posted on by
7

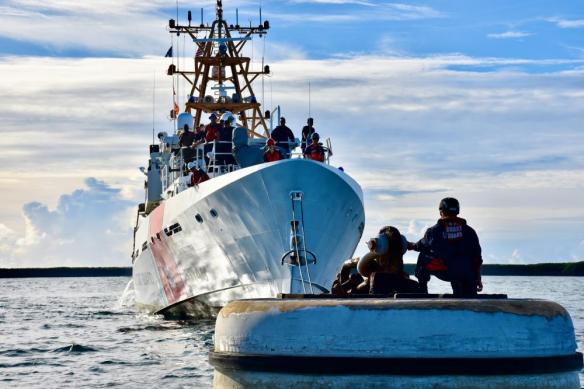

The Sentinel-class fast response cutter USCGC Oliver Henry (WPC 1140) accesses the mooring ball in Apra Harbor Sept. 18, 2022, following more than 16,000 nautical mile patrol through Oceania. The U.S. Coast Guard is conducting a routine deployment in Oceania as part of Operation Blue Pacific, working alongside Allies, building maritime domain awareness, and sharing best practices with partner nation navies and coast guards. Op Blue Pacific is an overarching multi-mission U.S. Coast Guard endeavor promoting security, safety, sovereignty, and economic prosperity in Oceania while strengthening relationships with our regional partners. (U.S. Coast Guard photo Petty Officer 2nd Class Sean Ray Blas)

Below is a press release marking the end of an unusual patrol. We have seen several earlier press releases.

This press release gives us a bit more insight into what it took to make the patrol possible.

The Crew:

Everything I had seen earlier indicated Webber class had a crew of 24, but we have this,

“,,,with a crew of 25 and a lieutenant commanding officer”

The crew was also augmented.

“Guam’s Maintenance Assistance Team/Asset Material Manager leveraged current personnel to fill billet gaps….The Oliver Henry, which has no intrinsic medical personnel, also brought several folks aboard, including a corpsman from the U.S. Navy and a linguist from the U.S. Marine Corps…”We had HS2 Edge from HSWL Juneau and HM3 Hardnett from Naval Hospital Guam, who provided a higher level of care on board as we transited over 8,000 nautical miles down Australia. We also brought Lance Cpl. Mabrie from Hawaii, our Korean linguist aboard…We also brought MK2 Blas and YN2 Blas from Guam, who provided extra help for maintenance, photography, and administration while we were underway.”

Support: It did require something beyond routine parts supply.

“Working with U.S. Coast Guard Base Honolulu ensured the short notice delivery of $100,000 in mission-critical parts to the ship while deployed.”

Lessons Learned:

This patrol once again demonstrated that the Webber class are exceeding our expectations, but the lessons may be more generally applicable.

It demonstrated that a ship with a crew of less than 30, much less than half that of our smallest WMECs (75 for the Reliance class), can usefully deploy and perform almost anywhere on earth, limited only by the seaworthiness of the cutter. That is not to say that a larger crew does not provide greater resiliance and opportunities to train junior personnel, but it does provide a proven minimum crew for a similarly equipped cutter, regardless of size. To this size crew we can consider the benefits of adding additional personnel for increased redundancy, self-sufficiency, resilience, damage control, training of junior personnel and additional capabilities like operating helicopters, underway replenishment, additional sensors, boats, or weapons, etc.

I think it argues for a class of cutter sized between the Webber class and the Offshore Patrol Cutters that could increase the number of more seaworthy large cutters beyond the 36 planned. Cutters with greater endurance, two boats, a flight deck, and a hangar for helicopter and/or UAS. I think we could do all that, with a crew of 50 or less, Cutter X.

Families greet the crew of the Sentinel-class fast response cutter USCGC Oliver Henry (WPC 1140) as they return to homeport in Apra Harbor Sept. 19, 2022, following a 43-day patrol across Oceania. The U.S. Coast Guard is conducting a routine deployment in Oceania as part of Operation Blue Pacific, working alongside Allies, building maritime domain awareness, and sharing best practices with partner nation navies and coast guards. Op Blue Pacific is an overarching multi-mission U.S. Coast Guard endeavor promoting security, safety, sovereignty, and economic prosperity in Oceania while strengthening relationships with our regional partners. (U.S. Coast Guard photo Petty Officer 2nd Class Sean Ray Blas)

News Release

U.S. Coast Guard Forces Micronesia / Sector Guam

USCGC Oliver Henry (WPC 1140) concludes Operation Blue Pacific expeditionary patrol

Oliver Henry arrives to Apra Harbor Crew of Oliver Henry  Families greet Oliver Henry crew
 Oliver Henry at HMPNGS Tarangau School in Manus, Papua New Guinea Oliver Henry in Pohnpei Oliver Henry in Australia

Editor’s Note: Click on the images above to view or download more including b-roll video.

SANTA RITA, Guam — The Sentinel-class fast response cutter USCGC Oliver Henry (WPC 1140) arrived at homeport in Guam, Sept. 19, following a patrol across Oceania.

“The crew of Oliver Henry just completed a 43-day historic patrol across Oceania, where we patrolled and visited ports in the Federated States of Micronesia, Papua New Guinea, and Australia. We also patrolled the exclusive economic zones of those countries and Solomon Islands during our time,” said Lt. Freddy Hofschneider, commanding officer of Oliver Henry. “Our trip was significant in that we validated the capability of the fast response cutters homeported here in Apra Harbor, Guam, showing what we can do to promote regional stability in terms of fisheries and continue to build a better relationship with our regional partners.

The crew conducted training, fisheries observations, community and key leader engagements, and a multilateral sail. They covered more than 16,000 nautical miles from Guam to Cairns, Queensland, Australia, and returned with several stops in Papua New Guinea and one in the Federated States of Micronesia.

“The fact that we can take these 154-foot ships with a crew of 25 and a lieutenant commanding officer and push them so far over the horizon, even as far as Australia — which is what Oliver Henry just did — is an incredible capability for the region,” said Capt. Nick Simmons, commander U.S. Coast Guard Forces Micronesia/Sector Guam. “I’m proud of the work the Oliver Henry did, the resiliency of the crew deployed for 43 days, and they pulled off a variety of firsts – like first-time port calls in a couple of places like Papua New Guinea and Australia. Even more than that, I am proud of the resilience of the families. Not just the families of Oliver Henry but all the families here to support them and our local community here in Guam.”

In Papua New Guinea, the crew spent time on Manus Island and Port Moresby. They visited HMPNGS Tarangau School, spent time in the community, and engaged with Papua New Guinea Defence Force and local officials.

In Cairns, they conducted engagements with Australian Defence and Home Affairs partners, the mayor of Cairns, and Cairns Regional Council representatives. They also took time to engage with the International Marine College. Upon departure, they participated in a multilateral formation sail with crews from Australia and Fiji as the other ships departed for Exercise Kakadu off Darwin.

During their stop in Pohnpei, Oliver Henry’s crew hosted the U.S. Embassy team and an FSM National Oceanic Resource Management Authority – Fisheries Compliance Division representative to cover patrol highlights and future opportunities. The Oliver Henry commanding officer visited the FSM National Police Maritime Wing headquarters to discuss multilateral efforts. Finally, members of the cutter’s engineering team conducted a subject matter expert exchange with the crew of FSS Palikir, the last active Pacific-class patrol boat, on shipboard repairs and preventative maintenance.

While not the most extended transit for these cutters, this patrol does emphasize the Service’s capability and willingness to project into the far reaches of Oceania. The U.S. Coast Guard maintains strong partnerships with the maritime forces in the region through extensive training and subject matter expert exchanges. The U.S. Coast Guard conducts routine deployments in Oceania as part of Operation Blue Pacific, working alongside Allies, building maritime domain awareness, and sharing best practices with partner nation navies and coast guards. Op Blue Pacific seeks to strengthen partnerships and execute a mission to support maritime governance and the rule of law in the region.

This patrol was possible thanks to vital shoreside support for logistics and an augmented crew. Guam’s Maintenance Assistance Team/Asset Material Manager leveraged current personnel to fill billet gaps. Working with U.S. Coast Guard Base Honolulu ensured the short notice delivery of $100,000 in mission-critical parts to the ship while deployed. The Oliver Henry, which has no intrinsic medical personnel, also brought several folks aboard, including a corpsman from the U.S. Navy and a linguist from the U.S. Marine Corps.

“We had HS2 Edge from HSWL Juneau and HM3 Hardnett from Naval Hospital Guam, who provided a higher level of care on board as we transited over 8,000 nautical miles down Australia. We also brought Lance Cpl. Mabrie from Hawaii, our Korean linguist aboard, doing sighting reports inside of other countries’ EEZs and high seas pockets,” said Lt. j.g. Marissa Marsh, executive officer on Oliver Henry. “We also brought MK2 Blas and YN2 Blas from Guam, who provided extra help for maintenance, photography, and administration while we were underway. It felt like they’d been here since day one, and the crew enjoyed the extra help; they had a good time sailing with us.”

The Oliver Henry is the 40th Sentinel-class fast response cutter. The ship was commissioned along with its sister ships, Myrtle Hazard (WPC 1139) and Frederick Hatch (1143), in Guam in July 2021. These cutters are a vital part of the U.S. Coast Guard’s enduring regional presence serving the people of the Pacific by conducting 10 of the Service’s 11 statutory missions with a focus on search and rescue, defense readiness, living marine resources protection, and ensuring commerce through marine safety and ports, waterways, and coastal security.

For more U.S. Coast Guard Forces Micronesia/Sector Guam news, visit us on DVIDS or subscribe! You can also visit us on Facebook at @USCGForcesMicronesia.

Old Fleet vs New Fleet, by the Ton, Revisited

Posted on by
16

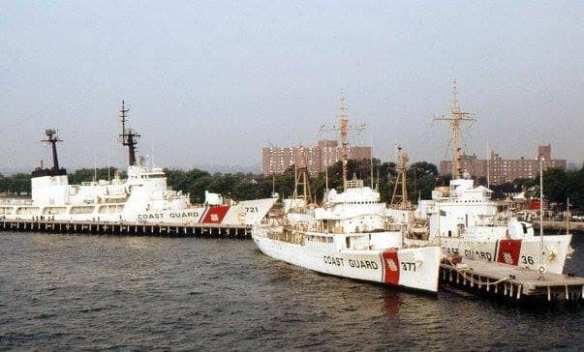

USCGC Gallatin WHEC -721 (378), USCGC Rockaway WHEC-377 (311), and USCGC Spencer WHEC-36 (327) moored at Governor’s Island, New York

Back in 2012, I did a little comparison between the Cutter Acquisition Program of Record and the Fleet it would nominally replace. Full replacement is still many years away (about 2038), but we do know a lot more now, than we did at that time, so here is an update.

The Benchmark Fleet: The fleet of 2000/2001 looked like this (displacement in tons full load, comparing only the larger patrol vessels):

Class       Displacement x Number = Total Displacement
378s          3050 tons      x      12    =     36,600 tons
270s          1780 tons      x      13     =    23,140 tons
210s          1050 tons       x      16    =    16,800 tons
Alex Haley 2929 tons     x         1     =      2,929 tons
Storis         1916 tons     x         1     =      1,916 tons
Acushnet   1746 tons     x         1     =      1,746 tons
110s            155 tons     x        49     =      7,595 tons

Total                                     93 vessels, 90,726 tons

(Three 180 foot WLBs of about 1,000 tons each, that had been converted to WMECs were also decommissioned about this time.)

The Fleet Today: Threre are perhaps as many as 27 Island class WPBs still in commission. At least 22 of the original 49 are no longer in USCG service. There are probably considerably fewer than 27 active USCG Island class. I would guess about 19 remain.

Looking only at the Webber class and larger cutters:

Class       Displacement x Number = Total Displacement
NSC          4500 tons       x        8      =  36,000 tons
270s          1780 tons       x      13      =  23,140 tons
210s          1050 tons       x      14      =  14,700 tons
Alex Haley 2929 tons       x       1       =    2,929 tons
FRC             353 tons       x      45      =  15,885 tons

Total                                     81 vessels, 92,654 tons

To this we might add however many 110s are still available, reportedly 15 vessels totaling 2,325 tons, so 96 vessels, 94,979 tons.

We are down to 36 large patrol cutters (=>1,000 tons full load), the same number expected to make up the future fleet, but they are individually less capable, and fewer than the 40 plus the Coast Guard has historically generally employed since WWII.

Looking back at my old Janes Fighting Ships and Combat Fleets of the World, the number of large patrol cutters were: 44 (82/83), 48 (86/87), 48 (90/91), 44 (2000/01), 39 (2013).

Fortunately, the Webber class have proven capable of performing some missions that previously would have been performed by larger cutters.

The Future Fleet (2038):

Class       Displacement x Number = Total Displacement

NSC        4500 tons      x    11       =       49,500 tons
OPC        4500 tons      x    25       =     112,500 tons
FRC           353 tons      x   64       =       22,592 tons

Total                                  100 vessels, 184,592 tons

Implications:

We will end up with more ships if the current plan is completed. In 2012 I expected the total displacement of the replacement fleet would exceed the displacement of the benchmark fleet by 34.44%, instead it is up an additional 65,618 tons, more than doubling displacement of the fleet in 2000. Only 15,618 tons of the increase was due to the three additional NSCs and six additional FRCs. Most of the increase was due to the surprisingly high displacement of the OPCs.

The large cutters (NSCs and OPCs) will be much more capable than those they replace, particularly compared to the 210s. They will handle rough weather better. Crews will be more comfortable and better rested, which can translate into better performance. In most respects, not only the NSCs, but also the OPCs, are more capable than the 378s.

The larger, more capable cutters will require larger, more expensive support facilities, more dock space, deeper berths, and larger dry docks for maintenance.

We have seen a tendency to base groups of the same class ships together. We will see fewer instances of ports with only one cutter homeported there. Fewer ports will be home to large cutters.

The fleet will still be much smaller than the last Fleet Mix analysis indicated it needed to be, to meet all the Coast Guard’s statutory obligations. Those obligations still seem to be growing.

36 ships, no matter how capable, are still only 36 ships. I still see a need for Cutter X, a simple but seaworthy ship of 1,500 to 2,500 tons that can be procured in quantity.

A Cutter X for Nigeria Built in Turkey

Posted on by
4

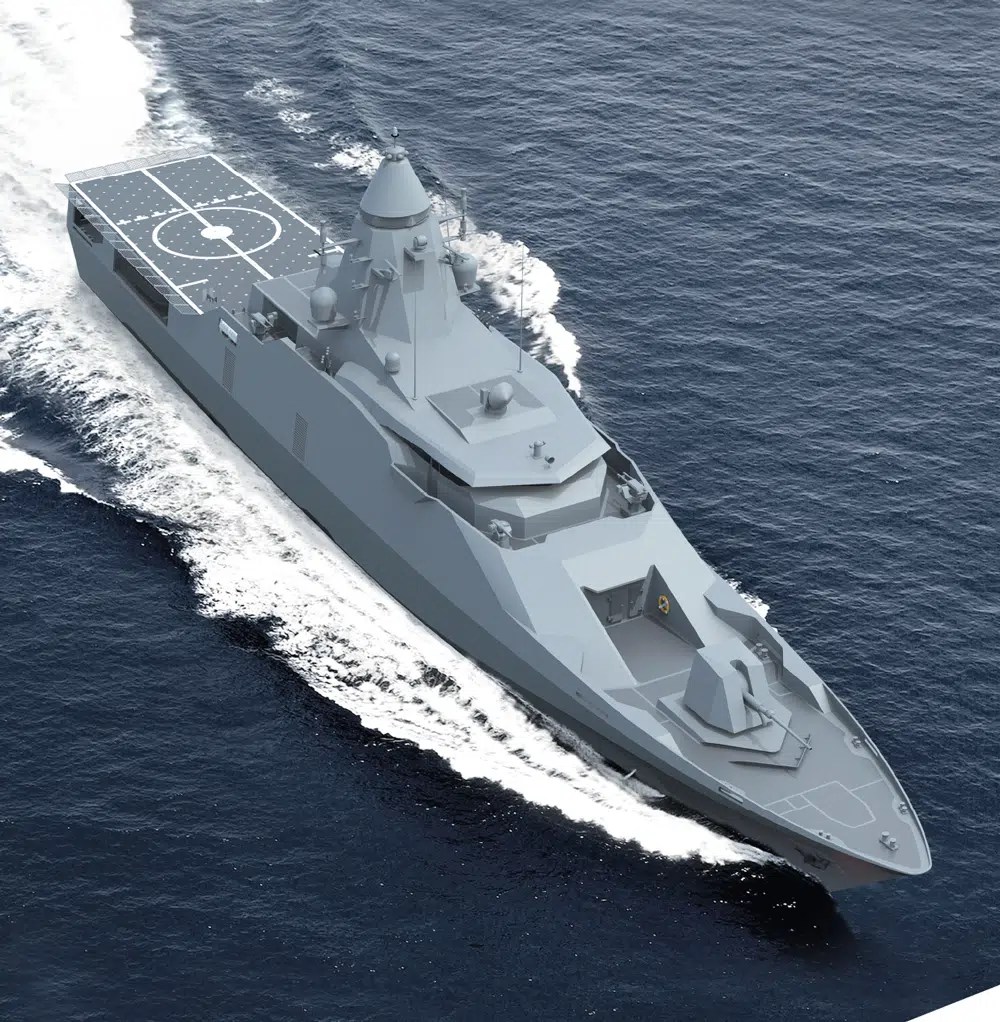

Dearsan OPV 76 design

Naval News reports a contract has been reached for Turkish shipbuilder Dearsan to construct two offshore patrol vessels for the Nigerian Navy.

The OPV 76 is 78.6 meters long and 11 meters wide. The draft of the ship is 2.9 meters and the displacement is about 1200 tons. It can reach a top speed of 26 knots, and has a range of 3000 nautical miles with economical speed. The ship can be operated by a crew of 46.

These are pretty close to what I envisioned as Cutter X, but with more weapons.

They are attractive little ships, and better armed than most. You can see the 76mm gun on the bow. The 40mm gun is sited on the aft end of the superstructure. MBDA Simbad RC launch systems for Mistral short range surface to air missiles are positioned on the starboard aft and port forward corners of the superstructure. .50 caliber machine guns mounted in remote operating stations occupy the other two corners.

If my research is correct, the four diesel engines will provide at least 16,000 HP (12,000 kW).

I don’t see davits, so I presume it will have a stern ramp for launching boats. The flight deck appears to be raised enough to allow “garage” space for boats and perhaps other systems.

None of the photos provide a good view from aft looking forward, but it appears unlikely to include a hangar for an embarked helo. There might be room for a UAS hangar.

Within the context of Nigeria’s neighborhood, the Gulf of Guinea, these will be seen as relatively powerful warships. They will join two former USCG 378s and two Chinese built corvettes as the principle combatants of the Nigerian Navy. The area has had a history of piracy and maritime robbery, but Nigeria has been making progress in curbing the problem. Nigeria is the most populous nation in Africa, a nation with huge potential, and it has demonstrated regional leadership in participating in UN peacekeeping missions. The US Coast Guard has been making an effort to help, and it appears to paying off.

I see that the Nigerian Navy also operates four former USCG 180 foot buoy tenders.

a Gulf of Guinea, from Wikipedia

Sea Fighter Analysis, U.S. Coast Guard Research and Development Center, 2007

Posted on by
16

“Sea Fighter” in Coast Guard colors

Thought perhaps this study might be of interest, and did not want to loose the link to the study. Some of the conclusions seem to bear on any discussion of the important characteristics of Coast Guard cutters, particularly as our Maritime Domain Awareness improves.

Characteristics such as speed, crew size, deployable surface and air assets, and requirements for a reconfigurable mission bay would influence the design of any possible future Cutter X. In terms of deployable air assets, it is likely a helicopter/UAS combination would be preferable to the two helicopters considered here, and would make it easier to provide hangar space.

Any requirement for extremely high speed requires careful consideration of the attendant consequences, as we have seen in the LCS program, but we have known how to reliably get speeds up to 33 knots for decades.

I have provided the Executive Summary below.

(Thanks to Lee for bringing this to my attention.)

EXECUTIVE SUMMARY

Introduction/Objective

The U.S. Coast Guard (CG) Research and Development Center (R&DC) evaluated the U.S. Navy’s Sea Fighter vessel for potential applicability to CG missions. When compared to other CG cutters, Sea Fighter has four unique capabilities/characteristics that could significantly impact CG mission effectiveness:

  • High-speed (50 kts)
  • Multiple deployable surface and air assets (three 11m Rigid Hull Inflatable Boats (RHIBs) (Cutter Boats Over-The-Horizon (CB-OTH)) or five 7m RHIBs (Short Range Prosecutors (SRP)), two HH-60s or two HH-65s, and multiple Vertical Unmanned Aerial Vehicles (VUAVs))
  • Small crew size (26 persons)
  • Reconfigurable Mission bay (accommodates 12 mission modules)

Methodology

This project evaluated Sea Fighter’s unique capabilities through a combination of engagement modeling and simulation, human systems integration modeling, and Sea Fighter crew and shiprider insights (following multiple R&DC operational test and evaluation exercises).

Results

High-speed and multiple deployable assets were evaluated using engagement modeling. Scenarios were developed to simulate fishing-like vessels (lower speed with higher density) and drug smuggling-like vessels (higher speed with lower density). The results of the analysis showed that by themselves high-speed and multiple deployable assets made little improvement in mission effectiveness. However, as Sea Fighter’s sensor detection range and/or its off-board detection capability (a vital contributor to maritime domain awareness (MDA)) improved, highspeed and multiple deployable assets did lead to significant improvements in mission effectiveness. In the simulated scenarios, improving components of MDA (off-board detection capability) was the critical performance driver, followed closely by increasing intercept speed (from 30 to 50 kts) and increasing the number of deployable assets from two to four (particularly increasing the number of deployable helicopters). These improvements result in an almost 30 percent increase in the number of high-speed targets that can be boarded.

Crew size, required functions, and fatigue associated with a typical CG patrol were evaluated through human system integration (HSI) modeling. With Sea Fighter’s highly automated bridge and engine room, a 26-person crew can sustain many of the required functions. For a typical 14-day patrol, Sea Fighter’s crew could sustain normal Condition-3 watches, multiple boardings (some simultaneously), and multiple VUAV launches. However, HSI modeling showed that Sea Fighter’s crew could not sustain regularly scheduled helicopter flight operations.

To account for these deficiencies, the crew was optimized by adding two boatswain mates and a six-person detachment—Law Enforcement Detachment (LEDET), Maritime Safety and Security Team (MSST), or Maritime Security Response Team (MSRT). This 28+6 optimal crew was able to sustain all required functions. In a typical 14-day patrol scenario, the 28+6 optimal crew averaged three boardings, two helicopter sorties, and three VUAV sorties each day without exceeding acceptable fatigue levels.

Finally, crew and shipriders provided firsthand observations and insights relative to Sea Fighter’s unique capabilities. Some key insights are:

  • High-speed capability is a distinct advantage in a vessel accomplishing any law enforcement mission and is especially effective at intercepting fast, evasive, and uncooperative targets.
  • Sea Fighter’s ride quality at low speed (less than 15 kts) is very poor and can adversely affect operations or activities; however, ride quality significantly improves at higher speeds (20+kts). The trade off is largely due to hull design consideration made during Sea Fighter’s planning phase.
  • RHIB launch and recovery is limited to 5 kts due to the poorly designed stern ramp and vessel movements at low (less than 15 kts) speeds.
  • A crew of 26 is too small for typical CG operations.
  • Overall, ship layout and configuration are excellent. Bridge layout affords excellent visibility, internal communications, and improved situational awareness with all underway watchstanders located on the bridge. Flight deck lighting, configuration, and manning are exceptional from both a crew and pilot perspective.
  • Sea Fighter’s mission bay can provide remarkable mission flexibility, especially for deployable teams such as MSRTs or MSSTs. However, spaces for 12 mission modules seem a bit excessive for CG needs. In addition, the design of the X-Y crane prohibits moving payloads (including extra 11m or 7m RHIBs) while underway.

Conclusion

A 50-kt Sea Fighter-like vessel with four deployable assets (two 11m OTH RHIBs and two HH60 helicopters) can provide significant performance improvement compared to a traditional 30-kt CG vessel (CG High-Endurance Cutter (WHEC) or CG Patrol Boat (WPB)).

A highly automated Sea Fighter-like vessel, with the crew size of a patrol boat, provides more mission capability than a WHEC. The ModCAT hullform and large mission bay provide excellent flexibility for emerging CG missions and demands. Sea Fighter’s speed and multiple deployable asset capability offer outstanding performance improvement potential for the CG; however, a critical enabler is improving detection capabilities – an element of maritime domain awareness. As MDA improves, a 50-kt patrol vessel capable of deploying four assets could provide a tremendous improvement over current and future 30-kt vessels.

Recommendations

The CG needs to continue to evaluate non-standard hull forms such as ModCAT-type vessels for both speed and modularity purposes. High-speed vessels normally have endurance problems based on their fuel consumption rates. This has been one of the perceived shortcomings of this hullform type. However, the ModCAT hullform (i.e. Sea Fighter) provides very good fuel economy and, given the typical patrol profile (12 kt patrol speed, 20 kt transit speed, and 50 kt intercept speed), the vessel is capable of remaining within the patrol area for an entire patrol period. Opportunities exist for the CG to further evaluate other Navy/DOD high-speed vessels (HSV) such as the M88 Stiletto for MSRT type missions and the HSV platforms, HSV Swift and HSV Joint Venture, for extended duration missions.

Additionally, the CG should look at ways to optimize the number and type of deployable and off-board assets through a more detailed M&S analysis. A 50 kt Sea Fighter-like cutter with four deployable assets (e.g., two 11 m OTH RHIBs and two HH-60 helicopters) can provide significant mission performance improvement compared to a standard 30 kt cutter. To maximize the benefit from embarking four deployable assets (two 11 m OTH RHIBs and two HH-60s), a revised approach to boardings would need to be established. Currently, boardings are to be conducted within two hours from the WHEC (at the WHEC’s maximum speed). Under the MSRT CONOPs, the boarding teams would need to be trained similar to MSRTs which are able to defend themselves while conducting a boarding at greater distances from the patrol vessel.

The CG needs to continue to incorporate more automated systems on-board cutters, but have contingency plans (both personnel and equipment) in place for changes in operational requirements or causalities. In order to derive optimal mission effectiveness, the patrol cutter must be able to safely navigate and operate deployable assets in varying sea states and at a reasonable speed. Sea Fighter’s automated systems allow for these evolutions to be conducted with fewer crew members and with an acceptable margin for safety.

Bulgaria Selects Lürssen to Provide OPV with ASW and ASuW Capability

Posted on by
6

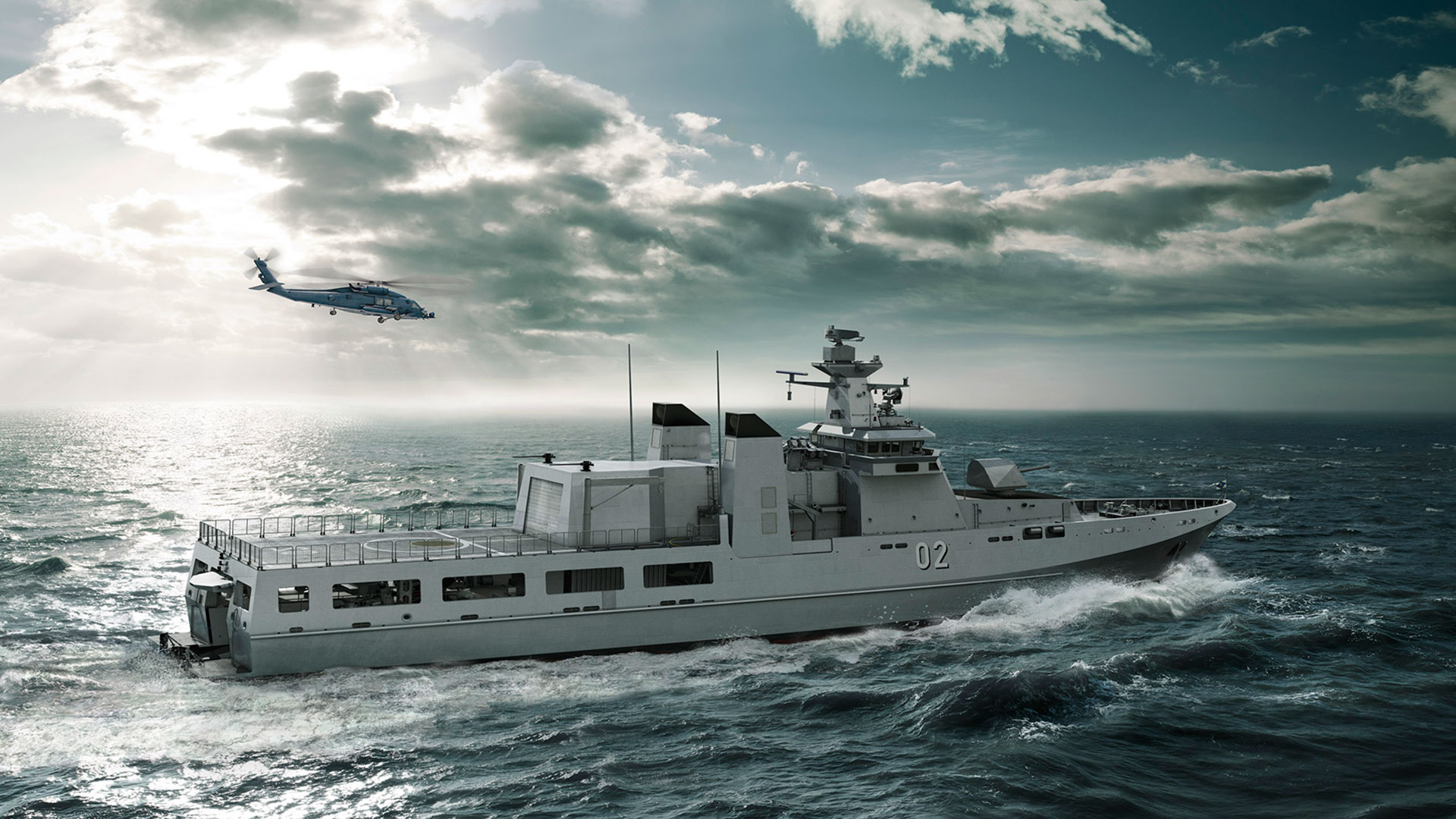

Lürssen 90 meter OPV

NavyRecognition reports that Bulgaria has approved the purchase of two Offshore Patrol Vessels (OPV) from the German firm Lürssen. This is the same company that designed OPVs for Australia and Brunei, but these will be different from the earlier ships.

“…the Bulgarian Navy has a requirement for two modular, multi-role patrol vessels, which would be capable of performing various types of tasks, such as anti-submarine and anti-surface warfare.”

“According to local media, the Bulgarian Ministry of Defense (MoD) has requested a ship that will be armed with one 76mm naval gun, anti-ship and surface-to-air missiles, lightweight torpedos and close-in weapon systems for self-defence. The ship will also have a flight deck to accommodate a medium-sized helicopter.”

Lürssen’s descriptions of their OPV offerings make no mention of an ASW capability, but they do have space for containerized systems that might include some type of towed array sonar. Because of the capabilities required, along with the larger crew required to support them, I would assume that the chosen design is based on the larger 85 or 90 meter offerings. According to the company web site the 90 meter OPV is typically equipped with:

  • 1 X 76/62 COMPACT OR 1 X BOFORS 57 MK3
  • 4 X MM40 EXOCET OR 4 X RBS 15 MK3 OR 4 X NSM
  • 1 VLS MK56 OR RIM-116 RAM
  • 2 X DECOY (E.G. MASS OR SWKS)
  • 2 X 20MM REMOTE CONTROLLED
  • 2 X .50 M2HB MACHINE GUNS
  • 1 X 3D SEARCH RADAR
  • 1 X FIRE CONTROL RADAR
  • 2 X NAV RADAR
  • EO/IR SENSORS
  • 1X HELICOPTER
  • GUIDANCE RADAR
  • ESM / ESM
  • IFF
  • LINK 11/16
  • HELICOPTER HANGAR
  • HELICOPTER LANDING DECK (11T)
  • 2 X 9 M RIB
  • 2 X 5,5 M RIB
  • STERN RAMP
  • 2 CONTAINER SPACES

(Bulgaria does already have Exocet and Sea Sparrow missiles in their inventory.)

Physical Characteristics are:

  • DISPLACEMENT: 2,100 T
  • LENGTH: 90 M (295 ‘)
  • BEAM: 14 M (46′)
  • DRAUGHT: 3.5 M (11.5′)
  • CREW: 86 (+4 EMBARKED)
  • TWO DIESEL ENGINES
  • 6,300 KW  (8448 HP) (That should result in 21-22 knots–Chuck)

Bulgaria’s Navy is small but growing. They still have a lot of Soviet/Eastern Block equipment. Bulgaria’s coast is on the Black Sea. Other nations bordering the Black sea are Georgia, Romania, Russia, Turkey, and Ukraine. Of these Russia has the strongest naval presence.

No indication yet where the ships will actually be built.

A map showing the location of the Black Sea and some of the large or prominent ports around it. The Sea of Azov and Sea of Marmara are also labelled. Created by User:NormanEinstein, Wikipedia

A Cutter X for Malta, the P71

Posted on by
8

Another cutter design fitting about half way between the Offshore Patrol Cutter and the Fast Response Cutter. An unusual feature of this one, is its hybrid propulsion system. Also found it interesting that it used the ABS classification system. Before COVID-19 this vessel was expected to be delivered this year.

The characteristics of the vessel are as follows:
Length Overall – 74.8m (245.3′)
Moulded breadth – 13m (42.6′)
Speed – More than 20 Knots
Displacement – 1800 tons full load
Draught – 3.8m (12.5′)
Classification Society – ABS
Propulsion – 2 x 5440 kW Hybrid with PTI (14,590 HP)
Propellers – 2 x CPP

Given that it will have twice the horsepower of a WMEC270 and is nearly the same displacement, its maximum speed is likely to be about 23 knots.

The hybrid propulsion includes electric motors capable of propelling the ship at up to 12 knots.

It is expected to have a crew of 48 and additional accommodations for 20.

It is expected to operate two 9.1 meter RHIBs, one from a stern ramp and one from a davit, starboard side. It is also expected to operate an AW139, an approximately seven ton gross weight helicopter. No hangar is fitted.

The construction contract, signed 10 Oct. 2018, is for EUR48.6 million (USD56.2 million) funded 75% by the European Union Security Fund.

Thanks to Lee for bringing this to my attention.

Sources:

HMS Clyde, a Short but Remarkable Career

Posted on by
20

HMS Clyde (P257) has been decommissioned and is expected to be sold to the Brazilian Navy. By Coast Guard standards, she is almost new, not yet 13 years old. She is being replaced by a new ship of the more capable River Batch II class that evolved from HMS Clyde and three earlier River class Offshore Patrol Vessel.

As an OPV, Clyde’s design is largely unremarkable (specifications below), but her twelve year deployment on distant station, with reportedly only a single yard period, in spite of having a crew of only 40 on a ship slightly larger than a 270 foot WMEC, is quite unusual.

HMS Clyde was commissioned in 30 Jan. 2007 and decommissioned 20 Dec. 2019. In Brazil where she will join three newer, but similar type ships, also built in Britain.

Specifications:

  • Displacement: 2000 tons
  • Length: 81.5 m (267 ft 5 in)
  • Beam: 13.5 m (44 ft 3 in)
  • Propulsion: twin diesel, 11,280 HP total
  • Speed: 21 knots
  • Endurance: 21 days
  • Range: 5,500 nmi (10,200 km)
  • Flight Deck for helicopters up to and including Merlin
  • Armament: 30mm auto cannon, 2 miniguns

Offshore Patrol Cutter Program Alternatives

Posted on by
25

Offshore Patrol Cutter port quarter

Note: I have had to revise some of my conclusions about when benchmarks would be achieved. The text below has been changed to reflect the correction.

I have been talking about the OPC for over nine years, and it is frustrating to see what appeared to be real progress toward impressive new ships come apart, but with the Offshore Patrol Cutter program in flux, perhaps it would be worthwhile to look at where we are, where do we want to go, and what the current restraints and limitations are. Maybe there is a better way.

As currently envisioned the last OPCs are not expected to be funded until FY2034 nor delivered until 2037. A lot can happen between now and then.

Where are we?

The current thinking is to provide contract relief for Eastern and allow them to build the first four ships. Meanwhile the Coast Guard will recompete a contract for OPC #5 with options for #6-15.

But even this is uncertain. Congress has 60 days from the announcement (11 Oct. 2019 to 10 Dec.?) to consider the proposed contract relief. If I interpret correctly, unless they take action to deny relief, construction will go ahead. That suggest that denial of contract relief is unlikely, but by no means, are we sure it will happen.

It seems likely we will get four OPCs from Eastern, but even that is uncertain. Really we have no assurance we will get any OPCs at all.

What do we need? What are the constraints?:

We should have begun replacing the WMECs we have now, 25 years ago, so the need is urgent. We can also be pretty sure we need more large cutters (those of over 1000 tons full load) than are currently planned.

Realistically we cannot expect great increases in either PC&I (Procurement, Construction, and Improvement) or operating budget. That means, hopefully, the Coast Guard will get around the $2B/year PC&I successive Commandants have been saying we will need, but probably little or no more, and further, that we should not expect significant personnel increases.

The current plan will provide fewer large cutters than we have now. Eleven NSCs are replacing twelve WHECs and 25 OPCs are expected to replace 29 WMECs. That is 36 to replace 41. In fact if you look back a little further the Coast Guard had even more large ships. Editions of Combat Fleets of the World for the years indicated show that in 1990/91 we had 50 and in 2000/2001 there were 44. The Fleet Mix Study conducted more than a decade ago indicated we actually need an even larger fleet.

The need to rapidly replace the existing WMECs and ultimately expand the fleet, within the constraints of budget and manpower are in direct conflict, particularly when the cutters have become bigger and more expensive and their crews size has, with few exceptions increased.

Replace the WMECs we have ASAP:

The WMECs we have need to be replaced as soon as possible. If the recompete goes as expected, the fourteenth OPC will not replace the last 210 until fourth quarter FY2032. That 210 will be over 63 years old. The last 270 decommissioned will be at least 48 years old. We can only expect that these vessels will have increasingly frequent major machinery casualties. The high number of major casualties that were experienced when the Coast Guard responded to the earthquake in Haiti is only a taste of what we can expect in the future.

More Cutters:

The Fleet Mix Study of 2009 showed we needed 66 large cutters to fully accomplish all the Coast Guard’s statutory missions. A 2011 revision reduced the total to 58.

That number was perhaps artificially low because it assumed the “Crew Rotation Concept” would be applied to all National Security Cutters and Offshore Patrol Cutters, allowing an unrealistically high 225 days away from home. We have, to some extent, seen Webber class step up to perform some of these missions, but the need for more large ships is still apparent.

Unfortunately we have not updated the Fleet mix study based on more recent experience with the NSC and FRC. We really need to do that so that we can make more informed decisions and present a better case to Congress.

PC&I Budget

The FY2019 Procurement, Construction, and Improvements (PC&I) budget was $2,248.26M, of that less than $1.6M went to ship construction and improvement. It is unlikely we will see significantly larger budgets devoted to ship construction, and this includes funding for Polar Security Cutter, in service sustainment, and in the out years WPB replacement, and possibly new buoy tenders. We don’t unfortunately have any comprehensive long term shipbuilding plan that looks beyond five years.

Operating Budget/Crew Costs

Personnel costs are particularly important in overall lifecycle cost calculations. These come out of the operating budget which has actually shrunk in real terms.

The fleet that is being replaced (12 WHECs, 29 WMECs, and 44 WPBs) and the projected fleet, as currently planned (11 NSCs, 25 OPCs, and 64 FRCs) have almost the same total crew count, but it is doing so with the five fewer large cutters. The more numerous Webber class cutters have a larger crew than the 110 foot WPBs, 24 vice 16. Ultimately I expect 64 FRC to replace the 44 WPB110s for an increase of 832 billets. The OPCs will apparently have a crew of about 100, about  the same as that of the 270s, but about 25 more than are currently assigned to 210 foot WMECs. Replacing 14 of 210s with OPCs will add about 350 billets. Only the National Security Cutters have smaller crews than the ships they have replaced. My Combat Fleets of the World shows the crew of the NSCs to be 122 and that of the 378s to be 177, eleven NSCs compared to twelve WHEC378s would be decrease of 782 billets.

By my count the Legacy fleet of 85 vessels (12 WMECs when the NSCs started building, 28 WMECs when the OPCs started building, and 44 WPBs when the FRCs started building) required 5,349 billets. (The nominal fleet the program of record supposedly replaced included 29 WMECs and 49 WPBs, would have included another 179 billets or 5,528.) The currently planned fleet of 100 vessels (11 NSCs, 25 OPCs, and 64 FRCs) requires 5,378 billets.

If we are to increase the number of larger cutters while leaving the total number of billets little changed, we would need to trade off some of the OPCs for more numerous vessels with smaller crews.

The Alternatives:

The first question is, is the OPC, as currently designed, the vessel we still want?

While I don’t think it will happen, in view of the increasing likelihood of a great power conflict, the wisest thing that could happen, is that we replace the OPCs with what ever design the Navy chooses for the new FFG. That would take a massive infusion of cash and manpower, not going to happen.

If we reopen the competition to include other designs built to the same requirements we not only complicate logistics and training in the future, we also probably delay the decision process another year. Looks like the Coast Guard is trying to avoid that. They have a design they like, and once production is underway, it will certainly be cheaper than the NSCs.

Do we want a ship built to different requirements, maybe something like my proposed Cutter X? The Coast Guard came up with the requirements for the OPC, so I have to assume that for at least some missions, we need ships that meet those requirements. (I understand that the first two OPCs will go to Kodiak.) On the other hand, several years ago, Congress asked the Coast Guard if there weren’t missions or geographic areas that did not require ability to conduct helicopter and boat operations in such severe conditions?  That question was apparently never answered, as far as I know, but we know for a fact that less capable ships have been performing these missions for decades. We see it in the way the fleet was distributed. Most 378s went to the Pacific where long distances and ALPAT demanded great range and seakeeping. 210s generally went to the West Coast and SE and Gulf coasts where the weather tended to be more benign. 270s tended to based further North in the Atlantic since they were more seaworthy than the 210, if not as capable as the 378s.

We have a mixed fleet of WMECs, perhaps their replacements should be a mixed fleet as well, allowing the more robust OPCs to be used where those characteristics are most likely to be needed, while we also build more smaller, cheaper ship to provide the numbers we need. As before, I will refer to this class, slotted between the OPCs and the Webber class WPCs as Cutter X.

Considering Cutter X, to be significantly cheaper than the OPCs and have a significantly smaller crew, we probably should look to designs that are half the size of the OPC or smaller. That does not mean these ships will be small. In fact they could be larger than any of the existing WMECs, and more than twice the size of the 210s. The 327 foot Treasury class WHECs would qualify in terms of size. Average procurement cost for the OPCs, before the need for contract relief surfaced was $421M per ship. Cutter X should cost less than $250M. Actually it should be possible to build them for less than $200M.

I have pointed to a number of designs that might be considered, but to offer a concrete example, consider the Fassmer OPV-80 design used by the German Police Coast Guard, and the Navies of Chile, Colombia, and Honduras.  It can operate and hangar a medium sized helicopter, has two boats on davits and a third larger boat on a stern ramp, and can be armed with a medium caliber gun up to 76mm. The German versions are getting Bofors 57mm guns like those used by the Coast Guard. There is space for two containers under the flight deck. Its crew is 40 or less.

Some of this class have been ice strengthened.

Chilean OPV84, Cabo Odger

A possible program:

I will offer what I believe to be a possible alternative to the current plan with the objective of replacing the aging fleet as rapidly as possible, ultimately increasing the number of larger patrol ships in the fleet and keeping the budget and manpower similar to what we have been experiencing.

In looking at an alternative program there a number of milestones that might be considered.

  • When would we replace all the 210s? At this point we should have at least 26 new generation large cutters (replacing 12 WHECs and 14 WMEC210s). This is currently planned to occur in 2032.
  • When would we get to 36 new generation large cutters currently planned? Now FY2037.
  • What kind of fleet will we have at the end of FY2037? Current plan 11 NSCs and 25 OPCs.

The proposal is in three parts:

  • Proceed with the OPC program as currently envisioned funding one OPC per year through FY2025. In FY2026 and 2027, fund one, rather than two, and halt the program at ten ship with the last delivered in 2030.
  • Continue to fund one NSC a year through FY2023, this will give us 15 NSCs, with the last delivered in 2026.
  • Start a program for Cutter X in FY2021. Fund construction for the first ship in FY2024, then two ships in FY2025 to 2027, then three ships a year in FY 2028 to 2034 (the last year for the current plan). This will provide a total of 28 ships with the last delivered FY2037.

This breaks down to:

  • FY2020 to FY2023 we would fund one NSC and one OPC,
  • FY2024 we fund one OPC and the first Cutter X.
  • FY2025 to FY2027 we build one OPC and two Cutter X (which should cost the same as two OPCs).
  • From FY2028 through 2034 we fund three Cutter X per year (which should cost less than two OPCs).

This is how the benchmarks break down:

  • When would we replace all the 210s? At this point we should have at least 26 new generation large cutters (replacing 12 WHECs and 14 WMEC210s). This is currently planned to occur in 2032. In 2028, 15 NSCs, 8 OPCs, three Cutter X (plus 13 WMEC270)
  • When would we get to 36 new generation large cutters currently planned? Now FY2037. In 2032, by the end of the year, 38 ships, 15 NSCs, 10 OPCs, 13 cutter X.
  • What kind of fleet will we have at the end of FY2037? Current plan 11 NSCs and 25 OPCs. At the end of FY 2037, 53 ships, 15 NSCs, 10 OPCs, 28 cutter X.

At the end of FY2037 we will have effectively replaced the 12 WHEC and the 13 WMEC270s with 25 more capable NSCs and OPCs. The 14 WMEC210 and Alex Haley will have been replace by Cutter X and 13 additional large cutters added to the fleet, 17 more than the current plan.

Even if we did not fund NSCs 13-15, it would only take one additional year to replace the 210s and to reach 36 new generation ships. and we would still have 50 ships at the end of FY2037.

We really need to do a new Fleet Mix Study and we need to follow it up with a long term shipbuilding plan, something Congress has been asking for for years.

Three Missile Armed Cutter X for Senegal, 20 Patrol Boats for Ukraine

Posted on by
3

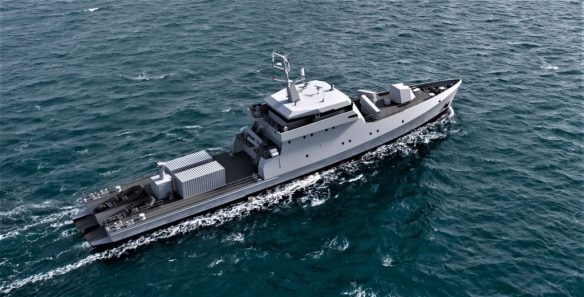

OPV 58 S from PIRIOU

Two posts from Naval News. French shipbuilders are doing well in the patrol vessel market.

First, “The Ministry of Armed Forces of Senegal and French shipbuilder PIRIOU signed November 17 a procurement contract for three OPV 58 S for the Navy of Senegal. The vessels will be fitted with missile systems, a first for this African navy.”

Second, “The Government of Ukraine gave its green light for the procurement of 20 FPB 98 patrol vessels made by French shipyard OCEA.”

The Senegalese OPVs:

The ships for Senegal fall into that class significantly larger than the Webber class, but significantly smaller than the OPCs. They will be even a little smaller than the 210s. It would be at the lower end of a type, I have called cutter X, vessels with a crew and equipment similar to that of a Webber class FRC, but with better sea keeping and longer endurance. Specifications are:

  • Length: 62.20 meters (204′)
  • Width: 9.50 meters (31.2′)
  • Draft: 2.90 meters (9.5′)
  • Speed: 21 knots
  • Range / Endurance: 25 days, 4,500 nautical miles @ 12 knots
  • Hull / Structure: Steel / Aluminum
  • Accommodations: 48 (24 crew + 24 mission personnel)
  • Stern ramp for two RHIBs

For an Offshore Patrol Vessel, it is very well armed with:

  • A 76mm main gun on the Foc’sle
  • 4x Marte MK2/N anti-ship missiles forward, between the gun and the bridge
  • 2x 12.7mm manned manchine guns on the bridge wings
  • 2x 20mm remote weapon stations (Narwhal by Nexter) at the back of the bridge
  • A SIMBAD-RC surface to air system

The Marte MK2/N missile weighs 310 kg (682#) and is 3.85 metres (12.6′) long. The warhead weighs 70 kilogram (154 pound). The missile, has “an effective range in excess of 30 km, is a fire and forget, all weather sea skimming missile with inertial mid-course navigation through way points and active radar terminal homing. These missiles give these boats a range almost double that of the 57mm or 76mm guns.

SIMRAD-RC is a remote weapons station for launch of two Mistral missiles. Developed as a shoulder launched, Man Portable Air Defense (MANPAD) system, Mistral is a short ranged (6km) IR homing missile. It is claimed to be capable against a range of air targets as well as small surface targets.

Ukrainean OCEA FPB 98 patrol boat:

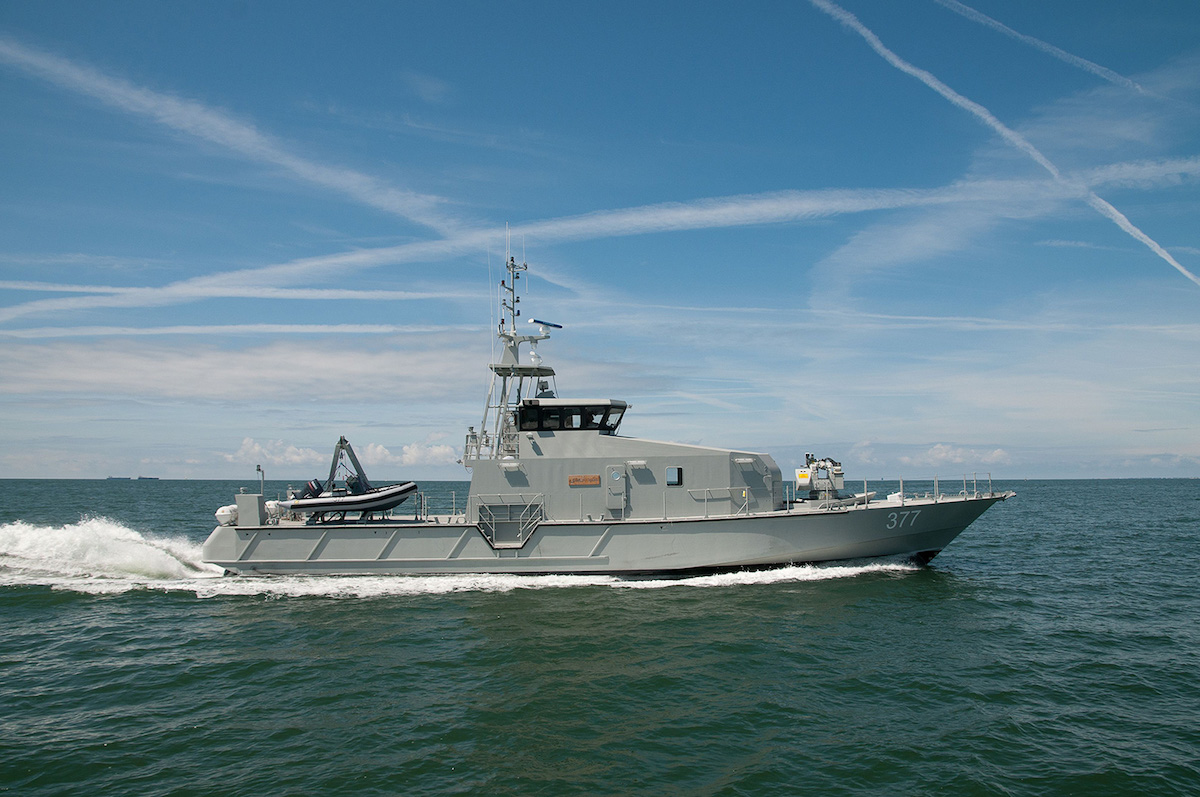

OCEA FPB 98 patrol boat (Credit: OCEA)

This is a deal, we discussed in July, when it appeared likely. I will repeat the description here.

They have a GRP hull and are powered by two 3,660 HP Caterpillar diesels using waterjets. Specs for vessels of this type sold to Algeria.

  • Displacement: 100 tons
  • Length: 31.8 meters (104’4″)
  • Beam: 6.3 meters (20’8″)
  • Draft: 1.2 meters (3’11”)
  • Speed: 30 knots
  • Range: 900 nmi @ 14 knots
  • Crew: 13

They will probably be equipped with a 20 to 30mm gun.



Australia Selects OPV Design

Posted on by
44

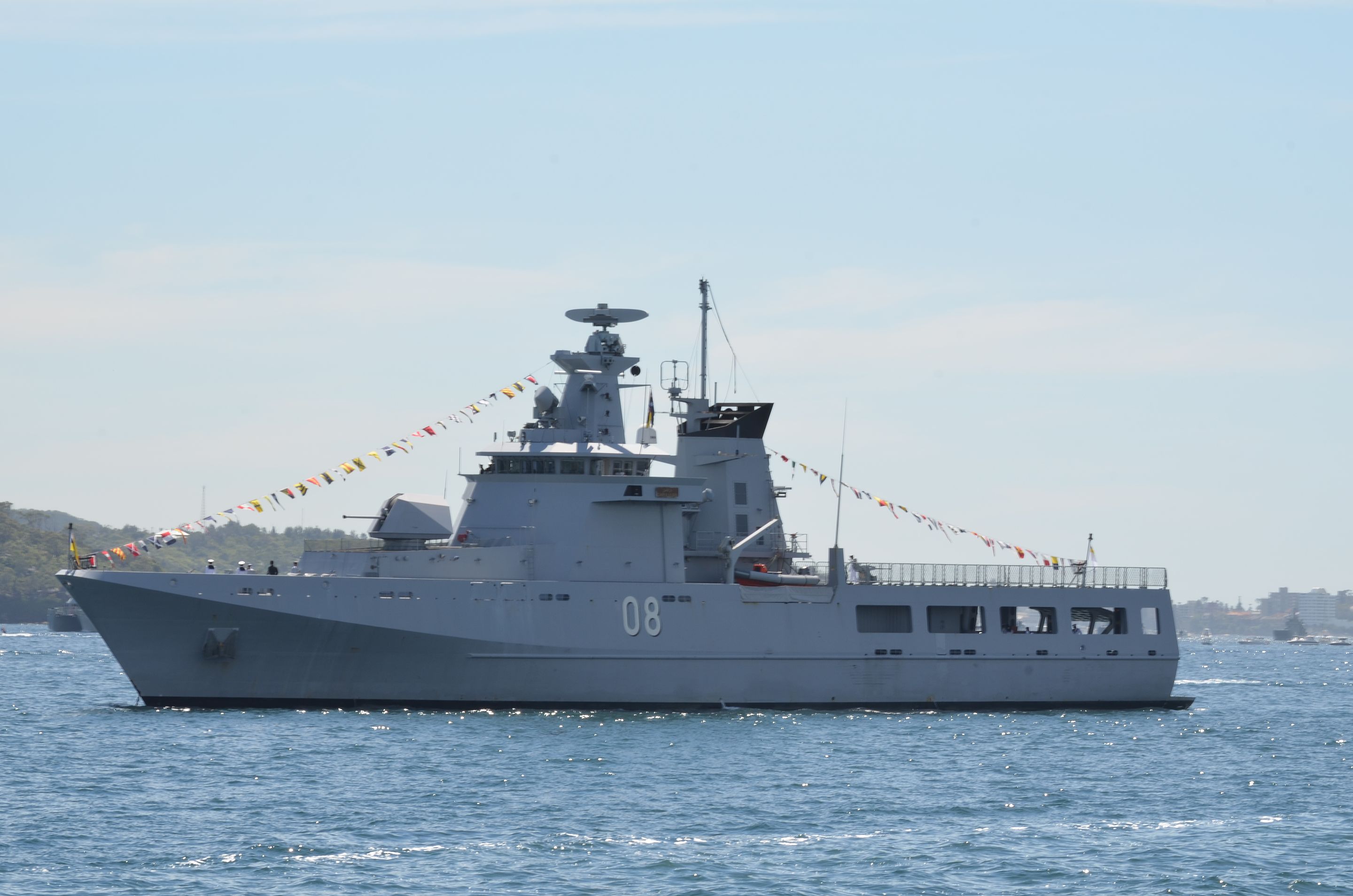

Photographs taken during day 3 of the Royal Australian Navy International Fleet Review 2013. The Bruneian patrol vessel Darulaman moored in Sydney Harbour. Photo by Saberwyn.

The Australian Navy has announced the selection of the design for a planned program of 12 Offshore Patrol Vessels to replace the 13 active 300 ton Armidale class patrol boats.

The new ships will be built in Australia. The design is based on that of the Durussalam class, four ships built for the Brunei Navy by Lurssen in Germany. Lurssen is famous for their torpedo and missile boats. The vessels are expected to be 80 meters (262 ft) long and 13 meters  (43 ft) of beam with a draft of four meters (13 ft) with a speed of 22 knots. Unlike most of the Brunei ships, the Australian ships will be armed with a 40mm gun rather than the 57mm seen in the illustration above. The Australian OPVs are expected to have provision for three 8.4 meter boats and mission modules.

I am a bit surprised by the choice because this appears to be the least capable of the contenders in that it has no hangar, but it does double the range of the patrol boats they will replace and is more than five times the displacements, so should prove a substantial improvement over the Armidale class that really seem to have been asked to do more than  could reasonably expected of them.

In some ways these  are the embodiment of the Cutter X concept in that they seem to have the equipment and crew of a patrol craft in a more sea worthy hull, but they have also taken the opportunity to provide more boats and a helicopter deck.

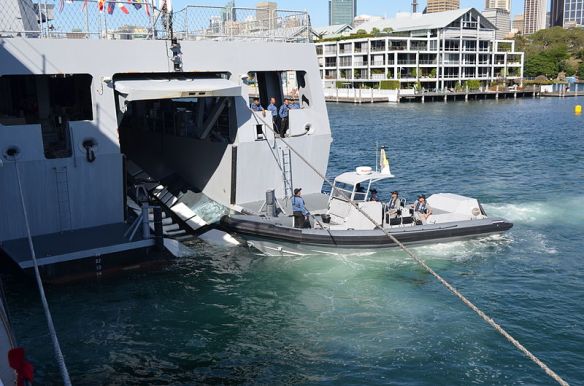

Photograph taken during day 5 of the Royal Australian Navy International Fleet Review 2013. Stern view of the Bruneian patrol vessel Darulaman, The ship’s RHIB is deployed, and the RHIB well is open. Photo by Saberwyn.

Thanks to Nicky for bringing this to my attention.
