“AUSTAL USA EXPANDS MANUFACTURING CAPACITY WITH DESIGN FOR NEW FACILITY AND SHIPLIFT” –News Release

Posted on by
4

Austal’s planned new assembly building and ship lift. Ships featured in the illustration, Constellation class FFG, 496 ft (151.18 m) loa, and an Offshore Patrol Cutter, 360 ft (110 m), provide scale.

Below is a Austal USA news release.

June 2022 Austal was awarded a contract with options for up to eleven Offshore Patrol Cutters (OPCs #5 to #15). OPC #5 was in the FY2023 budget. It appears OPC #6 will be in the FY2024 budget. I expect we may see OPC #5 delivered in 2027, #6 in 2028, #7 in 2029 and both #8 and #9 in FY2030.

Eastern launched the future USCGC Argus, OPC #1, in Oct. 2023. Even so, it is not expected to be commissioned until 2025. Eastern has said they will deliver OPC#4 in 2026. I have a hard time being that optimistic. It might be more reasonable to expect delivery of one per year, #2 in 2025, #3 in 2026, and #4 in 2027.

If Eastern turns out a good product at a competitive price, a renegotiation of their contract options for five more cutters included in the original contract could accelerate procurement of these long-delayed ships, and reduce the resource shortfall that now seems inevitable.

FEBRUARY 6, 2024

MOBILE, Ala. – Austal USA announced the start of design for a new manufacturing facility signifying a major expansion of the company’s Mobile, Ala. shipyard capability.  The infrastructure expansion, which will be to the south of Austal USA’s current waterfront facility, will include a new assembly building, waterfront improvements, and a new shiplift system.  Start of construction on the project is planned for summer 2024.

The construction of this new building and waterfront support area, which includes a Pearlson-designed shiplift, continues the expansion Austal USA began in March 2021 with the groundbreaking of the steel panel line. In addition to the manufacturing capacity of the new buildings, the shiplift will provide a safe and reliable system to launch ships as they are completed in the assembly buildings. The system will also enable retrieving ships and bringing them back on the land-side facility.

“With the steel panel line in full production our expansion focus has shifted to the erection and launch facilities required to support our growing backlog,” commented Austal USA acting President Michelle Kruger.  “This new facility is continuing evidence of the close relationship we have with our local community including our community leaders; local, state and federal political leaders; and, regional organizations such as the Mobile Area Chamber of Commerce.”

Austal USA has partnered with Pearlson & Pearlson Inc, program manager and owner’s representative; Kiewit Infrastructure South Co., lead for design and construction; and, Pearlson Shiplift Corporation, designer and builder of the shiplift system, to execute the project.  The new assembly building will consist of three bays and enable erection of recently awarded steel ship contracts as well as provide the flexibility to manufacture modules for submarine and other surface ship programs.  The assembly building will be approximately 400 feet long by 480 feet wide providing over 192,000 square feet of covered manufacturing space occupying four and a half acres.

The Pearlson-designed shiplift system will feature an articulated lifting platform approximately 450 feet long by 125 feet wide, capable of lifting and launching vessels in excess of 18,000 long tons. This capacity will facilitate the launch and docking of the U.S. Navy Constellation-class Frigates, TAGOS-25 class Ocean Surveillance Ships, Independence-variant Littoral Combat Ships, and the U.S. Coast Guard Heritage-class Offshore Patrol Cutters.

When complete Austal USA’ s Mobile, Ala. facility will include a 117,000 square foot steel panel line, two module manufacturing facilities totaling over one million square feet of covered manufacturing space optimized for serial production, and seven assembly bays providing over 400,000 square feet of indoor erection space.  In all, the Mobile facility covers 180 acres and, when this project is complete, over 1.5 million square feet of indoor manufacturing space.

Shed the Freedom Class LCS, Build FFGs and Navalized Webber Class?

Posted on by
19

Littoral combat ship Little Rock (LCS 9) is underway during a high-speed run in Lake Michigan during acceptance trials. Lockheed Martin Photo

Not that I think it is going to happen, but Forbes has a proposal, “Now Is The Perfect Time To Sink The Freedom Class Littoral Combat Ship,” by Craig Hooper. He suggests the Navy end its long embarrassing association with the Freedom class LCS, handing them over to Foreign Navies who might be able to use them. The Navy could then accelerate introduction of the new FFG that are to be built at Marinette which is currently building the Freedom class. If we really need more LCS, we could continue construction of Austal’s more successful Independence class. or

“Alternatively, the Navy could fund a smaller, simpler patrol boat. The U.S. Coast Guard’s cost-effective Sentinel class Fast Response Cutter is already in the field, demonstrating value every day—with about 40 already in service, these reliable, 154-foot ships are doing everything that the Freedom class vessels are not. Sentinel class Fast Response Cutters are deploying throughout the Pacific, forward-basing in Hawaii and Guam, and 6 of the ultimately 64-hull fleet will soon operate out of Bahrain. They may even be based in deepest parts of the American Pacific, operating out of American Samoa. A navalized version of this useful patrol ship—potentially leveraging the powerful F-35 radar system and other useful, off-the-shelf systems—can be whipped up in almost no time, quickly replacing the Freedom class ships currently based in Mayport Florida with a lower-cost, more functional and more strategically-useful platform.”



The Navy’s New Frigate

Posted on by
35

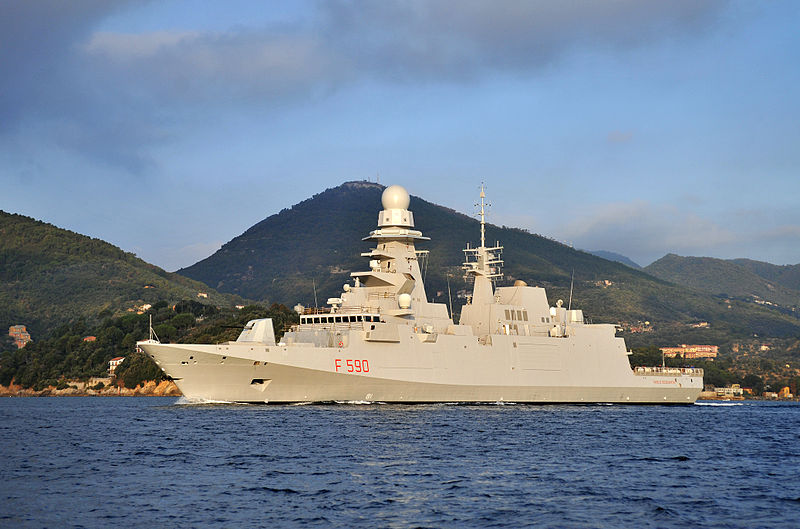

Italian FREMM Bergamini. photo by Fabius1975–no its not going to look like this

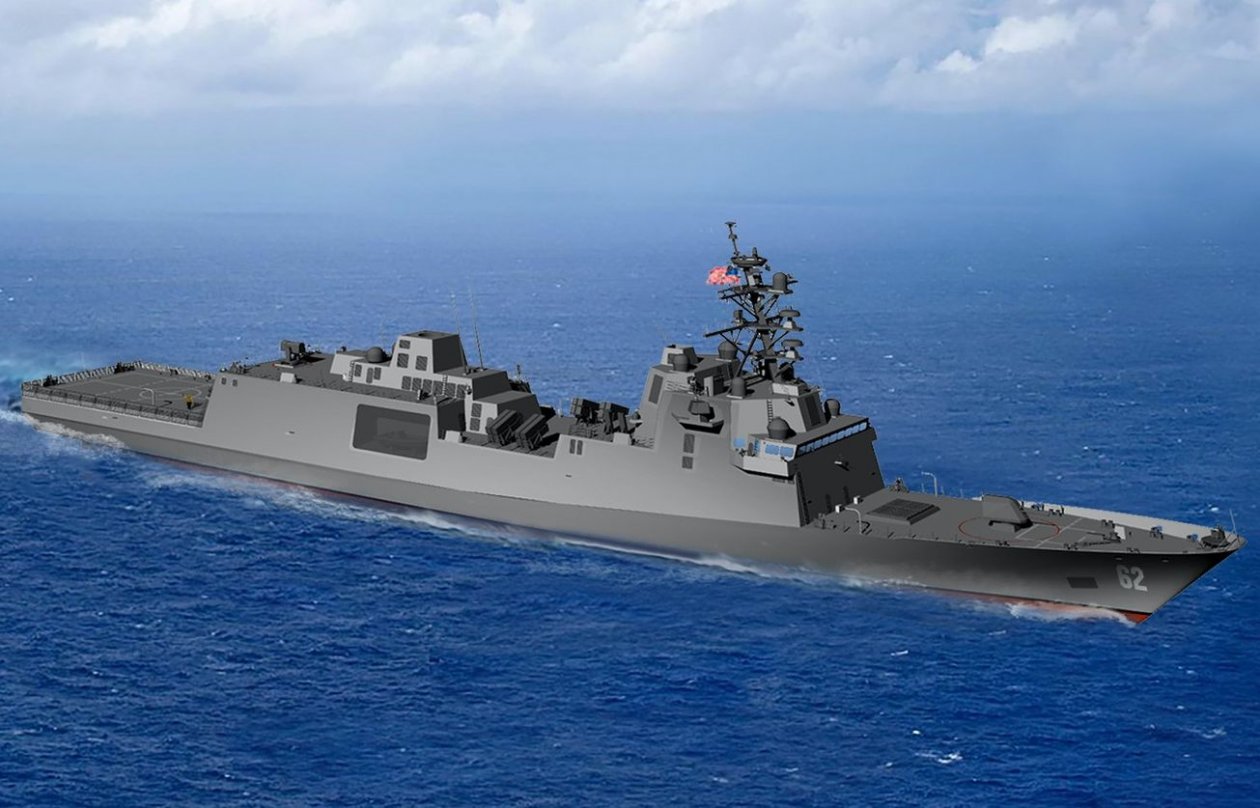

The US Naval Institute has a one page description of the new Navy frigate in the July 2020 issue of Proceedings, including a nicely annotated side view of the ship (you can see it here). Other than the diagram and the intro, the article is behind the paywall. It not only illustrates how the ship is equipped, it also explains the differences between the US version and the Italian version. I will summarize and include some observations.

The already large FREMM frigate grows to 7,400 tons and 496 feet in length, an increase of “more than 500 tons” (700 tons according to Wikipedia) and 22 feet in length. Draft is reduced from 24 to 23 feet, but only because there is no bow mounted sonar, so the draft over the rest of the hull is likely greater.

This large size appears to open the possibility of a smaller combatant class of 2,000-4,000 tons which might be dual service (Navy/Coast Guard) ships, or perhaps simply an upgraded Bertholf class.

It appears the power plant is much the same as the Italian version, combined diesel electric and gas turbine. In the Italian ships, that consists of four diesel generators totaling roughly 15,000 HP, two electric propulsion motors totaling 5 MW or about 6700 HP, plus an LM2500 gas turbine rated at 32 MW or about 42,895 HP. The combination is reportedly good for more than 30 knots in the Italian frigates and the US version should not be much different despite the increase in displacement. The USNI report claims only a sustained speed in excess of 26 knots. I would note that this is slightly less total horsepower than the National Security cutters.

The one characteristic of the design that gives me pause is the cruise speed. For the Italian frigate the reported max is 17 knots, limited by the power of the electric motors. The USNI article reports a cruising range of 6,000 nmi at a speed of 16 knots in electric mode. These ships are likely to, at some point, perform escort duty for convoys or amphibious ready groups. Many modern merchant ships and all amphibious ready group ships can maintain 20+ knots. It is entirely possible that they may need to escort convoys with a base speed of 18 knots or more, which would require them to operate almost continuously on their one turbine engine which would seriously degrade their range. It is possible they have included higher power electric motors which might allow a 20 knot cruise, but there has been no indication of this. When escorting an aircarrier, they would be expected to operate on turbine virtually al the time, but in that case at least a tanker can be expected to be near by.

The systems reported on the new frigate include:

  • .50 cal. machine guns, looks like ten positions: four bow, two stern, four in the superstructure.
  • 57mm Mk110, ALaMO ammunition is mentioned as a capability.
  • 32 cell Mk41 VLS for SM-2 and quad-packed ESSM (no mention of vertical launch ASROC but that should be a possibility)
  • SPY-6(V)3 EASR multi-function radar, a smaller version of the radar being used on the latest Burke class DDGs
  • Mk20 Electro-optic gun fire control system
  • Cooperative Engagement Capability Datalink
  • UPX-29 IFF
  • SLQ-32(V)6 SEWIP EW system
  • Mk 53 Nulka decoy launchers
  • 16 (four quad) RGM-184 Naval Strike missile launchers
  • 7 meter RHIB hangar
  • 21 tube Mk49 RIM116 RAM launcher (on the hangar aft)
  • Hangar space for up to two MH-60R or one MH-60R and one MQ-8C Fire Scout
  • SQS-62 variable depth sonar
  • TB-37 multi-function towed array sonar
  • SLQ-61 lightweight tow or SLQ-25 Nixie towed torpedo decoy

Construction is expected to begin in 2022, first of class delivery 2026, and Initial Operational Capability (IOC) 2030. Apparently this is a contract with options for out years rather than a “Block Buy.”

Late Addition: Contrary to what I think I remember about the supposed equipment, there was no mention of vertical launch Hellfire. Notably there are none of the weapons normally associated with dealing with swarming high speed inshore attack craft e.g. no 25mm Mk38 and no 30mm Mk46, which seems surprising. Also don’t see a position that seems likely for a laser weapon, unless it is the small area elevated one deck forward of the RAM launcher and aft of the stack.
