“Coast Guard Booth Presentations at Sea Air Space 2021” –CG-9

Posted on by
1

22 meter saildrone Ocean Mapping UAS

The Acquisitions Directorate (CG-9) has provided media used in the Coast Guard’s presentation booths at Sea Air Space 2021, August 2 and 3. While certainly not a substitute for being there, they do provide insights into programs and concerns.

Coast Guard Booth Presentations at Sea Air Space 2021

  • Blue Technology Center of Expertise (BTCOE)
    Overview Blue Technology Center of Expertise presentation
    Ms. Jennifer Ibaven and Dr. Peter Vandeventer, BTCOE Program Managers, Office of Research, Development, Test & Evaluation and Innovation (CG-926)
    Tuesday, Aug. 3, 2021, 3-3:30p.m.
  • Coast Guard Detachment at DOD’s Defense Innovation Unit
    DIU & USCG Overview presentation
    Cmdr. Michael Nordhausen, Liaison Officer to Defense Innovation Unit
    Tuesday, Aug. 3, 2021, 4-4:30p.m.
  • Unmanned Systems
    U.S. Coast Guard Unmanned Systems presentation
    Capt. Thom Remmers, Assistant Commandant for Capabilities Unmanned Systems Cross-Functional Team Lead
    Monday, Aug. 2, 2021, 2:30-3p.m.
  • The Future of the Arctic
    U.S. Coast Guard Arctic Policy presentation
    Mr. Shannon Jenkins, Senior Arctic Policy Advisor
    Tuesday, Aug. 3, 2021, 11-11:30a.m.
  • Illegal, Unreported and Unregulated Fishing
    U.S Coast Guard IUU Fishing Strategic Outlook presentation
    Cmdr. James Binniker, Office of Law Enforcement Policy, Living Marine Resources and Marine Protected Resources Enforcement Division
    Tuesday, Aug. 3, 2021, 2:30-3p.m.

“GA-ASI Flies MQ-9 in the Canadian Arctic” –Seapower

Posted on by
Reply

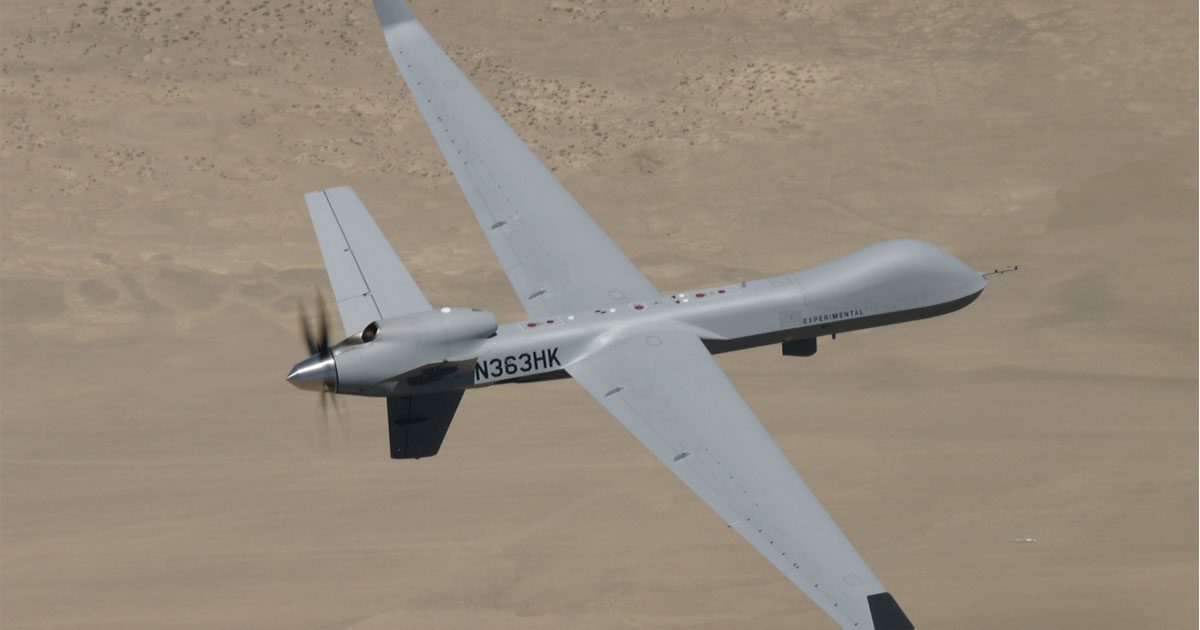

General Atomics Aeronautical Systems’ MQ-9A “Big Wing” UAS flew in the hostile climate of the Canadian Arctic. GA-ASI

The Navy League’s Seapower website reports,

 In a flight that originated from its Flight Test and Training Center (FTTC) near Grand Forks, North Dakota, General Atomics Aeronautical Systems, Inc. (GA-ASI) flew a company-owned MQ-9A “Big Wing” configured unmanned aircraft system north through Canadian airspace past the 78th parallel, the company said in a Sept. 10 release.

A traditional limitation of long-endurance UAS has been their inability to operate at extreme northern (and southern) latitudes, as many legacy SATCOM datalinks can become less reliable above the Arctic (or below the Antarctic) Circle – approximately 66 degrees north. At those latitudes, the low-look angle to geostationary Ku-band satellites begins to compromise the link. GA-ASI has demonstrated a new capability for effective ISR operations by performing a loiter at 78.31° North, using Inmarsat’s L-band Airborne ISR Service (LAISR).

The 78th parallel lies more than 1200 nautical miles North of Kodiak. Getting any kind of air recon that far north, other than perhaps icebreaker based helicopters, has always been difficult.

Even our icebreakers have difficulty communicating. Satellite coverage at these high latitudes is spotty at best.

The ability to operate UAS in this environment could substantially improve our Polar Domain Awareness and serve as a communications relay for multiunit operations in the Arctic or Antarctic.

The high altitude capability of these aircraft also provides a far larger view than would be possible from a helicopters. The horizon distance from 45,000 feet is about 250 nautical miles.

Coast Guard Releases Request For Proposal For Long Range UAS Tech Demonstration

Posted on by
5

3-View line drawing and dimensions of MQ-1B Predator UAV, – Department of the Air Force, Engineering Technical Letter (ETL) 09-1: Airfield Planning and Design Criteria for Unmanned Aircraft Systems (UAS), 28 Sept 2009

The Acquisitions Directorate has issued a Request for Proposal for demonstration of a Long Range/Ultra-Long Endurance (LR/U-LE) Unmanned Air System (UAS).

The Statement of Work (Attachment_1_-_Statement_of_Work_.pdf) indicates demonstration is expected to take place at Eglin Air Force Base. “The period of performance will be one year from the date of award which is estimated to occur in September 2018.”

The Requirements

The sensor package will include Electro-optical (EO) and Infrared (IR) Full Motion Video (FMV), Maritime Surveillance Radar, Radio Frequency/Direction Finding (RF/DF) sensor, with tactical communications radio/data link.

Minimum airframe performance in the full up configuration include 50 knot patrol speed, 15,000 foot ceiling, 24 hour endurance.

Takeoff and Recovery Wind Limits are 20 knot headwind, seven knot crosswind, and up to five knot gusts.

For identification the airframe will be equipped with Air Traffic Control Radar Beacon System, Identification Friend or Foe, Mark XII/Mark XIIA, Systems (AIMS) certified (AIMS 03-1000A) Mode 3 A/C transponder with “IDENT” capability.

Commentary

Presumably this will result in a RFP for a land based LR/U-LE UAS, but probably not before FY2021.

The specifications make it clear the Coast Guard is not looking at obtaining their own version of the Navy’s Broad Area Maritime Surveillance (BAMS) MQ-4C Triton UAS.

I would note that the demonstration provides no slack for trade-offs between search width, speed, and endurance to determine total area searchable. The 24 hour endurance is fixed. There is also no dash speed requirement. To me this suggest that the system is more for tracking than searching, although it could also do that as well.

There is also no mention of ViDAR as an alternative to Radar.

Given distance to operating area and the relatively slow speed of these assets, to maintain an asset on scene is going to require more than one sortie per day, probably more like two per day. That suggest that a 24/7/365 on scene capability will require five or six airframes.

Coast Guard Floor Presentations at Sea-Air-Space 2018

Posted on by
Reply

3-View line drawing and dimensions of MQ-1B Predator UAV, – Department of the Air Force, Engineering Technical Letter (ETL) 09-1: Airfield Planning and Design Criteria for Unmanned Aircraft Systems (UAS), 28 Sept 2009

The Acquisitions Directorate (CG-9) web site has three links that provide information presented at the Navy League’s 2018 Sea-Air-Space Symposium.

Ultra Long Range/Long Endurance UAS

Posted on by
8

3-View line drawing and dimensions of MQ-1B Predator UAV, – Department of the Air Force, Engineering Technical Letter (ETL) 09-1: Airfield Planning and Design Criteria for Unmanned Aircraft Systems (UAS), 28 Sept 2009

The Coast Guard Compass has a post on the Coast Guard’s investigation of possible future procurement of land based long-range and ultra-long endurance unmanned aircraft systems (LR/ULE UAS).

The Air Force has recently decided to retire all their MQ-1 Predator UAVs replacing them with the MQ-9 Reaper. Perhaps we could get a near term interim capability and gain valuable experience by taking over some of the Air Force Predators and modifying them for a Maritime role..
