“British Army drone to fly over English Channel to monitor migrant boats” –Independent

Posted on by
3

Thales Watchkeeper WK450

Like the US Coast Guard, the UK Border Force conducts Alien Migrant Interdiction Operations. They are reportedly getting some assistance from the British Army in the form of Unmanned Air Vehicles (UAV) being used to patrol the English Channel.

The UAVs are Thales Watchkeeper WK 450s (manufacturer’s brochure here) an improved version of the Israeli Elbit Hermes 450 with the addition of a dual-mode synthetic aperture radar and ground moving target indication system, providing all weather target acquisition.

The Watchkeeper program has not been cheap, about 1.2 billion pounds to provide and support 54 drones, and it has had its problems. They were supposed to have been operational in 2010, but apparently only reached Initial Operational Capability in 2014. Five have crashed. Regarding the current fleet,

“45 Watchkeeper airframes were in service as at 23 July 2020. 13 have flown in the past 12 months and 23 have been in storage for longer than 12 months. Of those flying, 10 have been operated by the Army from Akrotiri in Cyprus and Boscombe Down in Wiltshire, three have been used for test and evaluation. The airframes in storage are held at specific, graduated, levels of readiness. This is commensurate with practices used on other Defence capabilities and assets.”

The airframes are:

  • Length: 19.69 ft (6 m)
  • Span: 34.45 ft (10.5 m)
  • Engine: Winkel rotary, 52 hp
  • Max Speed: 95 knots
  • Operational Radius: 200 km; 108 nm (Line of Sight)
  • Endurance: 16+ hours
  • Service ceiling 18,045 feet (5,500 m)

This means, it is about half the size of the familiar MQ-1 Predator, also a bit slower and their service ceiling is lower.

The British Maritime and Coastguard Agency (MCA) has selected Israel’s Elbit to demonstrate the capabilities of their larger Eblit Hermes 900 UAVs. which has capabilities similar to those of the MQ-1. Meanwhile the RAF is also flying surveillance over the English Channel.

“IMSAR’s NSP-5 Radar Moving Into Production for RQ-21 Unmanned System” –Seapower Magazine

Posted on by
1

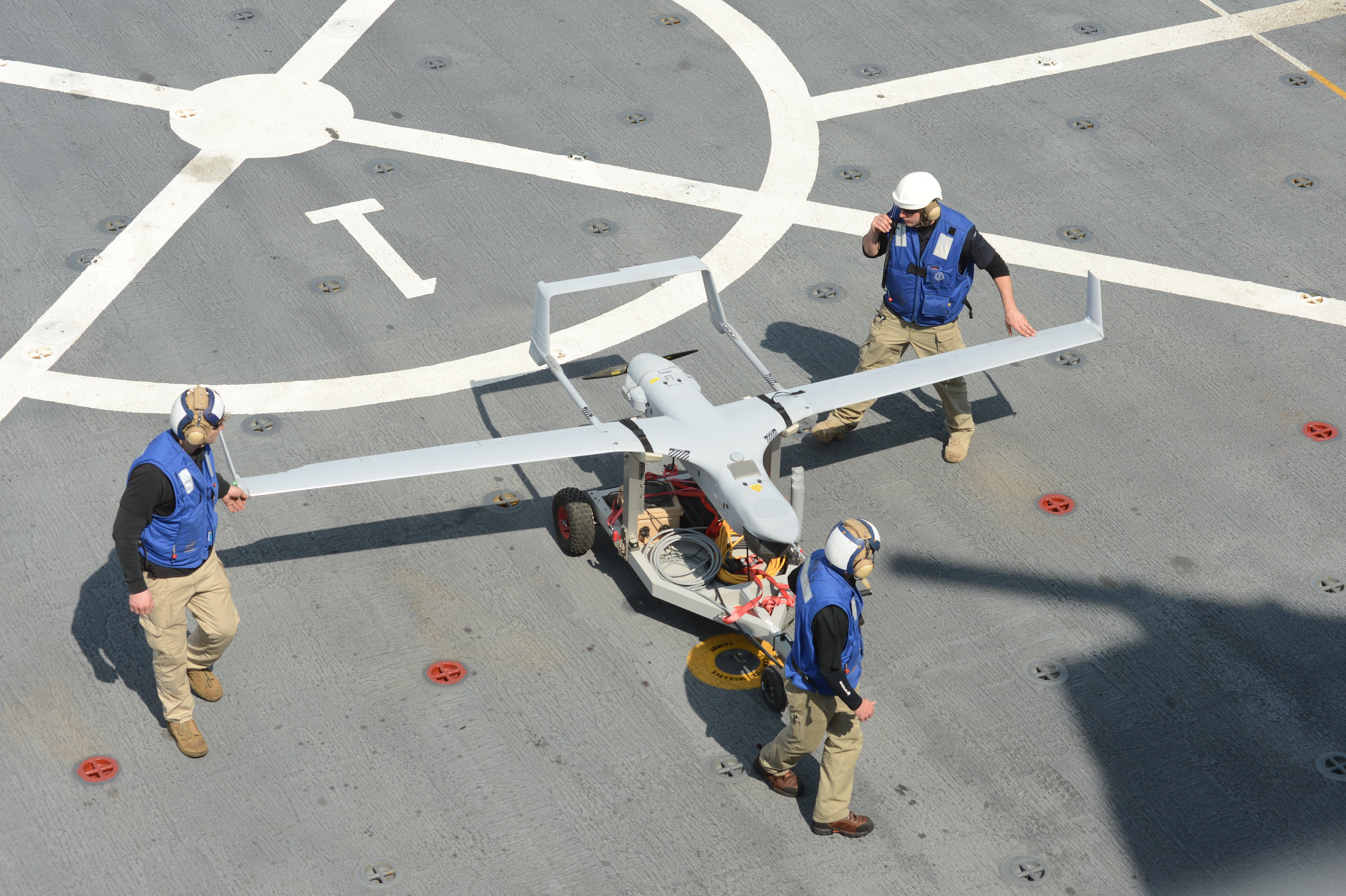

GULF OF MEXICO (Feb. 10, 2013) Members of the RQ-21A Small Tactical Unmanned Air System (STUAS) test team transport the RQ-21A across the flight deck of the amphibious transport dock USS Mesa Verde (LPD 19) after its first flight at sea. (U.S. Navy photo by Mass Communication Specialist 3rd Class Sabrina Fine/Released) 130210-N-NB538-195

The Navy League’s Magazine Seapower reports that “a synthetic aperture/ground moving target Indicator Radar Payload and has been given the prototype designation AN/DPY-2()” for the MQ-21 Blackjack.

The Coast Guard has always wanted their unmanned air system (UAS) to have a radar system and the Scan Eagle that the Coast Guard has contracted for has been tested with a radar from this manufacturer. I am not sure if Coast Guard Scan Eagles are radar equipped, but, if not, it appears that radar equipped small UAS are a definite possibility.

The RQ-21 Blackjack is, like the Scan Eagle, made by Boeing Insitu. It is heavier, 135 lb (61 kg) vs 48.5 lb (22 kg) max takeoff weight, with a correspondingly larger payload weight, but like the Scan Eagle it launches from the same launch and recovery systems.

The radar may be a bit large for Scan Eagle, but apparently not for the Blackjack.

The NSP-5 delivers high-performance capabilities despite its small size, weight and power characteristics. Commercially, the NSP-5 is available in a standard pod configuration that measures 5.4 inches (13.7 centimeters) in diameter and 45.3 inches (115 centimeters) in length, weighs 16 pounds (7.3 kilograms) and consumes 150 watts of power.

New Sensors for Fire Scout

Posted on by
3

170327-N-VS214-002
SAN DIEGO (March 27, 2017) A MQ-8C Fire Scout helicopter sits in the hangar bay of the littoral combat ship USS Montgomery (LCS 8). (U.S. Navy photo by Mass Communication Specialist 3rd Class Zachary Eshleman/Released)

US Naval Institute News Service is reporting that the Navy is looking at providing better sensors, in particular a better radar, on the MQ-8C Fire Scout (the larger version).

“What’s important to us right now is making sure we have the right sensors, a good multi-function radar, some kind of passive targeting capability and the right networks to push that information to the right people at the right times.”

When the Navy finally gets around to deploying LCS to the drug transit zones, these could be very useful.

Reportedly they will provide, “…a circle of influence and sea control out to about 300 miles” although probability of detection almost certainly depends on target size and characteristics.

The radar of choice is reportedly the Leonardo Osprey 30 active electronically scanned-array (AESA) radar. This radar has no moving parts.

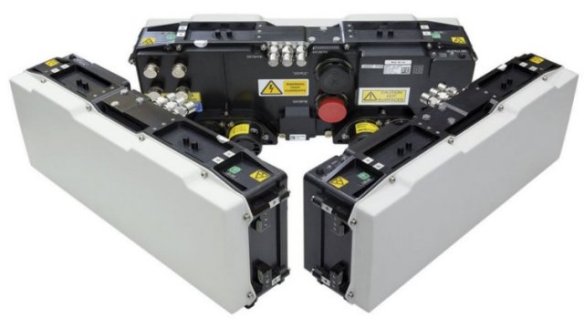

Leonardo’s Osprey AESA radar. The two panel configuration allows 240 degree coverage. A three panel configuration allows 360 degree coverage as on Norway’s AW101 SAR helicopters. Configurations of up to four panels are possible (Photo by Leonardo)

Aviation Week reports:

“Each antenna contains 256 Transmit and Receive Modules (TRM) – 25% more than that the single array on the Seaspray 7500E radar fitted to U.S. Coast Guard HC-130J Hercules search aircraft (also a Leonardo product–Chuck). The antennas, which can be used in several different modes including surface search, air-to-air and synthetic aperture radar and moving target indication, are controlled through a single processing unit which collects the data and displays it as presenting a single radar picture.”

They claim:

  • Class-leading maritime surveillance capability
  • AESA-enabled small target mode (STM)
  • Very high resolution, wide swath SAR Mapping
  • Small radar cross section (RCS), low minimum detectable velocity (MDV), multi-channel moving target indication (MTI)
  • Air-to-Air surveillance, track and intercept
  • Instantaneous multiple mode interleaving
  • Difficult target detection from high altitude

Ultimately as more of the “C” models are built, we might see them on Coast Guard cutters. There is also the possibility that as more of the larger “C” models come on line, the Coast Guard may be able to get some of the smaller “B” models. The “B” model did operate for Bertholf for two weeks.

The larger C model, with its higher speed, greater payload, better sensors, and 11+ hour endurance, would certainly be an improvement over the ScanEagle currently planned for the National Security Cutters. Whether the “B” model‘s presumably better sensors but shorter range/endurance would allow a greater effective search area compared to the ScanEagle I could only speculate, but I suspect it would also be an improvement, using perhaps two flights per day.

The National Security Cutters could certainly support both an H-65 and an MQ-8C, since they can support two H-65s. It is less clear if the OPC could support both. They reportedly can support an MH-60 or an H-65 and a UAS, but what size UAS?

These systems suggest that at some point, at least on our largest cutters, we may be able to relieve shipboard manned helicopters the routine search function.

SNA Symposium, Virtual Tour

Posted on by
Reply

airbus ds trs 4D SNA 217

If you were unable to attend the Surface Navy Association Symposium, but would like to see what you missed, NavyRecognition offers a series of videos. They include a number of systems that have been discussed here including, smart projectiles for the 57mm, unmanned surface vehicles, the LRASM Long Range Anti-Ship Missile, SeaRAM as a replacement for Phalanx, TRAPS Towed Reelable Active Passive Sonar, MK20 Mod 1 Electro-Optical Sensor System (EOSS), TRS-3D Baseline D multi-mode radar (MMR) ordered for the ninth NSC.

If you want to look primarily at the frigate proposals as well as the proposed weapons modules for the LCS which might also be applicable to the icebreaker, there is this composite video.

Incidentally why was there no mention of this symposium on the National Cuttermen Association Chapter, Surface Navy Association website?

U.S. Coast Guard Selects FLIR and Raymarine–MarineLink

Posted on by
Reply

MarineLink reports,

FLIR Maritime announced recently that it has been awarded a $50 million indefinite delivery, indefinite quantity contract to provide marine electronics systems under the U.S. Coast Guard’s Scalable Integrated Navigation Systems 2 (SINS-2) program over a five-year period providing the purchaser a right to extend delivery for an additional five years.

FLIR will provide electronics systems that will be standard fit on over 2,000 U.S. Coast Guard vessels, ranging from small-class boats through large cutter-class vessels. The systems include Raymarine multi-function navigation displays, radars, sonars, remote instrument displays, and autopilots.



TRS-3D Baseline D Multi-Mode Radar for 9th NSC.

Posted on by
10

NavyRecognition reports, “Airbus Defense and Space, Inc., under contract with its affiliate Airbus DS Electronics and Border Security GmbH, will provide the TRS-3D Baseline D multi-mode radar (MMR) for the U.S. Coast Guard’s ninth National Security Cutter (NSC).”

The Bertholf Class have been equipped with the rotating Active Electronically Scanned Array (AESA) TRS-3D multi-mode (air search, surface search, helicopter control, and firecontrol) radars from the first. My understanding is that this is an improved version of the same radar that equips earlier National Security Cutters and the Freedom class LCS.

Airbus (formerly EADS) has an excellent multi-paged description of the system here.

It is not clear to me how this compares with the TRS-4D system, also from Airbus. The TRS-4D will equip Freedom Class LCS beginning with LCS-17, and I expected it to be used on the Offshore Patrol Cutter (OPC). (Late note: in fact the OPCs will have the SAAB Sea Giraffe multi-mode radar– Chuck) The TRS-4D appears to be very similar in many respects, but it looks at higher elevations and is lighter. Is it a replacement for the TRS-3D or is it a “junior” version of the same technology?
