Northern Sea Route, Failure to Launch

Posted on by
3

Map of the Arctic region showing shipping routes Northeast Passage, Northern Sea Route, and Northwest Passage, and bathymetry, Arctic Council, by Susie Harder

gCaptain reports that despite record traffic, it appears there is little international interest in using the Northern Sea Route through the Russian Arctic to move cargo between the Atlantic and Pacific. Virtually all the traffic serves Russian local interests.

“Transit cargo contributed less than 3 percent to last year’s volumes through the Northern Sea Route,”

Low fuel prices have removed much of the incentive to use this shorter, but potentially more difficult route. Logically the same considerations apply to the North West Passage route as well. Given our unreadiness to deal with heavier traffic and the portential for an environmental disaster in the Arctic, this is probably good news for the US and Canadian coast guards. How long will these conditions continue? At the very least, we seem to have some time to get our act together.

Russia’s New Nuclear Icebreaker, Largest, Most Powerful

Posted on by
10

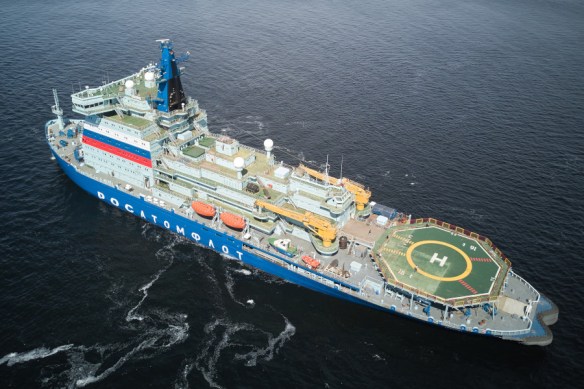

NPR has some photos of the launching of Russia’s as yet uncompleted, 568 foot long nuclear powered icebreaker. which will be the largest and most powerful icebreaker in the world. The NPR story provided a link to a Sputniknews story.

According to sputniknews.com,

“The Project 22220 vessel is 189.5 yards long (568.5 ft–Chuck) and 37.1 yards wide (111.3 ft). The ship displaces 33,540 metric tons.”

That is almost three times as large as the Polar Star.

A second ship of the class is also expected to be completed before 2020.

Interestingly, while Russian navy projects are frequently subject to delays, this icebreaker is being launched more than a year earlier than originally planned.

Thanks to David for bringing this to my attention.



Russians Building Missile Armed Arctic Patrol Vessel

Posted on by
44

Project23550IceClassPatrolVessel

Concept image issued by the Russian Ministry of Defence of the Project 23550 ice-class patrol ships for the Russian Navy. Source: Russian MoD

Janes360 is reporting that the Russian Ministry of Defense has awarded contracts for two new ice class patrol vessels that are reportedly capable of operating in ice up to 1.5 meters thick (approx. 5 feet).

The class is described (in Russian) by the MoD as being “without analogues in the world”, and combining “the qualities of tug, ice-breaker, and patrol boat”.

To me it looks an awful lot like the Norwegian Coast Guard vessel Svalbard or Canada’s Arctic Offshore Patrol Ship that is based on the Svalbard’s design.

Jane’s notes, “A concept image released by the MoD showed the vessel armed with a medium-calibre main gun on the foredeck (likely an A-190 100 mm naval gun), a helicopter deck and hangar, and two aft payload bays each fitted with a containerised missile launch system (akin to the Club-K system offered for export) armed with four erectable launch tubes – presumably for either Club anti-ship or Kalibr-NK land-attack missiles. Although billed as patrol boats, this level of armament makes them better armed than many corvettes.”

If these are in fact containerized missile systems, then they may simply be optional equipment, added to the conceptual image to give the ship a bit more swagger, and we may never actually see this. If you are breaking ice for a vessel following close behind, you may not want missiles with their warheads and high energy fuel located near the stern where a collision with a vessel following too close might rupture a missile and start a fire.

It does suggest that a few spaces for containers could turn almost any ship into a potential missile platform.

Project 22160 patrol ships, Russia’s Cutter X

Posted on by
33

The Zelenodolsk Shipyard in the Volga area will lay down the third Project 22160 patrol ship Pavel Derzhavin on February 18, shipyard spokesman Andrei Spiridonov told TASS on Monday. "The shipyard will hold a solemn ceremony of laying down the Project 22160 patrol ship Pavel Derzhavin developed by the Severnoye Design Bureau in St. Petersburg [in northwest Russia]," the spokesman said.

Recently, NavyRecognition reported Russia was laying down a third Project 22160 patrol ship. The first of this class should enter service next year. In size they fall between the Offshore Patrol Cutter and the Webber class WPCs, in the range I have called “Cutter X.” The size (1200-1800 tons full load) seems to be favored by many navies and coast guards.These ships are a bit unusual among small Russian ships in having a substantial range.

Reportedly the Russians are building six of these. Specs are as follows:

  • Length: 94 meters (308 ft)
  • Beam: 14 meters (46 ft)
  • Draught: 3.4 meters (11.2 ft)
  • Speed: 30 knots
  • Range: 6,000 nmi
  • Endurance:  60 days
  • Crew: 80

At one point there was a public statement that these had been designed to counter piracy off the Horne of Africa. But it has been more recently reported that they will be quipped with Kalibr (Tomahawkski) land attack missiles, the type recently used by ships in the Caspian Sea to attack targets in Syria. The ship is “modular” and has a reconfigurable space under the rear of the flight deck. The missile will be mounted in containers under the flight deck. Adding anti-submarine or additional anti-ship capabilities would require trading off the Kalibr missiles.

Russian Project 22160

The ship has a new naval gun mount incorporating a 57mm gun. The gun is reportedly capable of 300 rounds per minute and a range of 12 km. Effective range is about 4 km. This is a development of gun with a long history in Soviet and Russian Service in both anti-air and anti-armor roles, and as is frequently the case with Russian weapons, the ammunition is shared in common with the Russian Army.

In addition they will carry short range Anti-Air missiles. It appears they will be vertical launched from canisters between the gun and superstructure.

While these ships do not have a strong self defense capability, the mounting of cruise missiles similar to the Tomahawk on small vessels, particularly on one like this, that has a relatively long range, gives them a sort of miniature maritime strike capability, far less capable, but also far cheaper than a Carrier Strike Group. While the ships are small and the weapons unobtrusive, the potential to accurately strike up to eight separate targets would have required an attack by dozens of aircraft not too many years ago.

Apparently all six ships are to be assigned to the Black Sea Fleet and will be home ported in Novorossiysk.

Interestingly, it appears the Russians may also be building a similar size anti-submarine warfare ship. Again NavyRecognition has the report.
