Air Force Magazine talks about how decisions are made when it comes to defending the “Homeland”. It is pretty unwieldy now, but there is hope that it can be streamlined.
The Coast Guard needs to be part of this, both as Maritime Domain Awareness sensors, and as potential response assets.
As new systems are designed, we need to make sure the Coast Guard is included.
This is the second part of a reexamination of where critical ports are in the US and where the cutters that might be needed to protect them are homeported.
Consolidated Target and Homeport List:
I have reproduced this listing from part 1. It has been changed slightly to reflect the move of USCGC Seneca from Boston to Portsmouth, VA. Again, we have 31 target ports or port complexes in bold and 23 current or planned cutter homeports with the cutters in bold. In many cases a critical port is also a homeport for cutter(s).
CCGD1:
CCGD5:
CCGD7:
CCGD8
CCGD11:
CCGD13:
CCGD14:
CCGD17:
The Present and Future Coast Guard Fleet:
Bertholf class National Security Cutters:
These ships are only based in three ports, all three of these are potential target ports.
That might suggest that these ports are well protected, but as I have said, these ships don’t spend any time on standby, and when they are in port they are usually down hard.
Honolulu is also a Naval bases and has three Webber class WPCs assigned, so it is about as well protected as any port could be with our current equipment.
The Webber class WPCs:
As I have noted, currently the Webber class are potentially the most important asset for port protection.
Of the 31 potential target ports, these nine have, or we know will have, two or more Webber class cutters assigned.
With four additional FRCs going to Alaska, I have to assume Anchorage, AK will be protected. Its geography protects it to a great extent. It is far up Cook Inlet. Kodiak’s position South of Cook Inlet pushes the US EEZ out, so it is much further than 200 miles from the edge of the EEZ to Anchorage. Homer, at the mouth of Cook Inlet, has been an Island class WPB in the past and may be a Webber class homeport in the future.
These seven potential target ports have, or we know will have, two or more Webber class cutters homeported within 100 nautical miles, offering some degree of protection.
The following 14 potential target ports have no Webber class WPCs assigned or currently planned to be based within 100 nautical miles:
Most likely future Webber Class Homeports: 47 of the planned 64 Webber class cutters have already been paired with their homeports as noted above (including six to go to Bahrain). Of the 17 remaining we know two will go to Astoria OR, and four will go to Alaska. That leaves eleven to potentially protect other ports. Grouped two or three to a port, that means we will have no more than four or five additional Webber class homeports. In my view, the most likely additional ports are:
Where we are naked: Potential target ports that likely will not have a Webber class within 100 nmiles:
The Hudson River Complex is protected to some extent by geography, given the length of its approaches. WPCs at Cape May and New London would provide a degree of protection though both are a bit more than 100 nmi away.
The strong Navy presence in the Chesapeake Bay Complex, VA should provide a degree of protection.
7th District has 8 of the 31 critical ports and 19 of the 58 Webber class homeported in the US (I understand they will get a 20th), but all are in three ports, Miami, San Juan, and Key West, which is not a critical port. Five ports have no Webber class within 100 nautical miles.
There are of course other considerations, but from the perspective of protecting ports we would be much better off redistributing all but three WPCs in Miami and three in San Juan to Charleston (which would also provide a degree of protection for Savannah), Jacksonville, Port Canaveral, and Tampa/St Pete. This would leave Key West without WPCs, but it does look like a good place for OPCs.
We would also have no Webber class within 100 miles of the Mississippi River Complex.
Fortunately it is protected to some extent by the long and relatively difficult passage up the Mississippi River before these ports can be reached. You are not likely to make it up the Mississippi with a ship without getting a pilot. Also Webber class at Pascagoula are only a little over 100 nautical miles from the mouth of the Mississippi.
HECs and MECs and OPCs, Oh My:
There are currently 29 WHECs/WMECs. They are to be replaced by 25 Offshore Patrol Cutters (OPCs). Because of the nature of their operations and scheduling, they are unlikely to respond to a threat from their homeport, but they may be employed locally off shore for fisheries, drug, or Alien Migrant enforcement. Where will they be based?
We could say 25 ships divided among eight districts means three ships in seven districts and four in one. That might not be a bad way to start, but in all likelihood the OPCs will be distributed much as the one remaining WHEC and 28 WMECs are now, but some changes are likely because of tendencies observed of late.
Breaking it down by district even though they are Area assets, I will note how many in the district and what percentage of the current WHEC/WMEC fleet that constitutes.
CCGD1: 4 or 13.8%
CCGD5: 9 or 31%
CCGD7: 7 or 24.1%
CCGD8: 4 or 13.8%
CCGD13: 3 or 10.3%
CCGD17: 2 or 6.9%
If we distributed the 25 OPCs in the same proportion we would have:
But we already know that two OPCs will be based in San Pedro, they probably represent a movement Southward from D13, and there is a good possibility they will be joined by a third OPC.
In the same vain I think we will see one or two fewer OPCs in D5. They might go to D7, but there is also a possibility they could go to PAC Area.
This is what I think we will ultimately see, with destination of three OPCs much less certain. Possible locations for these three are in parenthesis. It is going to be a very long time (Late 2030s) before we see the last three, so much can change.
Historically the Coast Guard has based two thirds of its large cutters in Atlantic Area and one third in the Pacific Area. If that were to be the case, PAC Area should get six OPCs in addition to the six NSCs they have now, and LANT Area should have 19 OPCs in addition to the five NSCs currently planned.
If you look at the distribution of the US EEZ, I think there is a strong case for more ships in the Pacific.
With the increased emphasis on IUU and capacity building in the Western Pacific, we may see up to eight OPCs going to PAC AREA.
Alternative Mission Set:
PAC Area has been very aggressive in the use of their resources for drug interdiction, sending FRCs down to the Eastern Pacific transit zones off Central and South America, but PAC AREA could have more cutter time for operations in the Western Pacific, without adding cutters, if LANT AREA took full responsibility for the Eastern Pacific drug interdiction effort. There are good reasons, that might be desirable.
US Navy Fleet Organization
The Missing Class–Response Boat, Large–the WPB replacement:
All along, I have been saying our cutter are not adequately armed to have a high probability of being able to stop a terrorist controlled vessel. Currently the Webber class WPCs seem to be the most likely craft to be in a position to take on that role, but in many scenarios they simply would not be up to the task. In addition we know that about half the critical ports or port complexes will have no Webber class homeported there so that they might respond most rapidly in the case of an attack.
We still need to replace the 87 foot Marine Protector class WPBs. As we have discussed here and here, properly equipped, a vessel half the size of the Webber class could take on this job.
There were 74 Marine Protector class built. Wikipedia indicates there are 73 currently active and we know there is a proposal to decommission eight in the belief that their missions will be performed by Webber class and response boat, mediums. That would still leave 65.
Assuming we put two WPB replacements in position to protect each of the 31 critical ports, so that we could always have one either on standby or underway near by, it would only require 62. It the Webber class were better armed, and we only needed to protect those critical ports with no Webber class homported there, we would need no more than 34. If we also redistributed the D7 Webber class as suggested we would need only 26.
Geospectrum’s new, compact version of the Towed Reelable Active Passive Sonar (TRAPS) suitable for Unmanned Surface Vessels (USVs)
NavyNews reports that Canadian Company GeoSpectrum has developed a version of their “Towed Reelable Active Passive Sonar” (TRAPS) that is scaled to fit vessels as small as 12 meter Unmanned Surface Vessels (USV).
We talked earlier about an earlier version of this system. If it fits on a 12 meter (39’4″) USV, then it should certainly be able to fit on anything WPB or larger. If we should ever have to go to war, this might be a capability we would want to protect our harbor approaches from submarines. We would probably also want to add an ASW torpedo launching capability.
It might be worth doing some experimentation to see how it works, and if desirable, draw up plans for adding this or a similar system for mobilization. First of course we should take a look at the results of Canada’s tests.
Might also be desirable to have something like this for the Webber class cutters going to PATFORSWA, since the Iranians have a large number of small conventionally powered submarines.
Maybe it could help us find semi-submersibles smuggling drugs as well.
Above: Marketing video for comparable Russian system
The Washington Free Beacon is reporting that China is developing containerized cruise missiles launch systems for a land attack version of its 290 mile range YJ-18 anti-ship cruise missile which is a reverse engineered version of the Russian Klub-K cruise missile.
“China is building a long-range cruise missile fired from a shipping container that could turn Beijing’s large fleet of freighters into potential warships and commercial ports into future missile bases.”
“China operates or is building deep water ports in several strategic locations, including Bahamas, Panama, and Jamaica that could be used covertly to deploy ships carrying the YJ-18C.”
The Washington Free Beason may not be the gold standard in reporting, but I would have been surprised if the Chinese were not developing such systems. The Russians have been marketing such systems for about a decade. The Israelis have launched semi-ballistic missiles from a merchant ship and are marketing such a system.
In China, every enterprise is ultimately an arm of the State, ready to do the States bidding. We have seen their fishing fleet serve as a naval militia, it is likely their merchant marine would also serve military purposes beyond simply carrying cargo. In fact they have announced that that is their intent.
The US Naval Institute blog has a post recommending that the Coast Guard be moved into the Department of Defense.
The most significant part of the post appears to me to be that this concept has been put forward by Representative Duncan Hunter (R-CA), who is the Chair of the Sub-Committee that has oversight of the Coast Guard. Representative Hunter is a Marine Reserve Major who served two tours in Iraq and one in Afghanistan. Having watched him perform in several sub-committee meetings, I have a great deal of respect for his opinions. He would like to see a stronger and better armed Coast Guard.
Personally I see still unrealized potential for the Coast Guard in the Department of Homeland Security and potential problems as well as opportunities in the Department of Defense.
How would the Coast Guard be funded within the DOD? Would it be a separate agency or would it be budgeted with the Department of the Navy?
The Department of Defense (DoD) is responsible for providing the military forces needed to deter war and protect the security of the United States (U.S.). The major elements of these forces are the Army, Navy, Air Force, and Marine Corps. The President is the Commander-in-Chief, while the Secretary of Defense exercises authority, direction, and control over the Department. This includes the Office of the Secretary of Defense, Organization of the Chairman of the Joint Chiefs of Staff, the three Military Departments, the Combatant Commands, the Office of the Inspector General, 17 Defense Agencies, 10 DoD Field Activities, and other organizations, such as the National Guard Bureau (NGB) and the Joint Improvised Explosive Device Defeat Organization (JIEDDO)., Department of Defense organizational chart (December 2013)
Within the DHS budget, the Coast Guard is the third largest component behind FEMA and Customs and Border Protection. It has significant visibility.

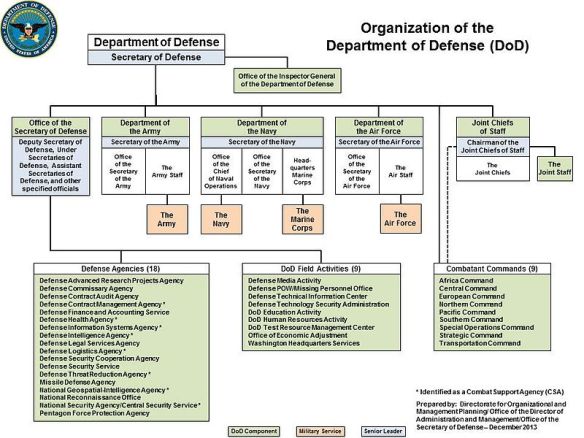

In the DOD organization above, I cannot even find the National Guard Bureau. We might do well because we would be a very small part of the overall budget, or we might simply be too small to attract any attention. I think there is a real possibility that if we were transferred into the Navy Department, the Coast Guard might end up as little more than a Master at Arms Corps.
We should remember that in terms of personnel, while the US Navy (and the DOD) is now much smaller than it was 50 years ago, the Coast Guard is larger. I can recall when the Navy was about 25 times as large as the Coast Guard and the Marine Corps about 8 times as large. Now the Navy is less than eight times as large. The Marine Corps is only 4.4 times as large.
We can talk about how the Congress has not been kind to us, but at least funding has been relatively consistent, and of late there seems to be a recognition of greater need for capital improvements.

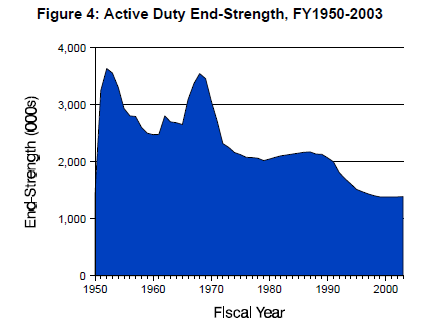

If our personnel end strength had followed the trend of the DOD we would now have fewer than 20,000 active duty rather than over 40,000.
In short, be careful what you wish for.
The US Naval Institute News Service has provided access to the second “Annual Report to Congress for the Littoral Combat Ship (LCS) Mission Module Program.” Some of these systems should be of interest to the Coast Guard, either as regular equipment for peacetime law enforcement and counterterrorism missions, for temporary use, as in the case of a naval mining incident, or as wartime add-ons if the Coast Guard is mobilized for a major conflict.
Keep in mind, the procurement cost of these systems would presumably come out the Navy budget.
Mine Countermeasures Mission Package
The Mine Countermeasures (MCM) Mission Packages (MP) has already been addressed. 24 are planned including nine to be built for “Vessels of Opportunity.” These nine extra packages probably meet any peacetime augmentation requirement and provide a reserve for mobilization. Testing is expected to continue through FY 2022. Production is expected to continue well into the future as less than half the packages will have been delivered by FY2023.
ASW Mission Packages for NSCs and OPCs
An earlier post discussed the possibility of using mission modules and Navy reservist to augment large cutters. In a protracted conflict against a near peer naval power like Russia or China, our large patrol ships are most probably going to be needed to perform open ocean ASW escort duties.
Only ten ASW Mission Packages are planned. Initial Operational Capability (IOC) is expected in FY 2019, but testing will continue through 2020. The Multi-Function Array is already a fielded system. Deliveries are expected to begin in FY2021 at a rate of two systems per year. If that rate is continued, the ten planned systems will be complete in 2025.
At an estimated cost of less than $20M the ASW Mission Package is the least expensive of the three types of Mission Packages. Adding this system as a mobilization capability or perhaps even as a peacetime capability to 35 or more large cutters would provide a higher return on investment than just about any other Naval program.
It might even help us locate semi-submersibles.
Vertical launch Hellfire
As I have noted before, the Coast Guard has a potential need to be capable of countering terrorist efforts to use a wide spectrum of vessels to make an attack. These craft range between small, fast, highly maneuverable boats on one extreme, to large ocean going vessels at the other. Our ability to counter these threats must be widely available, quickly effective, and have both a probability of success approaching 100% and do so with minimal danger to innocents who may be in the vicinity. Guns do not meet these criteria.
Hellfire missile have the potential to meet these criteria, at least against the lower half of the threat spectrum, and, using more than one round, might have a degree of success even against the largest vessels.
Apparently the SSMM Longbow Hellfire testing is going well, with 20 out of 24 successful engagements, and there’s a software fix for the root cause of the 4 failures.
ATLANTIC OCEAN—A Longbow Hellfire Missile is fired from Littoral Combat Ship USS Detroit (LCS 7) on Feb. 28, 2017 as part of a structural test firing of the Surface to Surface Missile Module (SSMM). The test marked the first vertical missile launched from an LCS and the first launch of a missile from the SSMM from an LCS. (Photo by U.S. Navy)
A recent US Naval Institute News Service report quoted LCS Mission Modules Program Manager Capt. Ted Zobel “all of our mission packages…are finishing up development, proceeding into test, and then from test into production and ultimately deployment.”
“…surface-to-surface missile module (SSMM) will add a Longbow Hellfire missile to increase the lethality of the LCS. Testing begins this month on USS Milwaukee (LCS-5) and will move to USS Detroit (LCS-7) over the summer. Testing should wrap up by December, Zobel said, with Detroit planning to bring the SSMM with it on its maiden deployment about a year from now. Written testimony from the Navy at a March 6 House Armed Services Committee hearing states that IOC is planned for Fiscal Year 2019.”
The Surface to Surface Mission Module (SSMM) planned for the Littoral Combat Ship, seen above, can store and launch up to 24 missiles. 24 missiles would weigh about 2,500 pounds. As a very rough estimate, Its foot print appears to be about 9×12 feet (late note–a little photo analysis suggest the three mission module positions on each LCS are about 15-16′ square), probably not too large for an NSC, OPC, or icebreaker, but probably too large for the Webber class WPCs where I really think we really need the capability. They are after all, much more likely to be in the right place, at the right time. For them we probably need a smaller system.
In the video above, beginning at time 2m58s there is a model of a 12 meter unmanned surface vessel mounting a four tube Hellfire vertical launch system. Knowing that the Hellfire is only 7 inches in diameter and 64 inches long, it appears this installation would have a footprint of no more than 6×8 feet and probably would be no more than seven feet high. It seems likely we could find a place for one or two of these on each Webber class and at least one when we build the replacements for the 87 footers.
I have often seen missiles compared unfavorably to guns, based on the cost of the projectiles, but cost of providing a system like Hellfire pales in comparison to the cost of a medium caliber gun, its ammunition allowance, and the maintenance, training, and technicians required to keep it operational. Compared to the guns we have used in the past:
While I have never seen it claimed official, I have seen reports that Hellfire can be used against slower aircraft such as helicopters and UAVs.
30 mm Mk46 Gun Mission Module (GMM)
Gun Mission Module by Northrop Grumman
The “Gun Mission Module” (GMM) could be one way to arm the icebreakers relatively quickly when needed, while allowing the option of removing the weapons before going to Antarctica if desired.
Production of these units is quickly running its course, and if we want to use these on the icebreakers, it may be desirable to have our needs added to the production schedule before the production is shut down. The last two are expected to be delivered in FY2020.
How important this is will depend on the Coast Guard’s intentions and the alternatives.
Setting up the installations in the same format as found on the LCSs means improvements or alternative systems developed to LCS systems could be easily incorporated in the icebreakers as well.
On the other hand, the included 30mm Mk46 gun weapon system is not limited to the LCSs. It is or will be mounted on the three Zumwalt DDG-1000 class destroyers, 13 San Antonio (LPD-17) class, and probably 13 LX(R)/LPD-17 Flight II class still to be built, about 58 mounts in addition to the 20 planned for the LCSs.
It doesn’t look like it would be too difficult to remove or re-install just the gun mount (seen below) if that would meet our needs. It would of course require a dedicated space, permanent installation of supporting equipment, and a way to seal the opening for the mount long term when the mount is removed.
Although it is not as effective as the Mk46 mount, because of the smaller 25 mm gun currently used, the Mk38 Mod2/3 is also an alternative, and has the advantage of already being in the use with the Coast Guard. It is even more widely used, “As of 2016, 307 MK 38 MOD 2 systems have been delivered. There are 50 MK 38 MOD 3s on contract. The total POR (program of record–Chuck) is for 517 systems.”
Still the 25mm gun is markedly inferior to the 30mm in that its effective range is considerably less and the individual projectiles are far less potent. The Mk46 mount also has many more rounds on the mount compared to the Mk38 mod2/3. Upgrading the Mk38s to mount 30mm guns would address much of the current inferiority.
The inferiority of the Mk38 would also be much less of a concern if the Icebreaker had an additional, more powerful anti-surface weapon system, like the Hellfire Surface to Surface Missile Module or Anti-Surface Cruise Missiles. These might be useful if it is ever necessary to provide Naval Surface Fire Support (NSFS) in the Arctic or Antarctic.
Note the video does not really start until approximately time (17m08s).
This is going to be a hodgepodge, but it is all about the 2019 budget. There is a video above. There will be my own observations on the video. There will be a brief outline of the Procurement, Construction, and Improvement (formerly AC&I) portion of the budget copied from the “Summary of Subject Matter.” At the tail end I have reproduced the Commandant’s prepared statement that was presented at the hearing
You can look here for the FY2018 budget request. I haven’t found the actual final FY2018 as enacted.
ABOUT THE VIDEO
Above is a video of a 14 March, 2018, House Coast Guard and Maritime Transportation Subcommittee. The commandant testified as well as Master Chief Steven W. Cantrell, Master Chief Petty Officer of the Coast Guard, United States Coast Guard, Rear Admiral Mark H. Buzby, USN, Ret., Administrator, Maritime Administration, and The Honorable Michael A. Khouri, Acting Chairman, Federal Maritime Commission
You can find more information including all the prepared statements and the subcommittee chairman’s opening remarks here.
MY OBSERVATIONS
This subcommittee has been highly supportive of the Coast Guard, and we see the same in this hearing. The chairman, Duncan Hunter (R, CA), (17m30s) expressed his opinion that the Coast Guard was not fairing well under the Department of Homeland Security (DHS). He also noted the apparent obstruction of measures of effectiveness by DHS.
Ranking member, John Garamendi (D, CA), (22m) noted that there had been a welcomed significant bump in Coast Guard funding, but questioned if this would continue or would it prove an anomaly. He noted that attempting to stop drug trafficking would be better served by putting more money into the Coast Guard than by building a border wall.
(29m30s) The Coast Guard’s unfunded priority list, submitted long ago is still hung up in the administration.
(33m30s) MCPO Cantrell addressed quality of life concerns.
(55m30) Ranking member Garamendi noted the addition of $720M added to the budget for Heavy Polar Icebreaker(s) (HPIB) in addition to $30M already in the budget, and stated that he saw this as money for the second icebreaker because the DOD was not relieved of their obligation to fund a HPIB.
(1h03m) Commandant expressed his confidence in the helicopter life extension programs expected to keep them in operation until 2033 when the Coast Guard would be able to join in the Army lead Future Vertical Lift program. He suggested that a single helicopter type might be able to replace both the MH-65 and MH-60s.
(1h07m) Commandant answering a question about AMIO in the Caribbean noted that the Webber class Fast Response Cutters (FRC) we working well in this role, but there is a shortage of ISR assets that he believed might be addressed by land based unmanned air systems (UAS).
(1h17m) In answer to a question about replacement of the Island Class six 110 foot Island class cutters currently assigned to CENTCOM as PATFORSWA, the Commandant, noting the 110s would time out in 2022, said this has been discussed at the highest levels with the Navy and there was a possibility that Webber class replacements could be funded by the Navy. Interestingly, he also noted that the Navy’s Cyclone class patrol craft would time out in 2023 suggesting to me perhaps he believes the Navy is considering a version of the Webber class.
(1h39m) Concern was expressed that while the Commandant has consistently expressed a need for $2B annual in the AC&I account (now PC&I) and $1.8B was provided in FY2018 and $1.9B in FY2019, that the current projection is only $1.4B in FY2020.
PROCUREMENT, CONSTRUCTION, & IMPROVEMENT BUDGET
There is a good review of the FY2019 budget in the “Summary of Subject Matter.”
There is also a note on a change in accounting procedure.
In FY 2019, the Coast Guard will transition to the DHS Common Appropriations Structure (CAS). Accordingly, activities funded through the previous Operating Expenses, Reserve Training, Environmental Compliance and Restoration, and Medicare Eligible Retiree Health Care Fund Contribution are included as part of the new Operations and Support (O&S) account. In addition, acquisition personnel costs previously funded through the Acquisition, Construction, and Improvements account ($118.2m in the FY2018 budget request–Chuck) are included as part of the O&S account. The Acquisition, Construction, and Improvements account transitions into the Procurement, Construction, and Improvements account and the Research, Development, Test and Evaluation account becomes the new Research and Development account.
Below is the summary information on the PC&I section that replaces the AC&I portion of the budget.
- Procurement, Construction, and Improvements (previously Acquisitions, Construction, and Improvements)The President requests $1.89 billion for the Procurement, Construction, and Improvements (PC&I) account, a $516.7 million (or 37.7 percent) increase over the FY 2017 enacted level. The PC&I account funds the acquisition, procurement, construction, rebuilding, and physical improvements of Coast Guard owned and operated vessels, aircraft, facilities, aids-to-navigation, communications and information technology systems, and related equipment.The FY 2019 budget request includes $1.76 billion for the acquisition of aircraft, vessels, and the continued build-out of Command, Control, Communications, Computer, Intelligence, Surveillance, and Reconnaissance (C4ISR) systems. This represents an increase of $597.1 million (or 51.7 percent) from the FY 2017 enacted level. The budget request includes:$30 million for the construction of a Heavy Polar Icebreaker. The FY 2019 Budget Addendum included an additional $720 million, for a total of $750 million;
- $65 million to conduct Post Delivery Activities on National Security Cutters (NSC) 7 through 9;
- $240 million for the production of four Fast Response Cutters (FRC);
- $400 million for the construction of the second Offshore Patrol Cutter (OPC) and to facilitate evaluation of the Long Lead Time Materials for OPC 3. The OPCs will replace the Service’s aging 210-foot and 270foot Medium Endurance Cutters (MEC);
- $80 million to fund the requirement to establish logistics for 14 newly acquired HC-27J aircraft. The request funds HC-27J Asset Project Office activities, logistics, training, and engineering studies to assess and resolve aircraft obsolescence issues;
- $20 million for the continued modernization and sustainment of the HH-65 Dolphin helicopter fleet;
- $23.3 million for C4ISR design, development, and integration; and
- No funding for the Alteration of Bridges program in FY 2019. The program did not receive funding in FY 2017 or FY 2016. Established by the Truman-Hobbs Act of 1940 (33 U.S.C. 511 et. seq.), the Alteration of Bridges program authorizes the Coast Guard to share with a bridge’s owner the cost of altering or removing privately or publicly owned railroad and highway bridges that are determined by the Service to obstruct marine navigation.
The budget requests $135 million to construct or renovate shore facilities and aids-to-navigation. This request is a $35.5 million (or 26.3 percent) increase over the FY 2017 enacted level. The Coast Guard currently has a backlog of 95 prioritized shore facility improvement projects with an estimated combined cost of over $1.5 billion
____
THE COMMANDANT’S PREPARED TESTIMONY
Below you will find “TESTIMONY OF ADMIRAL PAUL F. ZUKUNFT COMMANDANT, U.S. COAST GUARD ON “THE COAST GUARD’S FISCAL YEAR 2019 BUDGET REQUEST” BEFORE THE HOUSE COAST GUARD AND MARITIME TRANSPORTATION SUBCOMMITTEE” which I have copied in full.
Introduction
Mr. Chairman and distinguished members of the Committee, I appreciate the opportunity to testify today. Thank you for your enduring support of the United States Coast Guard, particularly the significant investments provided in the FY 2017 Consolidated Appropriations Act, recent Hurricane Supplemental, and ongoing deliberations to support our FY 2018 and FY 2019 President’s Budget requests.
As the world’s premier, multi-mission, maritime service, the Coast Guard offers a unique and enduring value to the Nation. The only branch of the U.S. Armed Forces within the Department of Homeland Security (DHS), a federal law enforcement agency, a regulatory body, a first responder, and a member of the U.S. Intelligence Community – the Coast Guard is uniquely positioned to help secure the maritime border, combat transnational criminal organizations (TCO), and safeguard commerce on America’s waterways.
The Coast Guard’s combination of broad authorities and complementary capabilities squarely aligns with the President’s national security and economic prosperity priorities; furthermore, it offers an agile toolset to address the Nation’s most pressing challenges. Appropriately positioned in DHS, the Coast Guard is a military service and a branch of the Armed Forces of the United States at all times.1 We are also an important part of the modern Joint Force2 and currently have forces assigned to each of the five geographic Combatant Commanders, as well as Cyber Command.
As demonstrated in the 2017 record hurricane season, the Coast Guard is the Nation’s “maritime first responder” and plays a leading role in executing the National Response Plan (NRP) for disaster situations. Our ability to rapidly surge in response to emerging threats or contingencies are critical to success across the spectrum of missions we prosecute.
We live in an increasingly volatile, uncertain, complex, and ambiguous world. Rapid technological advancement, increasing globalization, and intensifying threats from state and nonstate actors alike challenge international norms and threaten global governance.
To ensure we meet the demands of today while preparing for tomorrow, the Coast Guard is guided by a five-year Strategic Intent and suite of regional and functional strategies that drive our Service’s operations and investments.
These strategic efforts are informed by the National Security Strategy and applicable DHS strategies, and are coordinated to augment Department of Defense (DoD) priorities. Using these strategies as guideposts, leveraging the intelligence community, and employing a risk-based approach to focus our limited resources allows us to address maritime threats with the greatest precision and effect.
Strategic Effects
Fueled by the Service’s unique authorities and capabilities, our Western Hemisphere Strategy continues to yield large-scale successes in our counter-drug mission. The Coast Guard’s persistent offshore presence and associated interdiction efforts sever the supply lines of criminal networks where they are most vulnerable—at sea. Leveraging over 30 multilateral and bilateral agreements with a host of government organizations, the Coast Guard’s long-term counter-TCO efforts promote stability and strengthen the rule of law throughout these regions. Working with interagency partners, the Coast Guard seized 223 metric tons of cocaine and detained and transferred 606 smugglers for criminal prosecution in FY 2017. Highlighting our record-breaking mission performance for drug interdiction was the STRATTON’s offload of over 50,000 pounds of illicit narcotics, with an estimated street value of over $6.1 billion. This was a result of collaborative efforts between four U.S. Coast Guard cutters, DHS maritime patrol aircraft, and a U.S. Navy ship in over 25 separate interdictions. Beyond the important task of removing cocaine from the illicit system that gets it to U.S. streets, prosecuting smugglers facilitates deeper understanding of TCOs and ultimately helps our unified efforts to dismantle them.
Without question, National Security Cutters (NSC) have been a game-changer not only for our drug interdiction and counter-TCO operations in the southern maritime transit zone, but also in contributing to other national security priorities, such as supporting DoD Combatant Commander requirements across the globe and projecting sovereign rights in the Arctic.
Looking forward, the Offshore Patrol Cutter (OPC) will provide the tools to more effectively enforce Federal laws, secure our maritime borders, disrupt TCOs, and respond to 21st century threats. Continued progress on this acquisition is absolutely vital to recapitalizing our aging fleet of Medium Endurance Cutters (MECs), some of which will be over 55 years old when the first OPC is delivered in 2021. In concert with the extended range and capability of the NSC and the enhanced coastal patrol capability of the Fast Response Cutter (FRC), OPCs will be the backbone of the Coast Guard’s strategy to project and maintain offshore presence.
As one of the five Armed Forces, the Coast Guard deploys world-wide to execute our statutory Defense Operations mission in support of national security priorities. On any given day, 11 cutters, two maritime patrol aircraft, five helicopters, two specialized boarding teams, and an entire Port Security Unit are supporting DoD Combatant Commanders on all seven continents. In the Middle East, our squadron of six patrol boats continues to police the waters of the Northern Arabian Gulf in close cooperation with the U.S. Navy, promoting regional peace and stability. Likewise, as one of the principal Federal agencies performing detection and monitoring in the southern maritime transit zone, the Coast Guard provides more than 4,000 hours of maritime patrol aircraft support and 2,000 major cutter days to DoD’s Southern Command each year.
In the high latitudes, the Arctic region is becoming increasingly accessible at a time when global interests in energy, clean water, and subsistence continue to intensify. The Coast Guard is committed to the safety, security, and environmental stewardship of the Arctic, and we will remain closely engaged with our partners, including Russia, via the Arctic Coast Guard Forum. By focusing on collaboration over conflict, we are promoting governance and building a shared approach to prevention and response challenges in the region.
Meanwhile, the 42-year old POLAR STAR recently completed another Operation DEEP FREEZE patrol in Antarctica. Just one major casualty away from leaving the Nation without any heavy icebreaking capability, POLAR STAR supported U.S. strategic interests and the National Science Foundation by breaking a navigable shipping lane to deliver fuel and critical supplies to the U.S. base at McMurdo Sound.
I appreciate your support for the $150 million appropriated in Shipbuilding and Conversion, Navy (SCN) funding in the FY 2017 Omnibus. This is a great step forward to secure our future in the Polar Regions and finally recapitalize the Nation’s icebreaker fleet. This funding coupled with the $750 million in the FY 2019 President’s Budget, would enable the Coast Guard to award a contract for detail design and construction and deliver the first new heavy polar icebreaker in 2023. These critical investments reflect our interests and standing as an Arctic Nation and affirm the Coast Guard’s role in providing assured access to the Polar Regions.
At the same time the Service was conducting counter-drug missions in the Eastern Pacific and projecting sovereign rights in the Arctic, the Coast Guard also launched one of the largest responses in history during a historic 2017 hurricane season. Over a five week period, Hurricanes HARVEY, IRMA, MARIA, and NATE impacted over 2,540 miles of shoreline3, and Coast Guard men and women in helicopters, boats, cutters, vehicles and on foot rescued over 11,300 people and over 1,500 pets.
During our 2017 hurricane response, the Coast Guard resolved over 1,269 aids to navigation discrepancies, handled 290 pollution cases, located and assessed more than 3,623 grounded vessels, with more than 1,585 removed to date. Within hours after each storm’s passage, Coast Guard damage and recovery assessment teams were on-scene determining the status of ports and waterways, leveraging electronic aids to navigation when feasible to facilitate the rapid reopening of key ports and waterways, and assessing impacts to Coast Guard facilities and capabilities. This enabled a vital portion of the country’s waterways to reopen, helping maintain our Maritime Transportation System (MTS) which contributes $4.6 trillion annually to our Gross Domestic Product.
The daily activities of Coast Guard men and women are heroic, as they support nearly every facet of the Nation’s maritime interests, protect our homeland, and secure our economic prosperity. In addition to the hurricane responses, the Coast Guard prosecuted over 16,000 search-and-rescue cases and saved more than 4,200 lives; interdicted more than 2,500 undocumented migrants; completed over 9,100 Safety of Life at Sea safety exams on foreign vessels; and responded to over 12,200 reports of pollution incidents.
Beyond operations, we earned our fifth consecutive clean financial audit opinion – the only Armed Service that can make such a claim. Further, our major acquisition programs and product lines are delivering new assets on schedule and on budget that have proven to meet our operational requirements. To better guide our modernization, we developed a Long Term Major Acquisitions Plan (LTMAP), a roadmap to field modern platforms to address 21st century threats. We have been working with the Administration to finalize the details of the LTMAP and are committed to delivering this report to Congress as soon as possible.Our greatest strength is undoubtedly our people. Coast Guard operations require a resilient, capable workforce that draws upon the broad range of skills, talents, and experiences found in the American population. In FY 2019, the Coast Guard will maintain a proficient, diverse, and adaptable workforce that responds effectively to changing technology, an increasingly complex operating environment, and dynamic partnerships. Together, modern platforms and a strong, resilient workforce will maximize the Coast Guard’s capacity to meet future challenges.
Conclusion
History has proven that a responsive, capable, and agile Coast Guard is an indispensable instrument of national security. Funding 21st century Coast Guard platforms and people are especially prudent investments given today’s challenging fiscal environment. I firmly believe no other investment will return more operational value on every dollar than the extraordinary men and women of the U.S. Coast Guard—which includes 48,000 Active Duty and Reserve members, 8,500 civilians, and over 27,000 volunteer members of the Coast Guard Auxiliary. As illustrated by our sustained response to an historic hurricane season, another record year removing illicit narcotics from the maritime approaches, and unique support to Combatant Commanders around the globe; our ability to rapidly surge resources to emerging threats continues yield unprecedented results for the Nation.
With the continued support of the Administration and Congress, the Coast Guard will continue to live up to our motto – Semper Paratus – Always Ready. Thank you for all you do for the men and women of the Coast Guard.
CCGD1:
CCGD5–four FRCs
CCGD7–Two NSCs, 18 FRCs (six in Key West in addition to those indicated below)
CCGD8–Five FRC
PACAREA
CCGD11–Four NSCs, two (assumption) FRCs
CCGD13–Two FRCs planned for Astoria, OR
CCGD14–Two NSCs, Six FRCs, Two in Honolulu, + Four planned
CCGD17–Six FRCs, Two in Ketchikan, + Four more planned
Next we will talk about where the remaining NSCs and FRCs, and where all the OPCs might be going.
Bertholf Class National Security Cutters:
In 2000 the twel
ve 378s were distributed ten to the Pacific and two to the Atlantic. Homeports in 2000 were Charleston (2), Seattle (2), Alameda (4), and Honolulu (2). The program of record was for eight National Security Cutters, but ten have been funded and it appears there may be an eleventh. Homeports for the first eight include four in Alameda, CA, two in Charleston, SC, and two in Honolulu, HI. I don’t expect that there will be any other homeports assigned. It is likely that numbers nine and ten will go to Honolulu and Charleston, bringing them to three each. This will give LANTAREA more very long range assets both to support drug interdiction and capacity building in West Africa.
Number eleven will probably go to the Pacific. Alameda could probably accept it, but I suspect a growing recognition of responsibilities in the Western Pacific will mean, if procured, it will go to Honolulu, if not initially, at least by 2035. .
Offshore Patrol Cutters:
I don’t think OPCs will go to the same ports as the NSCs. Based on where other WHECs or multiple WMECs were based (and an unused naval base at Corpus Christi), likely homeports for OPCs include:
If we assume at least three ships in each, that accounts for 21. What of the remaining four? They could be added to the ports above or perhaps added to other ports.
I think a case can be made for putting a higher percentage of the large cutters in PACAREA. After all, less than 16.2% of the US Exclusive Economic Zone is in LANTAREA’s area of operation.
Currently there are only four medium endurance cutters in the Pacific and 24 in the Atlantic. There are only 25 OPCs in the program of record. Obviously this will not be a one for one replacement
In the year 2000 PACAREA had 16 large patrol cutters (10 WHECs and six WMECs), currently they have 13 (five NSCs, four WHECs, and four WMECs). Considering the apparent growing responsibilities of PACAREA, the projected maximum of no more eight NSCs, and the ability of the Webber class to assume some of the fisheries protection duties of the WMECs in the Atlantic, it is likely PACAREA WMECs will be replaced with OPCs on a better than one to one basis that would have left PACAREA with only 12 large patrol ships. I suspect PACAREA will be assigned at least six OPCs, and that it should have at least nine (17 of the total of 36 large ships (8 NSCs and 9 OPCs), if we get 11 NSCs homeported as above).
It is extremely likely at least two OPC will go to Kodiak to replace 378 foot WHEC Douglas Munro and 283 foot WMEC Alex Haley. It seems likely that this could ultimately grow to three OPCs. Locating them close to ALPAT areas.
San Diego was homeport to two 378s. It is closer to the Eastern Pacific drug transit zones than other Pacific ports, and it has both excellent training facilities and shipyards.
Seattle seemed a likely location for OPCs but since it is the likely homeport for three new Heavy Polar Icebreakers as well as USCGC Healy (and/or other medium icebreakers) it appears they may not have the room.
Assuming three OPCs in Kodiak and three in San Diego, if additional OPCs go to the Pacific where would they go? Additional ships in San Diego or nearby Terminal Island in San Pedro (Long Beach) appear likely.
This leaves 16 to 19 OPCs to be assigned to LANTAREA. Three each in Boston, MA, Portsmouth, VA, Key West, FL, St. Petersburg, FL, Corpus Christi (Naval Station Ingelside), TX would account for 15, leaving only one to four to find a home. One more port, perhaps Miami, or just add ships to the ports above. Certainly there is space in Portsmouth and Little Creek, VA.
I will assume six in San Diego and/or San Pedro (Long Beach), four in Portsmouth, VA and three each in Boston, Key West, FL, St. Petersburg, FL, Corpus Christi, TX, and Kodiak, AK.
CGD5…four OPCs…four Webber class
CGD7…three NSCs…three OPCs…21 Webber class
CGD8
CGD11
CGD13
CGD14
CGD17
How does this square with the list of critical ports? It is a good start, but there are too many ports between Pascagoula and Galveston. and between Charleston and Miami. Either we need more Webber class or we need the smaller WPBs that will replace the 87 foot Marine Protector class WPBs to also be able to also protect these ports.
Having ships in the right place is not enough. As I’ve noted several times, I don’t think any of our ships are adequately armed to perform the Maritime Security role, meaning they need to be able to counter both small, fast, highly maneuverable craft and larger vessels. I don’t really think the guns we have now are capable of reliably doing either. Hopefully sometime before 2035 our vessels will be properly equipped for the Homeland Security mission.
MSRT anti-terrorism training
The Modern War Institute at West Point has an excellent exploration of what the new National Security Strategy could mean to the Coast Guard, written by Cdr. Kevin Duffy, USCG. It says everything I had hoped to say about this new direction and more.
“With the release of the 2017 National Security Strategy, however, the Coast Guard has been presented with an opportunity to maximize its value to a government that appears to be taking a different view on which activities and capabilities should be emphasized in the national security realm.
“…As the NSS indicates that such activities in support of its homeland and border security goals will receive “advanced technology [and] the employment of additional personnel,” smart adjustments by the Coast Guard could well bolster the case for force expansion and increased interagency support in order to continue and expand its efforts.
“…Under this same homeland umbrella, the NSS likewise stresses the importance of transportation security and domestic resilience—both areas in which the Coast Guard can embrace leadership roles.”
“…In terms of domestic resilience, the Coast Guard has expansive disaster response and incident command capabilities and responsibilities for maritime incidents, and would be a natural leader in working with industry and state and local partners to enhance capabilities in the NSS’s identified areas of risk management, planning, preparedness, and information sharing.
“… The fact that this NSS explicitly acknowledges the links between terrorist networks and criminal, drug, and “other irregular threats” should not go unnoticed: it gives the Coast Guard the opportunity to emphasize its unique capabilities, partnerships, and successes in this realm. References to threats and operations “below the level of conventional military conflict” or “below the threshold of military conflict” appear four times in this strategy. If that’s a niche that the government now wants to emphasize, the Coast Guard needs to be in the vanguard of associated efforts.
“…Specifically, the idea of a squadron of Coast Guard patrol boats dedicated to operations in Central America has been favored by Coast Guard leadership in recent years. Perhaps the initiatives that this NSS envisions as being necessary to disrupt criminal networks (and, by extension, illicit actors including terrorists) will provide the needed justification to make it a reality.
“…There has perhaps never been a better opportunity for the Coast Guard to assert itself in terms of its national security roles, whether in protecting the nation’s borders or operating in the cyber realm, in protecting maritime infrastructure or safeguarding the domestic energy sector, in leading the effort to make ports resilient or disrupting criminal and terrorist networks throughout the Western Hemisphere. With this in mind, the service should intelligently respond to the 2017 NSS by reforming and articulating the impact of current efforts and refocusing or innovating in areas that it did not previously emphasize. In this way, the Coast Guard can usher in an era of more robust and effective operations in the national security sphere, making the most of its unique nature in order to protect the country on a host of important fronts.
I have picked out on a small part of this post. Please take a look.
It seems, after a rocky start, the Coast Guard has gotten the President’s attention, and I don’t think he will listen blindly to GAO’s preconceptions of the Coast Guard’s place in the National Security apparatus. It truly may be time to take the Homeland Security missions seriously.
Chuck Hill's CG Blog
