New 40 mm Gun

Posted on October 21, 2016 by Chuck Hill

Thales RAPIDSeaGuardian Naval Gun System

Navy recognition is reporting the announcement of a new 40mm naval gun system, based on an existing land based system (pdf). It is claimed to be “a new generation CIWS effective against super sonic seaskimming missile thanks to the airburst ammunition, as well as against asymmetric threats…” while having about the same “footprint and weight as a 25mm system.”

The system is interesting, but the star of the show is the gun and its innovative ammunition. The ammunition is “Case Telescoped” meaning that the shell is embedded in the casing and surrounded by the propellent. The gun and its ammunition are products of CTA International, an equal-shares joint venture company between defence companies Nexter (France) and BAE Systems. The resulting round is very short and shaped like a cylinder rather than the typical double tapered shape of most fixed (one piece) ammunition.

The short length of the ammunition means that the portion of the gun inside the mount can be very compact. In the illustration below, the 25mm M242 Bushmaster used in the Mk38 mount is at top right and the Case Telescoped (CT) 40mm is at the bottom right. It’s very compact breech mechanism is apparent.

Image source: thinkdefence.co.uk

If this gun could replace our 25mm guns on the Webber class WPCs and the Offshore Patrol Cutters, either by replacing the mount or perhaps by replacing the gun in the Mk38 mod2/3 mounts (also a BAE product), it would give us improvements in range, accuracy, impact, and particularly penetration. Rates of fire for the two systems are the same.

Range:

The effective range of the Mk38 has been variously reported as 2500 or 3000 yards. This has been a matter of concern to me because when approaching a suspicious vessel that might be being used to make a terrorist attack, I believe a cutter should remain at a distance such that improvised armaments cannot target specific critical equipment on the cutter (like its one gun mount). Improvised armaments might include heavy machine guns, anti-tank guided missiles, or Soviet era anti-aircraft or anti-tank guns of up to 130mm. From my observations and research, in order to preclude targeting critical systems, the cutter should initially approach no closer than 4,000 yards while its boarding party investigates. .

The NavyRecognition post reports a claim of 4,000 meters (4,373 yards) for CTA’s 40mm. While I have not been able to find a claimed max range for the CTA 40mm, the maximum range for the ballistically similar Bofors 40mm/70 is 13,675 yards (12,500 m). The M242 25mm used in the current Mk38 mod2 has a max range of 7,450 yards (6,800 m). Assuming the effective range is proportional to the maximum range, the CTA 40mm should be able to effectively engage from beyond 4000 yards (3,659m).

Penetration:

The image below, from thinkdefence, shows a comparison of effectiveness against armor using armor piercing fin stabilized fin stabilized discarding sabot (APFSDS) rounds.

To me, greater armor penetration translates into being able to penetrate the hull and go on to wreck a larger diesel engine than the smaller round.

As far as I can tell, while there is an armor piercing fin stabilized discarding sabot (APFSDS) round for the 25mm, the Mk110 57mm has no round comparable to the APFSDS round offered for the CT 40mm, which has a muzzle velocity of 1,640 meters/second or approximately 5,379 feet/second. The 57mm round would explode shortly after penetrating the skin of the ship, likely before it reached the engine.

Impact:

Because the 40mm round is about twice as big as the 25mm round, its effective radius is considerably larger.

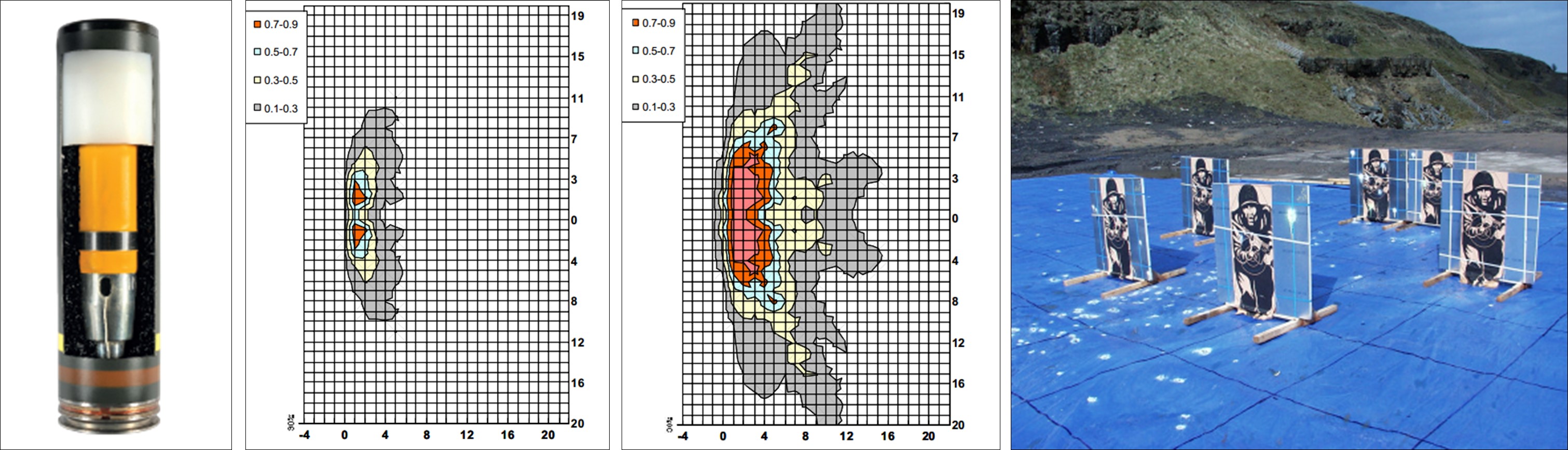

The image below (also from Thinkdefence) shows a fragmentation comparison between a 30mm airburst round (left) and the 40mm GPR-AB (40mm airburst). The lethal area for the airburst nature at 1,500m is 125m2. Apparently there is no airburst projectile for the 25mm because it is considered to small to be effective.

Is this gun really ready for “primetime?”

Our friend at thinkdefence.co.uk has done an extensive examination of the development of this weapon.

The gun has been adopted by the British Army for installation on two types of armored vehicles and the French are also planning on using it in one of their armored vehicles.

Apparently the gun is a success and will probably find additional application, including, hopefully, a version of the Mk38.

“AUGMENT NAVAL FORCE STRUCTURE BY UPGUNNING THE COAST GUARD”–CIMSEC

Posted on October 7, 2016 by Chuck Hill

This is a post I wrote for CIMSEC for their “Distributed Lethality Week,” but their editor thought it would fit better in their “Naval Force Structure Week.” Had I known the topic, I might have spent more time on ASW.

The Navy has been talking a lot about distributed lethality lately, and “if it floats, it fights.” There is even talk of mounting cruise missiles on Military Sealift Command (MSC) ships, even though it might compromise their primary mission. But so far there has been little or no discussion of extending this initiative to include the Coast Guard. The Navy should consider investing high-end warfighting capability in the Coast Guard to augment existing force structure and provide a force multiplier in times of conflict. A more capable Coast Guard will also be better able to defend the nation from asymmetrical threats.

Why Include the Coast Guard?

A future conflict may not be limited to a single adversary. We may be fighting another world war, against a coalition, perhaps both China and Russia, with possible side shows in Africa, the Near East, South Asia, and/or Latin America. If so, we are going to need numbers. The Navy has quality, but it does not have numbers. Count all the Navy CGs, DDGs, LCSs, PCs and PBs and other patrol boats and it totals a little over a hundred. The Coast Guard currently has over 40 patrol ships over 1,000 tons and over 110 patrol craft. The current modernization program of record will provide at least 33 large cutters, and 58 patrol craft of 353 tons, in addition to 73 patrol boats of 91 tons currently in the fleet, a total of 164 units. Very few of our allies have a fleet of similar size.

point-league-market-time — Coast Guard 82 foot patrol boats interdicted coastal traffic off South Vietnam. (USCG Photo)

Coast Guard vessels routinely operate with U.S. Navy vessels. The ships have common equipment and their crews share common training. The U.S. Navy has no closer ally. Because of their extremely long range, cutters can operate for extended periods in remote theaters where there are few or even no underway replenishment assets. The Coast Guard also operates in places the USN does not. For example, how often do Navy surface ships go into the Arctic? The Coast Guard operates there routinely. Virtually all the U.S. vessels operating with the Fourth Fleet are Coast Guard. There are also no U.S. Navy surface warships home based north of the Chesapeake Bay in the Atlantic, none between San Diego and Puget Sound in the Pacific, and none in the Gulf of Mexico with the exception of mine warfare ships.

In the initial phase of a conflict, there will be need to round-up all the adversaries’ merchant ships and keep them from doing mischief. Otherwise they might lay mines, scout for or resupply submarines, put agents ashore, or even launch cruise missiles from containers. This is not the kind of work we want DDGs doing. It is exactly the type of work appropriate for Coast Guard cutters. Coast Guard ships enjoy a relatively low profile. Unlike a Carrier Strike Group or Navy SAG, they are less likely to be tracked by an adversary.

If we fight China in ten to twenty years, the conflict will likely open with China enjoying local superiority in the Western Pacific and perhaps in the Pacific in general. If we fight both China and Russia it may be too close to call.

Platforms

The National Security Cutter (NSC)

This class of at least nine and possibly ten, 418 foot long, CODAG powered, 28 knot ships, at 4,500 tons full load, are slightly larger than Perry-class frigates. Additionally they have a 12,000 nautical mile cruising range. As built they are already equipped with:

Navy certified helicopter facilities and hangar space to support two H-60 helicopters,
A 57 mm Mk110 gun,
SPQ-9B Fire Control Radar
Phalanx 20mm Close in Weapon System (CIWS)
2 SRBOC/ 2 x NULKA countermeasures chaff/rapid decoy launcher,
AN/SLQ-32 Electronic Warfare System,
EADS 3D TRS-16 AN/SPS-75 Air Search Radar,
A combat system that uses Aegis Baseline 9 software,
A Sensitive Compartmented Intelligence Facility (SCIF)

In short, they are already equipped with virtually everything needed for a missile armed combatant except the specific missile related equipment. They are in many respects superior to the Littoral Combat Ships. Adding Cooperative Engagement Capability might even allow a Mk41 equipped cutter to effectively launch Standard missiles targeted by a third party.

USCG National Security Cutter BERTHOLF (USCG Photo)

The ships were designed to accept 12 Mk56 VLS which launch only the Evolved Sea Sparrow missiles (ESSM). Additionally, the builder, Huntington Ingalls, has shown versions of the class equipped with eight Mk41 VLS (located between the gun and superstructure) plus eight Harpoon, and Mk32 torpedo tubes (located on the stern). Adding missiles to the existing hulls should not be too difficult.

LRASM_TSL_Concept_Lockheed_Martin — LRASM topside launcher concept. The size and weight are comparable to launchers for Harpoon. (Lockheed Martin photo)

The Mk41 VLS are more flexible in that they can accommodate cruise missiles, rocket boosted antisubmarine torpedoes (ASROC), Standard missiles, or Evolved Sea Sparrow missiles (ESSM). Using the Mk41 VLS would allow a mix of cruise missiles and ESSM with four ESSMs replacing each cruise missile, for example eight cells could contain four cruise missiles and 16 ESSM, since ESSM can be “quad packed” by placing four missiles in each cell. Development of an active homing ESSM is expected to obviate the need for illuminating radars that are required for the semi-active homing missiles. Still, simpler deck mounted launchers might actually offer some advantages, in addition to their lower installation cost, at least in peacetime.

Cutters often visit ports where the population is sensitive to a history of U.S. interference in their internal affairs. In some cases, Coast Guard cutters are welcome, while U.S. Navy ships are not. For this reason, we might want to make it easy for even a casual observer to know that the cutter is not armed with powerful offensive weapons. Deck mounted launchers can provide this assurance, in that it is immediately obvious if missile canisters are, or are not, mounted. The pictures below show potential VLS to be considered.

The relatively small footprint of the Mk56 VLS system (pdf) can be seen here on a Danish Absalon-class command and support ship (beam 64 feet, by comparison the National Security Cutters’ beam is 54 feet). Two sets are visible in the foreground, one set of twelve with missile canisters with red tops in place to the right, on the ship’s centerline, and a second set of twelve without canisters to the left. The Absalon-class has three twelve-missile sets, with the third set off camera to the right. (Royal Danish Navy)

The Offshore Patrol Cutter (OPC)

The OPC program of record for provides 25 of these ships. A contract has been awarded to Eastern Shipbuilding Group for detail design and construction of the first ship, with options for eight more. The notional design is 360 feet long, with a beam of 54 feet and a draft of 17 feet. The OPCs will have a sustained speed of 22.5 knots, a range of 10,200 nautical miles (at 14 knots), and an endurance of 60-days. It’s hangar will accommodate one MH-60 or an MH-65 and an Unmanned Air System (UAS).

Notional design characteristics and performance of the OPC. (USCG Image)

It will have a space for a SCIF but it is not expected to be initially installed. As built, it will have a Mk38 stabilized 25 mm gun in lieu of the Phalanx carried by the NSC. Otherwise, the Offshore Patrol Cutter will be equipped similarly to the National Security Cutter. It will likely have the same Lockheed Martin COMBATSS-21 combat management system as the LCS derived frigates. It is likely they could be fitted with cruise missiles and possibly Mk56 VLS for ESSM as well. Additionally these ships will be ice strengthened, allowing the possibility of taking surface launched cruise missiles into the Arctic

The Fast Response Cutter (FRC)

The FRC program of record is to build 58 of these 158 foot, 28 knot, 365 ton vessels. 19 have been delivered and they are being built at a rate of four to six per year. All 58 are now either built, building, contracted, or optioned. They are essentially the same displacement as the Cyclone class PCs albeit a little slower, but with better seakeeping and a longer range. Even these small ships have a range of 2,950 nm. They are armed with Mk 38 mod2 25 mm guns and four .50 caliber M2 machine guns.

The first Sentinel-class Fast Response Cutter (FRC), USCGC Bernard C. Webber. (USCG photo)

They are already better equipped than the Coast Guard 82 foot patrol boats that were used for interdiction of covert coastal traffic during the Vietnam war. If they were to be used to enforce a blockade against larger vessels, they would need weapons that could forcibly stop medium to large vessels.

The Marine Protector Class

There are 73 of these 87 foot, 91 ton, 26 knot patrol boats. Four were funded by the Navy and provide force protectionservices for Submarines transiting on the surface in and out of King Bay, GA and Bangor, WA.

If use of these vessels for force protection were to be expanded to a more hostile environment, they would likely need more than the two .50 caliber M2 machine guns currently carried. The four currently assigned to force protection units are currently equipped with an additional stabilized remote weapon station.

Weapons

Cruise Missiles

The U.S. Navy currently has or is considering four different surface launched cruise missiles: Harpoon, Naval Strike Missile (NSM), Long Range Anti-Ship Missile (LRASM), and Tomahawk. Of these, LRASM appears most promising for Coast Guard use. Tomahawk is the largest of the four and both Harpoon and NSM would be workable, but they do not have the range of LRASM. The intelligence and range claimed for the LRASM not only makes it deadlier in wartime, it also means only a couple of these missiles on each of the Coast Guard’s largest cutters would allow the Coast Guard’s small, but widely distributed force to rapidly and effectively respond to asymmetric threats over virtually the entire U.S. coast as well as compliment the U.S. Navy’s efforts to complicate the calculus of a near-peer adversary abroad

Small Precision Guided Weapons

It is not unlikely that Fast Response Cutters will replace the six 110 foot patrol boats currently based in Bahrain. If cutters are to be placed in an area where they face a swarming threat they will need the same types of weapons carried or planned for Navy combatants to address this threat. These might include the Sea Griffin used on Navy’s Cyclone-class PCs or Longbow Hellfires planned for the LCS.

Additionally, a small number of these missiles on Coast Guard patrol craft would enhance their ability to deal with small, fast, highly maneuverable threats along the U.S. coast and elsewhere

Light Weight Anti-Surface Torpedoes

If Coast Guard units, particularly smaller ones, were required to forcibly stop potentially hostile merchant ships for the purposes of a blockade, quarantine, embargo, etc. they would need something more that the guns currently installed.

The U.S. does not currently have a light weight anti-surface torpedo capable of targeting a ship’s propellers, but with Elon Musk building a battery factory that will double the worlds current capacity and cars that out accelerate Farraris, building a modern electric small anti-surface torpedo should be easy and relatively inexpensive.

Assuming they have the same attributes of ASW torpedoes, at about 500 pounds these weapons take up relatively little space. Such a torpedo would also allow small Coast Guard units to remain relevant against a variety of threats.

Conclusion

Adding cruise missile to the Coast Guard National Security Cutters and Offshore Patrol Cutters would increase the number of cruise missile-equipped U.S .surface ships by about 40 percent.

Coast Guard Patrol craft (WPCs) and patrol boats (WPBs) significantly outnumber their Navy counterparts. They could significantly increase the capability to deal with interdiction of covert coastal traffic, act as a force multiplier in conventional conflict, and allow larger USN ships to focus on high-end threats provided they are properly equipped to deal with the threats. More effective, longer ranged, and particularly more precise weapons could also improve the Coast Guard’s ability to do it Homeland security mission.

Thanks to OS2 Michael A. Milburn for starting the conversation that lead to this article.

“ENHANCING EXISTING FORCE STRUCTURE BY OPTIMIZING MARITIME SERVICE SPECIALIZATION”–CIMSEC

Posted on October 7, 2016 by Chuck Hill

Fourth HC-144A delivered

Photo: The Government of Mexico purchased four CN235-300M aircraft (similar to the Coast Guard’s HC-144A). Oct. 1, 2010, the Foreign Military Sales program awarded a $157.9 million contract to EADS North America to produce these aircraft. The fourth and final delivery took place May 2, 2012, at EADS’ facility in Seville, Spain. Photo courtesy of Airbus Military.

CIMSEC has an interesting post that postulates a greatly expanded leadership role for the Coast Guard. In many ways it is radical, but I think it may be the way we are headed.

It suggests an enlarged role in international maritime policing and Foreign Military Sales. That probably implies intelligence collection and distribution.

“Under the umbrella of muscular law enforcement, the Coast Guard would manage not only patrols of the American coast, but also patrols off South America and Africa as well.”

That may already be close to reality in the SouthCom AOR.

The author describes a standard “frigate” that could very well be the Offshore Patrol Cutter:

“The principal requirements would be low cost, ease of maintenance, and margins for growth. The basic warship would have a simple power plant, enough systems to operate as a minimalist patrol ship, and substantial space and weight left available for additions.”

“Built cheaply and in large numbers, flotillas of these semi-modular ships would patrol for pirates off Africa, drug smugglers in the Gulf of Mexico, or vessels in distress off North America.”

He also sees a role for these ships in Amphibious Assaults.

“…the amphibious train would be escorted by frigates (based on the common hull introduced above) specialized with the maximum number of naval guns possible. With these frigates, the amphibious force would be able to defeat enemy forces in waters too constricted for the blue-water warships to operate effectively.”

We have seen a growing Coast Guard role in Foreign Military Sales with the delivery of hundreds of boats to dozens of nations, new 87 foot patrol boats going to Yemen, and maritime patrol aircraft going to Mexico. I don’t think it is too much of a stretch to see OPCs or Webber class WPCs being sold to our allies and friends, possibly funded in whole or in part by US Foreign Military Assistance.

There may be minor issues with his vision. I might argue that in accordance with the post’s logic, force protection should be under Coast Guard management, but generally his views are sound. It is surprising to see so much of a post by a former E-2C/D Hawkeye Naval Flight Officer devoted to the Coast Guard. The whole post is worth a read.

Surgeries on Small Ships

Posted on September 23, 2015 by Chuck Hill

The US Naval Institute News service reports a Navy lab is looking into whether surgeries could be performed on “small ships,” specifically the Littoral Combat Ships and the former “Joint High Speed Vessel.”

The select surgical procedures included in the study are stabilizing a fractured pelvis, treating a displaced femur fracture, treating an open wound of the abdominal wall, and a traumatic amputation of the leg. A medical team – consisting of a surgeon, a nurse, a surgical technician and an anesthesiologist – would conduct simulated surgeries in a realistic environment in up to sea state five conditions.

I am not sure why the Navy is doing this, and why specifically sea state five, there are going to be a lot of circumstances when the sea state is lower. Obviously surgeries have been done on small ships in the past. An appendectomy was famously performed on a submarine by a corpsman using a sharpened spoon (although subs have the advantage of being able to submerge out of severe sea conditions).

Perhaps they are talking about putting a surgical module on these ships, and maybe it might fit on Cutters. I’m still hoping the OPC will have some provision for using at least some of the LCS modules.

When we did Ocean Station, cutters deployed with Public Health Service doctors on board, and Midgett did have a SAR case involving a traumatic amputation of a leg in the Bering Sea while I was aboard, but I doubt we could justify regularly deploying with a surgical team. Still, there are circumstances like the 2010 Haiti earthquake when a surgical team and operating room on our cutters could be useful. Big hospital ships are great for some things, but in that case there were several smaller communities that also needed help. Some times you need the ability to spread the capability around.

Navy Rethinking Ship Designations–Time for the CG to do so too?

Posted on January 15, 2015 by Chuck Hill

Photo: Doesn’t this look like a Patrol Frigate?

The USNI is reporting that, “The modified Littoral Combat Ship (LCS) class will be redesigned as frigates, Secretary of the Navy Ray Mabus announced on Thursday at the Surface Navy Association 2015 symposium on Thursday.”

Mabus noted, ““It’s not an ‘L’ class ship,” he said. “When I hear ‘L’ I think amphib, so does everybody else.”

The FF designation for the LCS will be the first of a planned set of nomenclature changes for other ships classes as well that will come in the coming weeks, Mabus said.

Apparently he also intends to address the designations of the Afloat Forward Staging Base (AFSB), the Mobile Landing Platform (MLP), and the Joint High Speed Vessel (JHSV).

I will repost something I quoted in a comment to a previous post regarding an article by Norman Polmar in the US Naval Institute Proceedings “US Navy-LCS, JHSV, MLP…What?”

Quoting his conclusion: “Unquestionably, the LCS, JHSV, and MLP designations must be changed—it is logical and sensible to do so. It can be done with the stroke of a pen by a Secretary of the Navy notice. At the same time, two other ship classes should have their hull numbers changed: The three ships of the Zumwalt (DDG-1000) class and the three submarines of the Seawolf (SSN-21) class should be assigned realistic hull numbers within their respective types, and thus be in accord with the 90-year-old directive that stated ships were to be designated in sequential order within their designation types…“The U.S. Navy’s basic ship-designation system is excellent and deserves to be carried out professionally and logically.”

Perhaps it would be a good time for the Coast Guard to take another look at their designation system too, and bring them back into line with the Navy system. I talked about this earlier, “Ship Type Designations–The Bertholfs are Minesweepers?”

The designations currently chosen for the Bertholf class (WMSL) and the Offshore Patrol Cutter (WMSM) are do not fit within the established and customary designation conventions of either the US Navy or NATO.

I would suggest, W-PFL (CG Patrol Frigate, Large) for the Bertholfs and W-PFM for the Offshore Patrol Cutters or more simply W-PL (CG Patrol, Large) and W-PM (CG Patrol, Medium). We might also apply the new designations to existing WHECs and WMECs as well.

We might also want to take a look at icebreakers and AtoN vessels, but those designations are really less problematic.

Germany to Build Four OPVs for Israel

Posted on December 28, 2014 by Chuck Hill

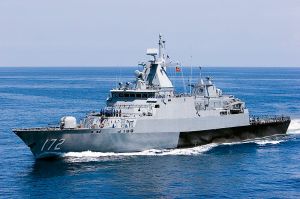

Photo Credit: jimmyweee, Malaysian OPV Pahang, IMDEX2007

DefenseNews is reporting that Germany will be building four Offshore Patrol Vessels for the Israeli Navy. Israel has seen a need for OPVs to protect its growing offshore energy industry.

Israel had previously considered the Lockheed “international” LCS design, but it was deemed too expensive. The design selected is a version of the MEKO A100. Two versions of this design are already in service, The Kedah class (pictured above) with the Malaysian Navy and the K-130 class corvettes of the German Navy.

It will be interesting to see how these ships turn out. They will be similar in size, perhaps a bit smaller than the Offshore Patrol Cutters.

A late addition:

Israel_Navy_Saar_6_MEKO_TKMS_1

Added Nov. 16, 2020.

Operation Mare Nostrum Influences Frigate Design

Posted on December 24, 2014 by Chuck Hill

DefenseNews is reporting Adm. Giuseppe De Giorgi, chief of the Italian Navy says their experience with their massive migrant interdiction operation “Mare Nostrum,” that saved over 150,000, is influencing the design of future frigates.

“The experience of Mare Nostrum has helped shape the design of Italy’s new frigates, which are dual use and can engage in large-scale rescues. Openings on the sides of the vessels allow people to disembark from fishing boats as they would on a dock.

“These ships will have a large space under the flight deck which is wired and plumbed so containers with bathrooms or hospital facilities can be installed, not to mention sleeping quarters. We will also be able to store large inflatable boats for special forces, which can be used, alongside landing craft, to evacuate Italian nationals from conflicts where helicopters are vulnerable to man-portable air-defense systems.

“I think this is the future. Increasingly, I don’t think countries will be able to deploy separate naval forces for policing, civil use and military use. I believe a navy must be designed from the start to be as flexible as possible.

“There are other innovations on the new ships. We are aiming to use electric propulsion up to 10 knots and to use bio-fuel and liquid gas fuel. The fuel tanks are being designed to use regular fuel as well as liquid gas. I think we are the first to do this.

“Additionally, the frigates will be able to provide electricity and drinking water for a community of 6,000 hit by a natural disaster.

“We will also be able to carry sea-skimming robots to clear up pollution on the surface, with the polluted water then stored in the tanks of a new refueling ship we are also designing.”

Italy has both a Coast Guard and a maritime Customs Service, but neither has large patrol vessels (over 1,000 tons) like the USCG, so the Italian Navy performs some coast guard functions.

The next class of US Coast Guard cutter, the Offshore Patrol Cutter, includes a design requirement to hold, shelter, and feed up to 500 illegal immigrants on deck. There are still a number of unknowns, but there is reason to believe that the winning design may also include provision for support of containerized modules and a hybrid propulsion system even though neither were included in the specification.

Aside from the ability to provide electricity to communities ashore, the excess generator capacity of a hybrid propulsion system may also allow the vessels to support electrically powered weapons like lasers and rail-guns.

Navy Chooses Existing LCS Designs as Basis for Small Surface Combatant

Posted on December 12, 2014 by Chuck Hill

Photo: A modified Littoral Combat Ship design based on the Lockheed Martin Freedom-class. US Navy Image. Click on the image to enlarge. Note the USNI post also includes an image of a modified Independence class LCS

USNI is reporting that the existing Littoral Combat Ship designs will be modified to become the new Small Surface Combatant. It is not clear if they mean they will continue to build two designs in parallel, or if they mean they will select only one of the two. Perhaps there will be a competitive bid.

In spite of apparently incorporating all the elements of both the anti-submarine and anti-surface modules plus over-the-horizon Anti-Ship Cruise Missiles, it is reported they will have a lighter displacement than the existing LCSs. Surprisingly they apparently will not include VLS, but will include a multi-function towed array sonar, over the horizon ASCMs, upgraded radars, EW, and Cruise Missile decoy systems, torpedo countermeasures, a Mk38 Mod2 25 mm, and additional armor, in addition to the Mk110 57mm, two Mk46 30mm, Hellfire, MQ-8 UAVs and HM-60 helicopters. Both designs will use SeaRAM.

The question for the Coast Guard now is, how much commonality with this new class can be incorporated into the Offshore Patrol Cutter either as equipment actually installed or as equipment fitted for but not with? The more commonality that can be achieved, the more supportable the ships will be over the long haul.

The world seems to be becoming a more dangerous place, where the US may need every warship it can muster. We cannot afford the luxury of building the OPCs without wartime potential.

China Builds Cutter X for Nigeria

Posted on November 28, 2014 by Chuck Hill

Photo credit: NavyRecognition, Model of the P18N OPV on the CSOC stand during AAD 2014. Click to enlarge.

NavyRecognition reports delivery of another cutter similar in concept to Cutter X. This time it is first of two being built in China for Nigeria.

P18N Offshore Patrol Vessels have a displacement of 1,700 tons, a length of 95 m, width of 12.2 m and beam of 3.5 m. It is powered by two MTU 20V 4000M diesel engines (I believe this is essentially the same engine as in the Webber class WPCs–Chuck). The maximum speed is 21 knots. The endurance of the vessel is 20 days at sea (range 3000 nautical miles at 14 knots) for a crew of 70 sailors.

The range and speed are certainly adequate for their purposes, but “nothing to write home about,” and the hangar is only suitable for UAVs, but it is actually better equipped in some ways than the proposed Cutter X with a 76mm gun and two 30mm. This probably contributes to the size of its 70 member crew.

Nigeria is modernizing their forces. The Nigerian Navy took over the former USCGC Chase in 2011, and they expect to get the Gallatin in 2015. Nigeria is the source of much of our imported oil, and they have an ongoing insurgency and a serious piracy problem.

If the helicopter on the model pictured above looks familiar, it is a Z-9, a Chinese license built version of the French helicopter that was the basis for the H-65. Chinese variants include both ASW and attack helicopter versions.

“Cutter X” Revisited

Posted on September 28, 2014 by Chuck Hill

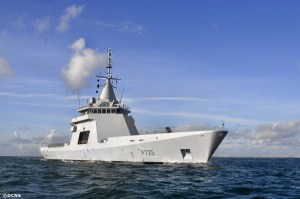

Photo: French Patrol Vessel, L’Adroit, DCNS photo

Almost two years ago I made a proposal for an alternative fleet mix. Since then the cutter recapitalization program has moved along. Funding of the eighth and final National Security Cutter is expected in FY2015. 30 Webber class WPCs have been funded and the contract with Bollinger has run its course. The Administration has asked for funding of two more in FY2015. If the Congress does what they have done in the past the Coast Guard may get funding for as many as six.

Like the original post, the purpose here is to offer another possible cutter fleet mix that might be procured at the same cost as the “Program of Record” (POR) that would include approximately the same number of units but provide more large “cruising cutters”, eg, over 1000 tons (49 vs 33), while hopefully replacing the existing WMEC fleet earlier, avoiding the worst of the disastrous drop in the number of major cutters that appears likely in the 2020s, and providing more cutter days while requiring fewer or at least no more personnel than either the legacy fleet or the POR.

The original post was largely in response to a Department of Homeland Security study modeling the effectiveness of alternative fleet mixes, “Options for the Future USCG Cutter Fleet Performance Trade-Offs with Fixed Acquisition Cost,” by Alarik Fritz • Raymond Gelhaus • Kent Nordstromr (.pdf). My hope was to offer a better alternative that might be evaluated by a follow-on study.

What comes through loud and clear, from that study is that:
◾The Coast Guard need some ships with the capability to do boat and helicopter ops in State Five Seas particularly for operations in the Northeast and Alaska.
◾In the Southeast and West, where the primary missions are Drug Enforcement and Migrant Interdiction, we are a long way from a point of diminishing returns, that is, mission performance is directly linked to the number of cutters, effectiveness increasing in almost direct proportion to the number of cutters available.
◾The cutters’ ability to launch boats and helicopters in State Five conditions are much less important in the West and Southeast where most of the cutters are normally deployed.

Meanwhile the Coast Guard’s responsibilities continue to grow.

The concept of Cutter X was basically to take the equipment and crew of the Webber class and put them in a larger, higher endurance, more seaworthy hull and augment the crew only as necessary to deal with the additional endurance, the availability of two boats and helicopter and/or UAV operations. The original post provided several examples of similar ships, and since then I have posted another example. Basically the result is a relatively simple vessel, only a bit more sophisticated than a 210 but grown about 50% larger with the possibility of a hangar in addition to the flight deck. My presumption would be that these ships would rely more on shore based aircraft rather than an organic air search capability, meaning the tempo of air operations would be lower than for larger cutters. They might operate more frequently with UAVs rather than helicopters. In other words, a ship of about 1,500 tons, about half the size of the OPC, closer in size to a 270 than a 210 (but perhaps longer than the 270, L’Adroit at 1,450 tons full load is over 285 feet long), and about four times bigger than a Webber class WPC. Other characteristics I would expect are a speed of approximately 24 knots, a range of 5,000 miles or more, and an endurance of at least three weeks. Weapons would initially be limited to a single Mk38 mod2 25mm and crew served .50 cal.

Photo: L’Adroit, looking forward from the flight deck toward the superstructure and the hangar.

Basically my assumption was and is that the tradeoffs between ship typed would work something like this:

1 NSC = 2 OPCs = 4 “X” class = 12 FRCs

This equates to approx. prices of: $700M/NSC, $350/OPC, $175M/Cutter X, and $60M/FRC.

It is no longer possible to trade-off NSCs for X class cutters, so the new alternative mix would look like this:

8 NSCs, 15 OPCs, 26 “X” class, and 42 FRCs

This gives us as many vessels as the program of record (91), more “cruising cutters” capable of sustained distant operation (49 vs 33) including 23 ships (8 NSCs and 15 OPCs) that are capable operating boats and aircraft in sea state 5 for Alaska and the Northeast, and 15 OPCs with ice strengthened hulls for operation in the Arctic and potentially the Antarctic.

Like the previous post I’ll compare this possible fleet mix to the Coast Guard Fleet as it existed in 2000/2001 (which was larger than the existing fleet) and the fleet in the Program of Record (POR), on the basis of cutter days available and crewing requirements using both conventional and augmented crewing.

Crewing:

For the analysis below I have used the following as the personnel allowances for the new classes:
◾NSC 122
◾OPC 90 (still to be firmed up)
◾FRC 24 (includes two extra junior officers assigned to gain experience)

While some of the vessels cited in my previous post as comparable to Cutter X are crewed by as few as 30, which I will use as a lower limit, I believe the Coast Guard would use more, if only as an opportunity to provide more at sea experience. At most, the personnel allowance should not be more than that of the 210s. My figures may be out of date, but at least at one point that was a crew of 62. I’ll use this as the upper limit.

Cutter Days AFHP and Crew Requirements:

The 2000/2001 fleet: Theoretically the 2000/2001 fleet could have provided 8,140 cruising cutter days away from homeport (AFHP) (44 cruising cutters x 185 days) and would have required a total personnel allowance of 5,477 (1.49 cutter days/crew member).

The Program of Record: Without augmentation, the program of record would theoretically provide 6,105 cruising cutter days AFHP (33 cruising cutters x 185 days) and require a total personnel allowance of 4,618(1.32 cutter days/crew member).

With Augmentation (increasing their personnel allowance by a third and running the cruising cutters 230 days/year) the program of record would theoretically provide 7,590 cruising cutter days and require a total personnel allowance of 5,693 (1.33 cutter days/crew member).

Proposed Mix: Without augmentation, the proposed mix would theoretically provide 9,065 cruising cutter days AFHP (49 cruising cutters x 185 days) and require a total personnel allowance of between 4,114 (assuming a crew of only 30 for Cutter X, 2.2 cutter days/crew member) and 4,946 (assuming a crew of 62 for Cutter X, 1.83 cutter days/crew member).

With Augmentation (increasing the personnel allowance of the cruising cutters by a third and running them 230 days/year) the proposed mix would theoretically provide 11270 cruising cutter days AFHP (49 cruising cutters x 230 days) and require a total personnel allowance of between 5,150 (assuming a crew of only 30 for Cutter X, 2.19 cutter days/crew member) and 6,259 (assuming a crew of 62 for Cutter X, 1.80 cutter days/crew member).

What about the loss of FRCs? The proposal would trim 16 FRC from the POR. They are projected to operate up to 2500 hours per day. If we assumed that all 2500 hours were devoted to offshore cruising for the 16 additional units, that would add 1667 days AFHP to the POR for a total of 7,772 days AFHP for the un-augmented fleet (1.68 cutter days/crew member) and 9,257 days AFHP for the augmented POR (1.63 cutter days/crew member)(disregarding the 42 additional FRC that are included in both the POR and my proposed fleet mix).

In summary Cutter Days Available:
◾————————————–————–Un-Augmented———Augmented by 1/3
◾2000/20001 (cruising cutters only)—————–8,140———————N/A
◾POR (cruising cutters only)—————————6,105——————-7,590
◾POR (w/1,667 additional FRC day AFHP)——-7,772——————–9,257
◾Proposed Mix w/Cutter X (cruising cutters only)9,065—————–11,270

It looks like this alternative provides an improvement of at least 16.6% over the program of record, possibly as much as 48.5% depending on how you view the FRCs as a patrol asset. It appears that the un-augmented version gives virtually the same number of ship days away from homeport (within 2% assuming both we count the additional WPCs as cruising cutters and that the augmented ships provide 230 days AFHP. If they provide only 225 days AFHP even this small advantage goes away) as that of the augmented version of the program of record while requiring 13 to 28% fewer crewmembers (several hundred to over 1,000). And without the possibly problematic requirement for augmentation.

Is it doable? What is the timing? How would it effect with other programs?

The eight NSC should be essentially fully funded by the end of FY 2015. Thirty FRC are already funded. Funding twelve more to bring the total to the proposed 42 by the end of FY2017 would only require funding four per year, and might be done in only two years if Congress continues funding six a year, meaning funding for construction of X class cutters could begin in FY2018.

I think the funding could look something like this

————-OPC—X class
FY 2017—–1
FY 2018—–1——–1
FY 2019—–1——–1
FY 2020—–1——–1
FY 2022—–1——–2
FY 2023—–1——–3
FY 2024—–1——–3
FY 2025—–1——–3
FY 2026—–1——–3
FY 2027—–1——–3
FY 2028—–1——–3
FY 2029—–1——–3
FY 2030—–2——–0
FY 2031—–1——–0

The proposed mix funds 33 new generation large cutters by FY 2026, four years before the POM. The cutter X program would be fully funded in FY2029. Through FY2030, when the Program of Record is expected to be completed, it will have funded 48 new generation large cutters compared to the 33 new cutters of the Program of Record. In FY 2031 the proposal will add a 49th cutter. Since the X class cutters are nearer the size of existing cutters, they might also reduce the expense of modifying the shore establishment to support a larger number of OPCs. Additionally eliminating the requirement for augmentation will minimize new construction ashore to support the augmentation crews.

Other Considerations:

The proposed fleet mix has a pyramidal structure that may work well as a training ground for COs, e.g., assuming O-3s command the 42 Webber class (I know currently we have been using O-4s), O-4s command the 26 X class, O-5s command the 15 OPCs, and O-6s command the 8 NSCs.

Politically it is probably better for the Coast Guard to have two concurrent shipbuilding programs (OPC & X class) rather than just one, since that will normally lead to budgetary support from two Congressional delegations.

Chuck Hill's CG Blog

Tag Archives: OPC
