I found the Joint Explanation easiest to wade through. The Budget breakdown is found on pages 65 to 69 of the 612 page pdf.
Note in some cases I have rounded to the nearest $0.1M
Our total Coast Guard FY2019 budget is $12,015,921,000. This is $91,803,000 less than last year, but $577,720,000 more than the budget request.
The Operations and Support allocation is $7,808.2M. That is $434.9M more than last year (a 5.6% increase), and $215.1M more than requested.
I have provided information on the PC&I budget below including a complete list of line items that I was unable to provide before.
PROCUREMENT, CONSTRUCTION, AND IMPROVEMENTS (PC&I) $2,248.26M
Vessels and Boats
Survey and design: 5.5M
In service vessel sustainment: 63.25M
National Security Cutter: 72.6M (Follow up on ships already funded)
Offshore Patrol Cutter: 400M (Second of class + LLTM for third)
Fast Response Cutter: 340M (Six Webber class including two for PATFORSWA)
Cutter boats 5M
Polar Security Cutter: 675M (First of class + LLTM for second)
Waterways Commerce Cutter: 5M
Polar sustainment: 15M (Polar Star Service Life Extension)
—-Vessels Subtotal: $1,581.35M
HC-144 Conversion/Sustainment: 17M
HC-27J Conversion/Sustainment: 80M
HC-1330J Conversion/Sustainment: 105M
HH-65 Conversion/Sustainment: 28M
MH-60 Conversion/Sustainment: 120M
Small Unmanned Aircraft: 6M
—Aircraft Subtotal: $356M
Other Acquisition Programs:
Other Equipment and System: 3.5M
Program Oversight and Managemen: 20M
CG-Logistics Information Management System (CG-LIMS): 9.2M
—Other Acquisitions Programs Subtotal: $56M
Shore Facilities and Aids to Navigation:
Major Construction; Housing; ATON; and Survey and Design: 74.51M
Major Acquisition Systems Infrastructure: 175.4M
Minor Shore 5M
—Shore Facilities and Aids to Navigation Subtotal: $254.91M
The PC&I total, $2,248.26M, was $446.48M less than FY2018, but it was $361.51M above the budget request.
R&D was cut by almost a third. This is probably a place to spend more not less.
Reserve Training disappeared as a separate line item, so I can’t tell what happened there.
Also included in the new budget is $5M for the National Coast Guard Museum
Incidentally, the total amount appropriated for the polar security program includes $359.6M (FY2018 and prior) + $675M (FY2019), or $1,034.6M, of which $20M is for Long Lead Time Material for the second ship, and the remainder is for the first ship and other program-related expenses.
With Operations and Support up more than 5% over 2018 and Procurement Construction &Improvement (PC&I) over $2B for the second year in a row, this is the kind of budget we can live with. It just needs to keep happening.
$1,507.6M For Ships (LLTI refers to Long Lead Time Material):
$675M for the first Polar Security Cutter and LLTM for the second
$400M for the second Offshore Patrol Cutter and LLTM for the third
$340M for six Fast Response Cutters
$72.6M for the National Security Cutter program
$15M for life extension work on Polar Star
$5M for initial work on procuring an additional Great Lakes Icebreaker
Coast Guard C-130J
$208M For Aircraft:
$105 for the HC-130J program (I think that is one aircraft)
$95M for MH-60T recapitalization (reworking existing aircraft I believe)
$8M for upgrades to the MH-65s
That is $1,715M for the items above. This, hopefully, is not all. I don’t have a figure for the Waterways Commerce Cutter (a small figure at this point), no information on unmanned systems, and there should also be money to address the backlog of shoreside improvements, but this does seem to show a recognition of the real needs of the Coast Guard for recapitalization. Looks like the $2+B annually for PC&I the Coast Guard has been saying they need is within reach.
This is not going to flow well, I apologized for the mishmash. The video above is of a House Sub-Committee hearing that occurred on July 24. I think it is still worth a look. The video does not actually begin until just before time 19:55
Before watching the video, I would suggest a look at the “Summary of Subject Matter.” This is what the Congressional Representatives are looking at.
End of Service Lives for Medium Endurance Cutters (MEC) with Planned Offshore Patrol Cutter (OPC) Delivery Dates:
Check out the charts on page 2. The second chart shows “End of Service Lives for Medium Endurance Cutters (MEC) with Planned Offshore Patrol Cutter (OPC) Delivery Dates.” It illustrates the risks and loss of capacity that appears likely, if OPCs are funded at the planned rate of no more than two ships a year. It is unclear why the WMECs are to be retired in the order intended since it is not the order of their completion. Presumably it is based on an assessment of the condition of the ships, but it is very clear that they will all be well over aged. The 210s will retire first. The youngest retirement would be at age 53 and some would qualify for Social Security before replacement. (Diligence, 66)
How they arrived at the expected service life shown is hard to understand, because every 210 is going to be 53 years old or older at the end of projected service life plus 15 year life extension. The 210s were, of course, substantially reworked during a “Major Maintenance Availability” 1986 to 1990, but no further life extension work is apparently planned based on the testimony in the video.
It may appear we are in much better shape with respect to the 270s, but these more complex ships may actually be harder to keep operational. We saw this in the number of breakdown experienced after the Haitian Earthquake eight years ago. They were commissioned between 1983 and 1991 and are expected to be replaced between 2130 and 2135. Legare, second to newest, is planned to be the first replaced, and would be “only” 40 years old. Harriet Lane one of the earliest completed is expected to be one of the last replaced and would be 50 years old. The rest fall within that range. SLEP for 270s beginning 2021, but it is not certain it will be applied to all 13 ships.
Because ships are not being replaced as quickly as they were originally built, we see a growing gap between the end of the ship’s projected service life, even with a 15 year service life extension, and the projected date of replacement.
Cutter Capability (by operating hour):
See also Appendix A, which illustrates the current shortfall in cutter hours available compared to the “Legacy Fleet” the recapitalization program was intended to replace. The “Legacy Fleet” is based on 12 WHECs, 29 WMECs, and 49 island class WPBs. (Not sure why they used 29 WMECs, since we had 32 as recently as 2001.)
There are two charts, the first includes WPBs and Webber class WPCs as well as WHECs, WMECs, NSCs, and OPCs. The second considers on the only the larger vessels, excluding WPCs and WPBs.
The first chart shows that we are currently down 20,450 hours (8.6%) relative to the legacy fleet, but that when the recapitalization is complete the total will be 31,970 hours (13.4%) greater than the legacy fleet. This increase is all due to the greater number Webber class and the greater number of hours each is expected to operate annually compared to 110s.
The second chart looks only at the larger ships, leaving aside the Webber and Island class WPCs and WPBs. It shows we are currently down 13,950 op hours (10%) and further, that when the program is completed, we will be down 15,030 hours (10.7%)reflecting the smaller number of large patrol cutters. If we could view this as a chart of actual cutter available on a yearly basis, it suggest that we will never be down by more than the 10.7% that shows upon completion of the program. Actually that is unlikely to be the case. The aging fleet means a higher probability of unplanned maintenance and even catastrophic failure that may result in WMECs being decommissioned prematurely and becoming parts donors like the Polar Sea.
At some point Coast Guard leadership is going to have to tell Congress the ugly truth that we have started the OPC/WMEC replacement program much too late, and we need to double down on the production rate. As soon as the first ship is completed and tested we need to issue a Multi-Year Procurement contract and it should include building up to four ships a year, at least until all sixteen 210s are replaced and at least three ships a year until all the WMECs are replaced.
We need to tell the Congress this as soon as possible, because bad news does not get better with age. Unfortunately it did not happen in this hearing. In fact when asked about the possibility of accelerating OPC production, time 1:10:00, VAdm McAllister seemed to dismiss the possibility saying we had other higher priorities. This was the wrong answer. You don’t always get to decide how money is spent. If we should get the opportunity to accelerate OPC construction, as has happened with the FRCs, we should welcome it.
Mission Needs Statement:
You can see the “Mission Needs Statement” referred to here. It is 70 pages plus about 45 pages of Appendices, but as noted, “… it does not identify asset gaps or a material solution to meet Coast Guard’s mission needs.”
GAO findings, failure to plan long term:
The GAO has taken the Coast Guard to task because their acquisition portfolio planning has been limited to apparently short term planning using the annual budget and five year Capital Investment Plan (CIP). That this has resulted a bow wave of unfunded requirements being pushed progressively further into the future.
“When you are up to your ass in alligators, it is difficult to remember that your initial objective was to drain the swamp.”
I have to think GAO has a point here.
We still have not provided a 20 year acquisition plan that the Coast Guard said they would provide in 2014, much less the 30 year plan I have suggested that would parallel the Navy’s planning process.
We have only done one fleet mix study. It was completed in 2007 and included the apparent assumption of applying the now rejected Crew Rotation Concept to both the NSCs and OPCs. Even so, it is still being used as a basis for critiquing the program of record that was last re-baselined in 2005. Things change, we now have better information about how our assets actually function. It is long past time for updated planning.
Vice Admiral Daniel Abel, Deputy Commandant for Operations, United States Coast Guard | Written Testimony
Vice Admiral Michael McAllister, Deputy Commandant for Mission Support, United States Coast Guard | Written Testimony
Ms. Marie A. Mak, Director of Acquisition and Sourcing Management, Government Accountability Office | Written Testimony
Here is a brief outline of the topic discussed. Video actually begins 19:55.
23:00 Administration and CG leadership priorities do not demonstrate a commitment to rebuild infrastructure.
42:00 Appropriation deleted $1.4B including $750M for the Heavy Polar Icebreaker and the rest from an account to repair of replace hurricane damaged infrastructure.
46:00 Icebreaker schedule is overly optimistic.
47:00 WMEC gap.
49:00 No service life extension program for 210s. Some, but not all 270s, will have 10 year life extension.
51:00 Capabilities vs hours.
55:30 WMECs are operating at higher than anticipated tempo. Anticipate catastrophic failures within in the WMEC fleet. 5 out or 14 WMEC 210s are at high risk.
59:30 Maintenance backlog.
1:08:00 Still no 20 year plan has been provided since it was requested in 2014.
1:10:00 accelerate OPC procurement?
1:12:30 OPC homeports, of the first four, two will go to Kodiak and two to LA
1:14:00 Great Lakes icebreaking, Mackinaw replacement? SLEP of 140′
1:15:45 Will be doing a fleet mix study for the Great Lakes.
1:20:00 Homeport for icebreakers has not been decided. Working on homeport decisions for the entire fleet.
1:24:00 Counter UAS capability. The six WPBs in CENTCOM have some capability.
1:25:00 Manpower analysis
Opening Statement of the Sub-Committee Chair:
The Subcommittee is meeting today to review how the Coast Guard is integrating their acquisition, manpower, and maintenance plans to align to their mission needs and assure the Service has the assets, personnel, and expertise needed to carry out its missions.
On June 1, 2018, Admiral Karl Schultz became the 26th Commandant of the Coast Guard. His guiding principles for the Service are: Ready, Relevant, and Responsive. He said, “These guiding principles frame my direction and will support the Department of Homeland Security, the Secretary of Defense and Combatant Commanders, and other national and global maritime interests.” Admiral Schultz and his senior leadership team are in the midst of reviewing the status of the Coast Guard and making changes to align the Service with those guiding principles. Today, we will hear from two members of that team, and look forward to better understanding their perspectives on the status of the Coast Guard.
The ongoing recapitalization of the Service’s cutters was planned two decades ago to address mission demands at that time. The world and the demands on the Coast Guard have since changed and it is critical that the Service be ready to respond to the demands of today, as well as those that will exist in decades to come. It is also important that the Coast Guard is prepared to manage capability gaps that are occurring and likely to continue to occur as recapitalization continues.
The decisions being made today will shape the Coast Guard of the future. The cutters being built today have a planned 30-year service life and will probably serve longer, and the final OPC is projected to be patrolling the seas until 2064. Like Admiral Schultz, Congress wants to ensure the Coast Guard is Ready, Relevant, and Responsive for years to come. In order to do so, we need accurate information from the Service to determine whether current plans will provide the capabilities to meet future demands.
Even more important than Coast Guard ships and aircraft are the people who operate them. The Coast Guard’s active duty workforce is only slightly larger than that of the New York City police department and less than ¼ the size of the next smallest U.S. Armed Force. Congress has encouraged the Coast Guard to better understand and articulate its workforce needs to meet current and emerging needs. Looking forward, it is likely that the Service will need to make tough, strategic decisions regarding how Coast Guard personnel are allocated. Even before the advent of a new cybersecurity operating domain, the Coast Guard was struggling to meet mission demands; creating a cybersecurity workforce while also conducting legacy operations poses an additional challenge that must be addressed immediately.
In addition to our focus on Coast Guard assets and personnel, this Subcommittee has continually pushed the Service to improve its shore infrastructure made up of approximately 43,400 assets nationwide. Unfortunately, even after several years of us stressing the need for action, much of that property is in dire need of rebuilding or repair. While Coast Guard leaders consistently stress the importance of investing in shore infrastructure, the budgetary trade-offs being made within the Coast Guard and the Administration do not reflect a genuine commitment to address this need. For example, despite a shore infrastructure backlog of more than $1.5 billion, the Coast Guard’s Fiscal Year 2019 budget request only includes $30 million to address those projects.
Shore infrastructure is critical to every Coast Guard mission – cutters need piers, aircraft need runways, inspectors need buildings, etc. – and if the Service truly desires to remain Ready, Relevant, and Responsive, it needs to find ways to address these critical needs.
The Government Accountability Office (GAO) has issued a number of reports since 2012 reviewing Coast Guard acquisition programs and providing recommendations to improve those programs. Over the years, the Coast Guard has agreed with many of those recommendations and agreed to take action on them. However, the new GAO report released today notes that the Coast Guard has not fully implemented those prior recommendations. Hopefully, today’s hearing will help us understand why that is.
A new senior leadership team brings new perspectives, new ideas, and new priorities. I look forward to hearing from our witnesses today on how they see the Coast Guard and how we can best position the Service for success going forward.
The latest edition of the Congressional Research Service report on Coast Guard Polar Icebreakers, by Ronald O’Rourke, was published on 23 May, 2018. You can see it here.
I have reproduced the summary immediately below.
The Coast Guard polar icebreaker program is a program to acquire three new heavy polar icebreakers, to be followed years from now by the acquisition of up to three new medium polar icebreakers. The Coast Guard wants to begin construction of the first new heavy polar icebreaker in FY2019 and have it enter service in 2023. The polar icebreaker program has received about $359.6 million in acquisition funding through FY2018, including $300 million provided through the Navy’s shipbuilding account and $59.6 million provided through the Coast Guard’s acquisition account. The Coast Guard’s proposed FY2019 budget requests $750 million in Coast Guard acquisition funding for the program.
The acquisition cost of a new heavy polar icebreaker had earlier been estimated informally at roughly $1 billion, but the Coast Guard and Navy now believe that three heavy polar icebreakers could be acquired for a total cost of about $2.1 billion, or an average of about $700 million per ship. The first ship will cost more than the other two because it will incorporate design costs for the class and be at the start of the production learning curve for the class. An April 13, 2018, Government Accountability Office (GAO) report on the polar icebreaker program states that the Coast Guard has reduced its estimated cost for the first heavy polar icebreaker to less than $900 million, which would imply an average cost of something more than $600 million each for the second and third icebreakers. When combined with the program’s $359.6 million in prior-year funding, the $750 million requested for FY2019 would fully fund the procurement of the first new heavy polar icebreaker and partially fund the procurement of the second.

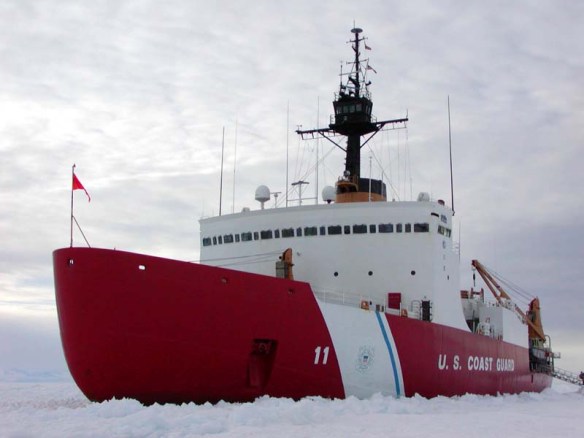

The operational U.S. polar icebreaking fleet currently consists of one heavy polar icebreaker, Polar Star, and one medium polar icebreaker, Healy. In addition to Polar Star, the Coast Guard has a second heavy polar icebreaker, Polar Sea. Polar Sea, however, suffered an engine casualty in June 2010 and has been nonoperational since then. Polar Star and Polar Sea entered service in 1976 and 1978, respectively, and are now well beyond their originally intended 30-year service lives. The Coast Guard has used Polar Sea as a source of spare parts for keeping Polar Star operational.
A Department of Homeland Security (DHS) Mission Need Statement (MNS) approved in June 2013 states that “current requirements and future projections … indicate the Coast Guard will need to expand its icebreaking capacity, potentially requiring a fleet of up to six icebreakers (3 heavy and 3 medium) to adequately meet mission demands in the high latitudes….”
The current condition of the U.S. polar icebreaker fleet, the DHS MNS, and concerns among some observers about whether the United States is adequately investing in capabilities to carry out its responsibilities and defend its interests in the Arctic, have focused policymaker attention on the question of whether and when to acquire one or more new heavy polar icebreakers as replacements for Polar Star and Polar Sea.
On March 2, 2018, the U.S. Navy, in collaboration with the U.S. Coast Guard under the polar icebreaker integrated program office, released a request for proposal (RFP) for the advance procurement and detail design for the Coast Guard’s heavy polar icebreaker, with options for detail design and construction for up to three heavy polar icebreakers.
Issues for Congress for FY2019 for the polar icebreaker program include, inter alia, whether to approve, reject, or modify the Coast Guard’s FY2019 acquisition funding request; whether to use a contract with options or a block buy contract to acquire the ships; whether to continue providing at least some of the acquisition funding for the polar icebreaker program through the Navy’s shipbuilding account; and whether to procure heavy and medium polar icebreakers to a common basic design.
“Communication is severely degraded at higher latitudes, beyond 65 degrees north and south,” said Eric Nagel, a spokesman for the Coast Guard’s acquisition directorate. “Coast Guard polar icebreakers need to be able to communicate in Polar Regions with a wide range of groups from commercial shipping and recreational boaters to scientific researchers. The polar icebreakers also need to maintain network connectivity with the Department of Homeland Security, Department of Defense and other federal and international partners.”
