Polar Security Cutters and Coast Guard ASW

The US Naval Institute Proceedings web page has a couple of Coast Guard related articles that did not appear in the print version of Proceedings,

I have reproduced my comments on these topics below.


In regard to arming the Polar Security Cutters (the author seemed fixated on cruise missiles. We did discuss this topic earlier here)

There are limits to what we want to put on ships bound for Antarctica, since they have to be open for inspection. On the other hand if we ever do have a near peer conflict involving the Arctic or Antarctic, these will become rare and essential naval auxiliaries. As such they will probably operate with other vessels, including more powerful warships if appropriate, but that does not mean they should not be able to defend themselves against the possibility of leakers. We need to make provision for last ditch defense with systems like SeaRAM.

Meanwhile the fact that they are law enforcement vessels means they should be able to forcibly stop any private or merchant vessel regardless of size. So far it seems they will have at most, 25mm Mk38 Mod3 guns.

The follow on Medium Icebreakers or Arctic Security Cutters, which are unlikely to go to Antarctica, are more likely to be more heavily armed from the start.


Coast Guard ASW (comments were generally surprisingly adverse):

It is a fact that in WWII most U-boats were sunk by aircraft, but about a third (about 230) were sunk by surface vessels, primarily those of our allies Britain and Canada.

Even when surface vessels did not sink U-boats, they often performed valuable service in blocking access to convoys and in rescuing mariners from sunken ships.

US Naval vessels only sank about 38 U-boats. Coast Guard cutters and Coast Guard manned Navy ships were involved in sinking a disproportionate number of those (ten) for various reasons. Most of the US Navy effort went into the Pacific and most of the USN effort in the Atlantic at least through mid-1943, was in escorting high speed troop convoys than largely avoided contact with U-boats.

Circumstances we will face in any near peer conflict may be very different.

The advantages provided by code breaking in WWII are unlikely.

The advantages provided by radar equipped aircraft detecting U-boats charging their batteries or transiting the Bay of Biscay on the surface during the night no longer exists.

The Chinese surface and air threat would divert the most capable USN assets from ASW tasks.

Unlike the Japanese during the Pacific campaign, the Chinese are likely to make a concerted effort to disrupt our logistics train.

We simply do not have enough ASW assets.

Augmenting Coast Guard cutters to allow them to provide ASW escort and rescue services for ships that are sunk by hostile subs, in lower threat areas, is a low cost mobilization option that can substantially increase the number of escorts at low cost.

This could be facilitated by augmenting cutter with USN Reserves. Navy reserve ASW helicopter squadrons could be assigned to fly from cutters.
LCS ASW modules could be placed on cutters and manned by reactivated Navy reservists with LCS ASW module experience.

Our few US merchant ships need to be protected and when inevitably, some are sunk, we need someone to rescue those mariners, because they have become a rare and precious commodity.

The crews of the Coast Guard Cutters Midgett (WMSL 757) and Kimball (WMSL 756) transit past Koko Head on Oahu, Hawaii, Aug. 16, 2019. The Kimball and Midgett are both homeported in Honolulu and two of the newest Coast Guard cutters to join the fleet. (U.S. Coast Guard photo by Petty Officer 3rd Class Matthew West/Released)


In answer to this comment from James M

Add : For (millions)

ASIST : 6.263
Mk 32 SVTT : 3.237
SLQ-25 Nixie: 1.727
AN/SRQ-4 LAMPS III: 4.625
VDS/MFTA combo: 14.802
ASW Combat Suite: 33.684
64.338 total. I am sure something could be arrived at for less. I look at this as what it takes to fit out an NSC the whole way. For one, OPC will never fit that VDS/MFTA on its stern. At best it would be a Nixie, maybe a container towed sonar we don’t yet use, and the mods for MH-60R. It would be good to know the plan for MUSV as it might help the equation. After all, the 64.338 would buy 2 MUSVs without payload. It could also buy an additional FRC.

So, we could equip ASW equip all eleven projected Bertholf class National Security Cutters (NSC) for less than the cost of a single frigate.

Why do you believe the VDS/MFTA would not fit on the Offshore Patrol Cutter? It is fully as large as the NSCs and does not have the boat launch ramp cut into the stern. They are also substantially larger than the LCSs.

OPC “Placemat”

“Coast Guard Cutter Procurement: Background and Issues for Congress, Updated April 15, 2020” –CRS

The Congressional Research Service (CRS) has again updated their “Coast Guard Cutter Procurement: Background and Issues for Congress.” The last updated edition of this analysis, that I reported on here, was dated 28 Jan. 2020. The FY2021 PC&I request includes funding for OPC#3 and long lead time material for #4, plus small amounts for the NSC and FRC program. Not addressed here is the second Polar Security Cutter for which funding is also requested, addressed in a separate CRS report. There is a good breakdown of the entire request for vessels here.

As noted earlier, eight Marine Protector class, 87 foot WPBs are to be decommissioned without replacement.

Congress has routinely added Webber class Fast Response Cutters to previous budgets. I have to believe the Congress will fund four additional FRCs, if not in FY2021 then in 2022, so that we can ccomplete the program of record and replace all six Island class WPBs of PATFORSWA. A 12th NSC seems much less likely, but not impossible. The summary for the 15 April edition is quoted below.

Summary

The Coast Guard’s program of record (POR) calls for procuring 8 National Security Cutters (NSCs), 25 Offshore Patrol Cutters (OPCs), and 58 Fast Response Cutters (FRCs) as replacements for 90 aging Coast Guard high-endurance cutters, medium-endurance cutters, and patrol craft. The Coast Guard’s proposed FY2021 budget requests a total of $597 million in procurement funding for the NSC, OPC, and FRC programs. It also proposes a rescission of $70 million in FY2020 procurement funding that Congress provided for the NSC program.

NSCs are the Coast Guard’s largest and most capable general-purpose cutters; they are replacing the Coast Guard’s 12 Hamilton-class high-endurance cutters. NSCs have an estimated average procurement cost of about $670 million per ship. Although the Coast Guard’s POR calls for procuring 8 NSCs to replace the 12 Hamilton-class cutters, Congress through FY2020 has fully funded 11 NSCs, including the 10th and 11th in FY2018. In FY2020, Congress provided $100.5 million for procurement of long lead time materials (LLTM) for a 12th NSC, so as to preserve the option of procuring a 12th NSC while the Coast Guard evaluates its future needs. The funding can be used for procuring LLTM for a 12th NSC if the Coast Guard determines it is needed. The Coast Guard’s proposed FY2021 budget requests $31 million in procurement funding for activities within the NSC program; this request does not include further funding for a 12th NSC. The Coast Guard’s proposed FY2021 budget also proposes a rescission of $70 million of the $100.5 million that Congress provided for a 12th NSC, with the intent of reprogramming that funding to the Coast Guard’s Polar Security Cutter (PSC) program. Eight NSCs have entered service; the seventh and eighth were commissioned into service on August 24, 2019. The 9th through 11th are under construction; the 9th is scheduled for delivery in 2020.

OPCs are to be less expensive and in some respects less capable than NSCs; they are intended to replace the Coast Guard’s 29 aged medium-endurance cutters. Coast Guard officials describe the OPC and PSC programs as the service’s highest acquisition priorities. OPCs have an estimated average procurement cost of about $411 million per ship. The first OPC was funded in FY2018. The Coast Guard’s proposed FY2021 budget requests $546 million in procurement funding for the third OPC, LLTM for the fourth, and other program costs. On October 11, 2019, the Department of Homeland Security (DHS), of which the Coast Guard is a part, announced that DHS had granted extraordinary contractual relief to Eastern Shipbuilding Group (ESG) of Panama City, FL, the builder of the first four OPCs, under P.L. 85-804 as amended (50 U.S.C. 1431-1435), a law that authorizes certain federal agencies to provide certain types of extraordinary relief to contractors who are encountering difficulties in the performance of federal contracts or subcontracts relating to national defense. ESG reportedly submitted a request for extraordinary relief on June 30, 2019, after ESG’s shipbuilding facilities were damaged by Hurricane Michael, which passed through the Florida panhandle on October 10, 2018. The Coast Guard intends to hold a competition for a contract to build OPCs 5 through 15.

FRCs are considerably smaller and less expensive than OPCs; they are intended to replace the Coast Guard’s 49 aging Island-class patrol boats. FRCs have an estimated average procurement cost of about $65 million per boat. A total of 60 have been funded through FY2020, including four in FY2020. Four of the 60 are to be used by the Coast Guard in the Persian Gulf and are not counted against the Coast Guard’s 58-ship POR for the program, which relates to domestic operations. Excluding these four FRCs, 56 FRCs for domestic operations have been funded through FY2020. The 36th FRC was commissioned into service on January 10, 2020. The Coast Guard’s proposed FY2021 budget requests $20 million in procurement funding for the FRC program; this request does not include funding for any additional FRCs.

“Coast Guard Polar Security Cutter (Polar Icebreaker) Program: Background and Issues for Congress” Updated 12 March, 2020, CRS

The Congressional Research Service has once again updated their report on the Polar Security Cutter. You can see the whole report here. I have reproduced the one page summary below. The entire report is a 63 page pdf.

Summary

The Coast Guard Polar Security Cutter (PSC) program is a program to acquire three new PSCs (i.e., heavy polar icebreakers), to be followed years from now by the acquisition of up to three new medium polar icebreakers. The PSC program has received a total of $1,169.6 million (i.e., about $1.2 billion) in procurement funding through FY2020, including $135 million in FY2020, which was $100 million more than the $35 million that the Coast Guard had requested for FY2020. With the funding it has received through FY2020, the first PSC is now fully funded and the second PSC has received initial funding.

The Coast Guard’s proposed FY2021 budget requests $555 million in procurement funding for the PSC program. It also proposes a rescission of $70 million in FY2020 funding that Congress had provided for the procurement of long lead time materials (LLTM) for a 12th National Security Cutter (NSC), with the intent of reprogramming that funding to the PSC program. The Coast Guard states that its proposed FY2021 budget, if approved by Congress, would fully fund the second PSC.

The Coast Guard estimates the total procurement costs of the three PSCs as $1,039 million (i.e., about $1.0 billion) for the first ship, $792 million for the second ship, and $788 million for the third ship, for a combined estimated cost of $2,619 million (i.e., about $2.6 billion). Within those figures, the shipbuilder’s portion of the total procurement cost is $746 million for the first ship, $544 million for the second ship, and $535 million for the third ship, for a combined estimated shipbuilder’s cost of $1,825 million (i.e., about $1.8 billion).

On April 23, 2019, the Coast Guard-Navy Integrated Program Office for the PSC program awarded a $745.9 million fixed-price, incentive-firm contract for the detail design and construction (DD&C) of the first PSC to VT Halter Marine of Pascagoula, MS, a shipyard owned by Singapore Technologies (ST) Engineering. VT Halter was the leader of one of three industry teams that competed for the DD&C contract. The first PSC is scheduled to begin construction in 2021 and be delivered in 2024, though the DD&C contract includes financial incentives for earlier delivery.

The DD&C contract includes options for building the second and third PSCs. If these options are exercised, the total value of the contract would increase to $1,942.8 million (i.e., about $1.9 billion). The figures of $745.9 million and $1,942.8 million cover only the shipbuilder’s costs; they do not include the cost of government-furnished equipment (GFE), which is equipment for the ships that the government purchases and then provides to the shipbuilder for incorporation into the ship, or government program-management costs. When GFE and government programmanagement costs are included, the total estimated procurement cost of the first PSC is between $925 million and $940 million, and the total estimated procurement cost of the three-ship PSC program is about $2.95 billion.

The operational U.S. polar icebreaking fleet currently consists of one heavy polar icebreaker, Polar Star, and one medium polar icebreaker, Healy. In addition to Polar Star, the Coast Guard has a second heavy polar icebreaker, Polar Sea. Polar Sea, however, suffered an engine casualty in June 2010 and has been nonoperational since then. Polar Star and Polar Sea entered service in 1976 and 1978, respectively, and are now well beyond their originally intended 30-year service lives. The Coast Guard plans to extend the service life of Polar Star until the delivery of at least the second PSC. The Coast Guard is using Polar Sea as a source of spare parts for keeping Polar Star operational.

Polar Sea Sails for McMurdo, and We Need Six PSC

Below is quoted a press release about the departure of the Polar Star for the annual McMurdo resupply mission.

I may be reading too much into this, but the paragraph regarding the Polar Security Cutter program seems to represent a change from previous pronouncements.

The Coast Guard … is seeking to increase its icebreaking fleet with six new polar security cutters in order to ensure continued national presence and access to the Polar Regions.

The same message is now on the Acquisitions Directorate Polar Security Cutter page, “The Coast Guard needs six new PSCs to ensure national year-round access to the polar regions and to provide self-rescue capability.”

The High Latitude study that the number six was based upon, said the Coast Guard needed three heavy icebreakers and three medium icebreakers. The heavy icebreaker became the Polar Security Program. Are medium icebreakers also being called Polar Security Cutters? It does not seem so. There is no mention of this second type.

There is logic to simply building only a single class. It would save the development costs of a new, second class. The cost of the PSC is less than originally estimated and with the cost potentially dropping as the shipyard continues the learning curve with each new ship, building three less capable ship may not save much. Having instead six of the more capable ships would increase flexibility, and commonality pays dividends in logistics and training. Six more capable ship could allow a Northern Hemisphere winter deployment of two ships to McMurdo, while a second pair of ships could alternate, one on patrol in the Arctic, and the other on standby in Seattle, while a third pair are in the yard for maintenance to be ready for deployment during summer months.

Of course for any mission requiring an icebreaker, a heavy icebreaker Is more likely to get there quicker and be capable of doing more than a smaller ship when it gets there.

The Press Release

united states coast guard

News Release

Nov. 26, 2019
U.S. Coast Guard Pacific Area
Contact: Coast Guard Pacific Area Public Affairs
Office: (510) 437-3319
After Hours: (510) 333-6297
D11-DG-M-PACAREA-PA@uscg.mil
Pacific Area online newsroom

Nation’s only heavy icebreaker departs for Antarctic military operation

Coast Guard Cutter Polar Star Departs Seattle for Operation Deep Freeze 2020
USCGC Polar Star crew departs Seattle for Operation Deep Freeze 2020 https://www.dvidshub.net/image/5941169/uscgc-polar-star-crew-departs-seattle-operation-deep-freeze-2020 USCGC Polar Star crew departs Seattle for Operation Deep Freeze 2020

Editors’ Note: Click on images to download high resolution version.

SEATTLE — The crew aboard the U.S. Coast Guard Cutter Polar Star (WAGB 10) departed Tuesday commencing their annual deployment to Antarctica where the cutter and crew will support Operation Deep Freeze 2020, a joint military service mission to resupply U.S. interests in Antarctica.

“We set out today on an important mission, saying goodbye to the friends and families who have supported us and our ship for the past seven-months since we returned from Operation Deep Freeze 2019,” said Capt. Gregory Stanclik, commanding officer of the Polar Star. “We are looking forward to this year’s mission to McMurdo Station with a ship that is running the best it has since reactivation. This mission is critical to the United States and our continued strategic presence on the Antarctic Continent and I have the best crew possible to ensure we safely accomplish our goal.”

Homeported in Seattle, the 43-year-old Coast Guard cutter is the United States’ last remaining operational heavy icebreaker. This is the cutter’s seventh deployment in as many years to directly support the resupply of McMurdo Station – the United States’ main logistics hub in Antarctica.

Each year, the crew aboard the 399-foot, 13,000-ton Polar Star create a navigable path through seasonal and multi-year ice, sometimes as much as 21-feet thick, to allow a resupply vessel to reach McMurdo Station. The supply delivery allows Antarctic stations to stay operational year-round, including during the dark and tumultuous winter.

Commissioned in 1976, the Polar Star is showing its age. Reserved for Operation Deep Freeze each year, the Polar Star spends the winter breaking ice near Antarctica, and when the mission is complete, the cutter returns to dry dock in order to complete critical maintenance and repairs in preparation for the next Operation Deep Freeze mission.

The Coast Guard has been the sole provider of the nation’s polar icebreaking capability since 1965, and is seeking to increase its icebreaking fleet with six new polar security cutters in order to ensure continued national presence and access to the Polar Regions.

In the fiscal year 2019 budget, Congress appropriated $655 million to begin construction of a new polar security cutter this year, with another $20 million appropriated for long-lead-time materials to build a second.

The Coast Guard and U.S. Navy, working through an integrated program office, awarded VT Halter Marine Inc., a fixed price incentive contract in April for the detail design and construction of the Coast Guard’s lead polar security cutter, including options for the construction of two additional PSCs.

“The Coast Guard greatly appreciates the strong support from both the Administration and Congress for funding the polar security cutter program,” said Adm. Karl Schultz, the commandant of the Coast Guard. “These new cutters are absolutely vital to achieving our national strategic objectives in the Polar Regions – presence equals influence, and we must be present to meet the Nation’s national security and economic needs there in the future.”

“Coast Guard Polar Security Cutter (Polar Icebreaker) Program: Background and Issues for Congress” CRS, an even newer version

I am a bit embarrassed to admit, I have been behind on this subject. My post from Saturday, linked the 19 September version of the report, but there was already a more recent version, dated 4 October. You can see it here

The significant change in this edition is the addition of the new section at the top of page 15. (This new section reflects the questions Tups has raised here earlier.)

“Parent Design and PSC Design

“One potential aspect of the issue of technical, schedule, and cost risk in the PSC program relates to the parent design for the PSC design. As mentioned earlier, a key aim in using the parent design approach is to reduce cost, schedule, and technical risk in the PSC program. As also mentioned earlier, VT Halter states that its winning design for the PSC “is an evolution from the mature ‘Polar Stern II’ [German icebreaker] currently in design and construction; the team has worked rigorously to demonstrate its maturity and reliability.” As also mentioned earlier, VT Halter and ship designer Technology Associates, Inc. reportedly made “a lot of modifications” and went through six design spirals to refine the PSC’s design. Potential oversight questions for Congress include the following:

  • “To what degree was Polarstern II’s design a completed and proven design at the time it was used as the parent design for developing the PSC design? How much of Polarstern II’s detail design and construction plan was completed at that time? When did Polarstern II begin construction, and when is the ship scheduled to complete construction and undergo sea trials to confirm the ship’s design and operational characteristics?
  • “How closely related is the PSC’s design to Polarstern II’s design? How many changes were made to Polarstern II’s design to develop the PSC design? What were these changes, and what technical, schedule, and cost risks, if any, might arise from them?”

“Coast Guard Polar Security Cutter (Polar Icebreaker) Program: Background and Issues for Congress” –CRS

19 September, the Congressional Research Service has issued an update to its “Coast Guard Polar Security Cutter (Icebreaker) Program: Background and Issues for Congress” replacing an edition published on eight days earlier. You can see the latest version here. The only significant changes I see in the latest edition is reflected in table C-1 to include future year PSC funding though FY2024 and table C-2 that provides projected Procurement, Construction and Improvements (PC&I) funding through FY2024. Notably these PC&I projections are well below the $2B annually that the Coast Guard has been saying they need.

Projected PC&I totals by FY are:

  • 2020: $1,234.7M
  • 2021: $1,679.8M
  • 2022: $1,555.5M
  • 2023: $1,698.5M
  • 2024: $1,737.0M

You can track the changes made between consecutive editions here.

Seattle to be Homeport for Polar Security Cutter

Not surprisingly the Coast Guard has announced that Seattle is the planned homeport for the new Polar Security Cutter (heavy polar icebreaker). Below is the press release.

U.S. Coast Guard announces homeport of newest Polar Security Cutter

WASHINGTON – The U.S. Coast Guard today announced that Seattle, Wash. will be the home of the service’s new Polar Security Cutters.

“I am pleased to announce that Seattle, Washington will be the home of the Coast Guard’s new Polar Security Cutters,” said Admiral Karl L. Schultz, Commandant of the U.S. Coast Guard.  “The Pacific Northwest has been the home of our icebreaking fleet since 1976, and I am confident that the Seattle area will continue to provide the support we need to carry out our critical operations in the polar regions.”

The U.S. Coast Guard is the nation’s lead agency responsible for providing assured surface access in the polar regions.  The addition of the Polar Security Cutters in Seattle will support the United States’ ability to conduct national missions, respond to critical events, and project American presence in the high latitudes.

The Coast Guard conducted a detailed analysis to identify locations that could accommodate the Polar Security Cutter. Based on operational and logistical needs, Seattle was determined to be the appropriate homeport for the first three Polar Security Cutters.

In April 2019, VT Halter Marine, Inc. of Pascagoula, Mississippi, was awarded a contract for the detail design and construction of the Coast Guard’s Polar Security Cutter class.

“Coast Guard Needs Congress for Budget Bailout” –National Defense

US Capital West Side, by Martin Falbisoner

National Defense reports that the Administration’s 2020 budget request makes deep cuts in the Coast Guard budget compared to recent years, but that there is a good chance Congress will make up at least some of the difference.

You can see a brief summary of the budget submission here.

We have Congress plus up the Coast Guard’s budget in the past, particularly in terms of increasing numbers of Webber class cutters funded. The 2020 budget includes only two. This is likely to be increased to four or even six.

Congress has also added three Bertholf class NSC to the program of record and there have been suggestions that a 12th is needed to fully replace the 378 foot WHECs. If we are to get a 12th NSC, it almost has to happen in FY2020 before we OPC construction goes to two per year and before we need to fund Polar Security Cutters 2-6.

The Commandant has been talking about maintenance backlogs recently. Unfortunately maintenance does not have the highly visible job creation impact of new construction, although the dollar for dollar impact may be as great. It seldom makes the evening news, so this may be a harder sell.



“Coast Guard Polar Security Cutter (Polar Icebreaker) Program: Background and Issues for Congress, Updated May 9, 2019”

The Congressional Research Service has updated their report on the Polar Security Cutter Program. This is the first revision since the award of the contract, so there are significant changes, including a section on the selected design found on pages 5-9.

“VT Halter releases more details of winning Polar Security Cutter design” –Marine Log

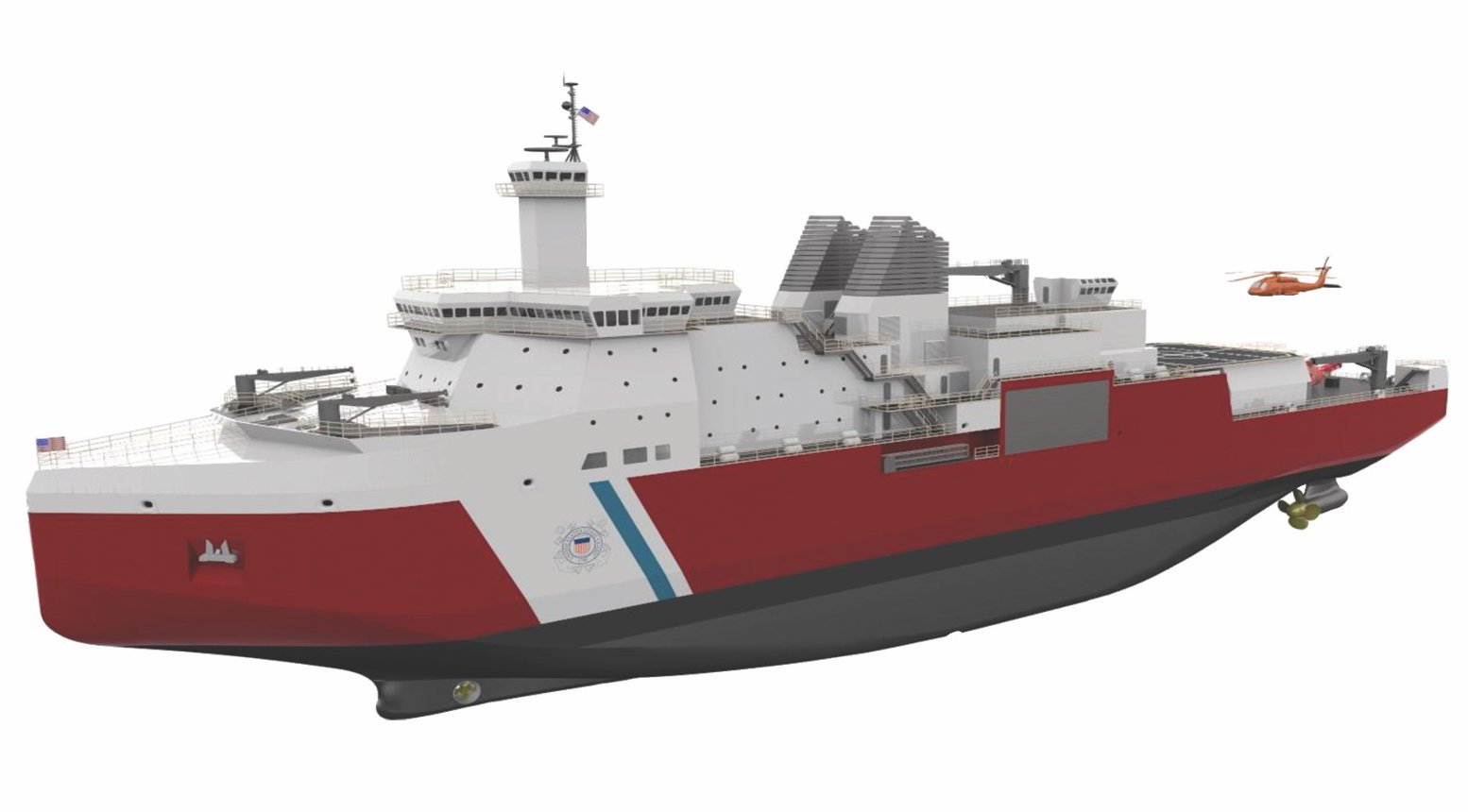

Marine Log provides some additional details on the specifications for the Polar Security Cutter (Heavy Polar Icebreaker) construction project, recently contracted to VT Halter.

Projected delivery dates, 2024, 2025, 2027.

  • Displacement, Full Load: 33,000 tons (later corrected to 22,900 tons–Chuck)
  • Length: 460 ft (140 meters)
  • Beam: 88 ft (26.8 meters)
  • HP: 45,200
  • Accommodations: 186
  • Endurance: 90 days

For comparison, USCGC Polar Star is:

  • Displacement: 13,623 long tons (13,842 t) (full)
  • Length: 399 ft (122 m)
  • Beam: 83 ft 6 in (25.45 m)
  • HP: (3 × 25,000 hp (19,000 kW))
  • Accommodations: 187

Thanks to Secundius for bringing this to my attention
