“Designing the New National Security Multi-Mission Vessel” for State Maritime Academies

MarineLink reports MARAD is planning a new class of ships to serve as training ships for the five State Maritime Academies (SMA). Additionally these ships are expected to be available to respond to Natural Disasters. The new design is being referred to as the National Security Multi-Mission Vessel (NSMV).

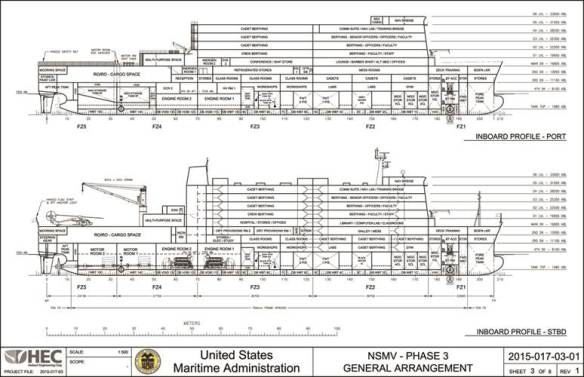

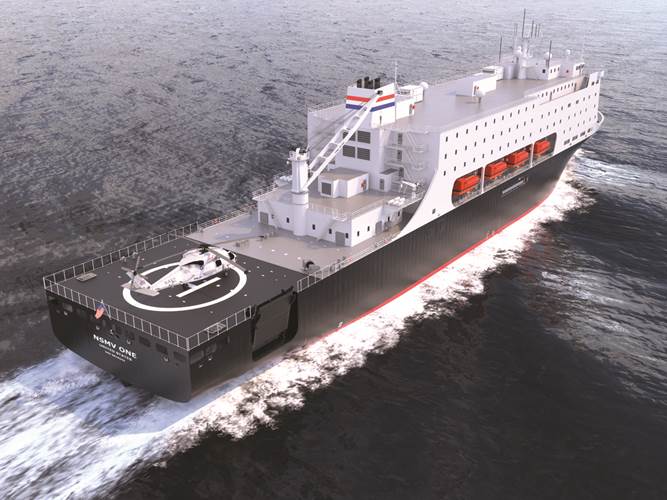

NSMMV Humanitarian Assistance Disaster Response facilities will be concentrated at the sternHerbert Engineering Corp (HEC) prepared a conceptual level design for the NSMV.

DESIGN PARTICULARS
Length o.a.: 159.85 m (524.5 ft.)
Beam: 27 m (88.6 ft.)
Draft: 6.5 m (21.4 ft.)
Design service speed: 8 knots/15% sea margin
Cruising Speed: 12 knots
Propulsion: Diesel Electric
Propulsion engines: 4 x Diesel Generators
Total installed Power: 15,680 kW
Propellers: 1 propeller, fixed pitch
Rudders: 1 flap type rudder on centerline
Fuel: Single fuel – marine gas oil (MGO), max Sulfur content 0.1%
Bow Thruster: retractable combi type – tunnel thruster in up position, azimuthing thruster in down position, “Take Home” source of power, 1450 kW
Stern Thruster: Tunnel type, 890 kW
Fuel Consumption: 60 tons/day @ 18 knots,  26 tons/day at 12 knots
Fresh Water (including sanitary water): 35 gal/day per person for 700 = 93 tons + 5 tons Ship Service FW = 98 tons/day
Fuel range: About 11,000 nm range @ 18 knots design speed with 10% remaining fuel
Food & Stores: 60 days food storage for 700 persons, 297 sq. m. (3,200 sq. ft.) reefer provisions,  240 sq. m. (2,580 sq. ft.) dry provisions
Propulsion motors: 2 x 4,500 kW propulsion motors. Motors in separate watertight compartments.
Electric Power: 6,600 V main power generation, 440 V ship service electric power, 120 V lighting and accommodations
RoRo deck: RoRo space aft with length of about 40 m (130 ft), width inside framing of 24 m (80 ft), clear height of at least 4.7 m (15.3 ft). Usable deck area is about 1,000 sq. m. (10,700 sq. ft.). Suitable for about 10 x 40 ft trailers with 26 autos or about 49 autos/light trucks.
Total container capacity: about 64 TEU for two high.
Crane: 1 x Jib Boom type with 35 MT SWL x 24 m outreach
RoRo ramp: 20 ft. wide watertight wide side ramp with 40 ton capacity

(Image: Herbert Engineering / MARAD)
